Dhyana XF
Vacuum-compatable open-front high-speed BSI sCMOS cameras for soft X-ray and EUV direct detection
- Standard CF Camera Flanges
- ~100% Peak QE @ 80-1000 eV
- 10⁻⁷ Pa Vacuum compatbility
- 2Kx2K, 4Kx4K, 6Kx6K Resolution
- CameraLink & USB 3.0
Overview
The Dhyana XF are a series of fully in-vacuum, high-speed, cooled sCMOS cameras which utilize various back-illuminated sensors without anti-reflection coating for soft X-ray and EUV direct detection. With a high-vacuum-seal design and vacuum-compatible materials make these cameras well suited for UHV applications.
-

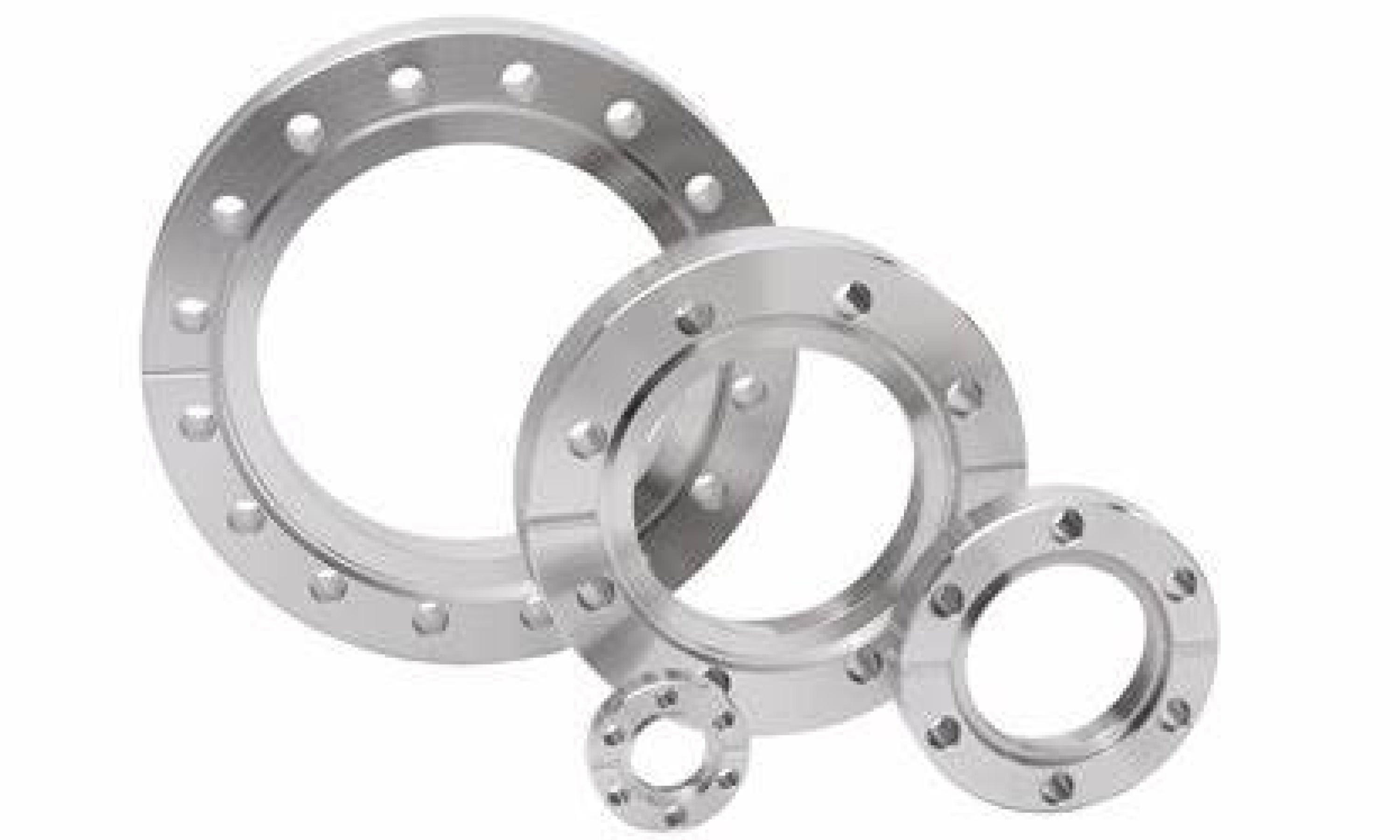

Rotatable Flange Design
The rotatable flange design offered by the Dhyana XF delivers flexibility to align sCMOS x-axis to the image or spectral axis; zero pixel starting point marked on the camera as well. What's more, custmization of flange and sensor postion is possible.
-

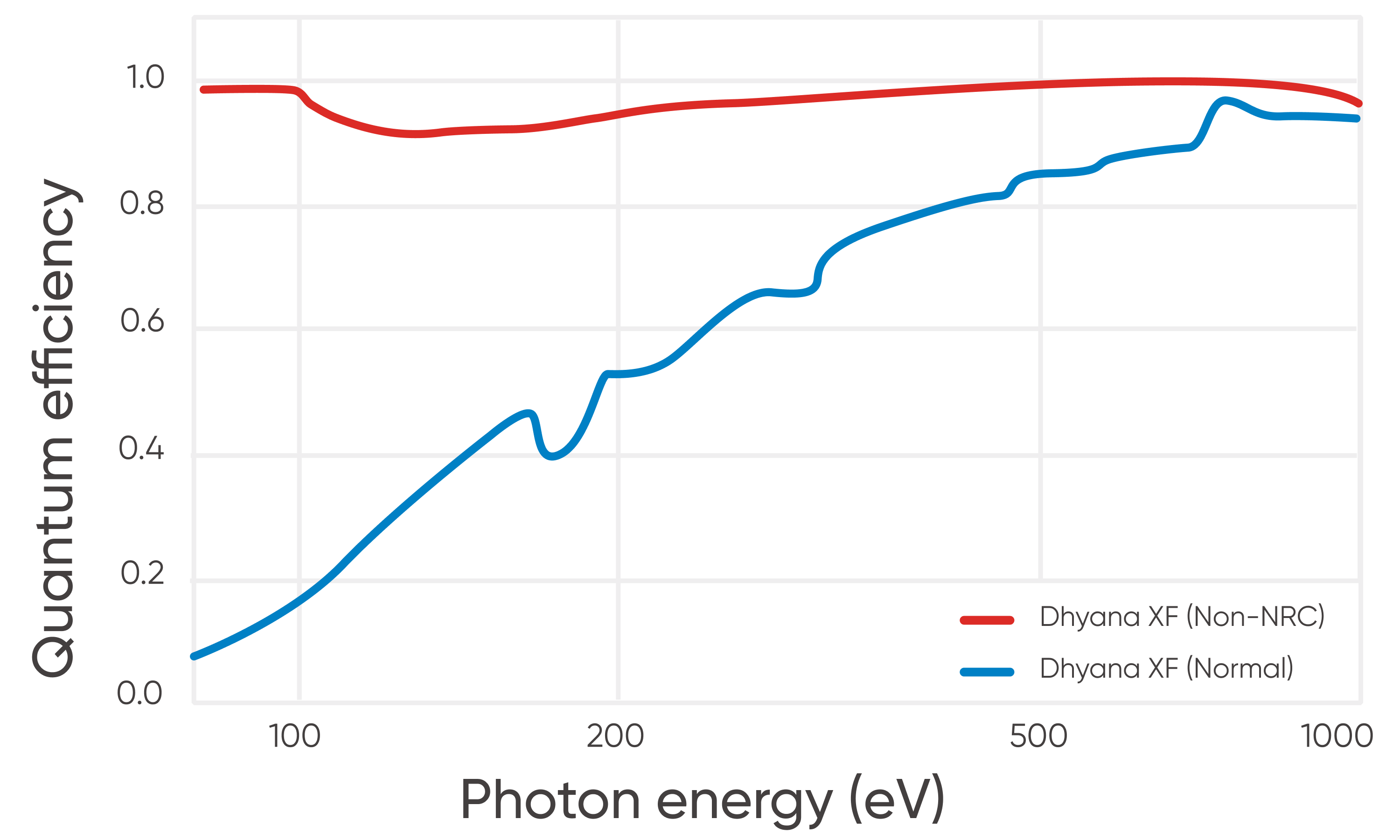

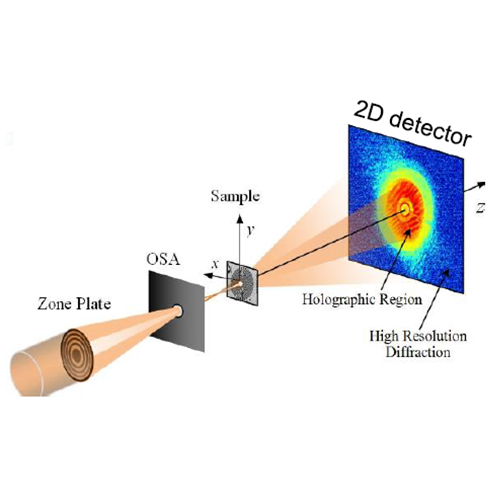

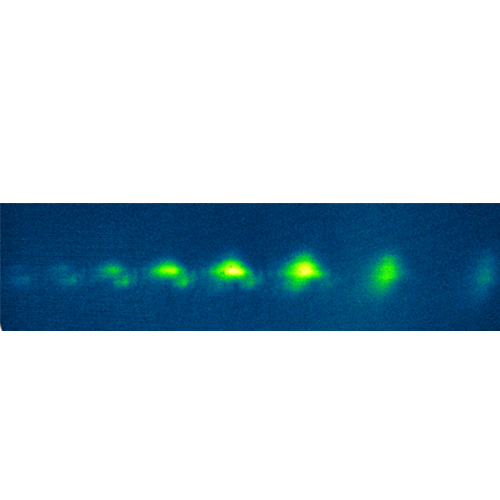

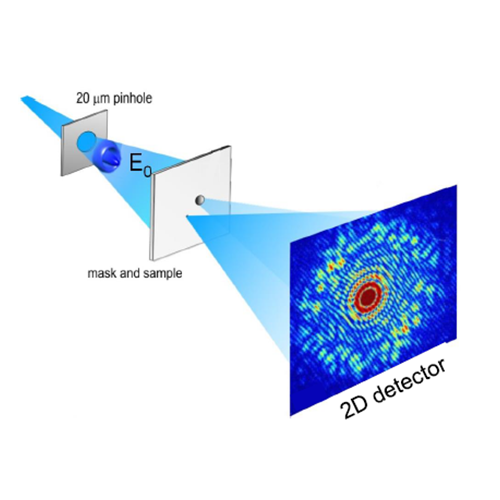

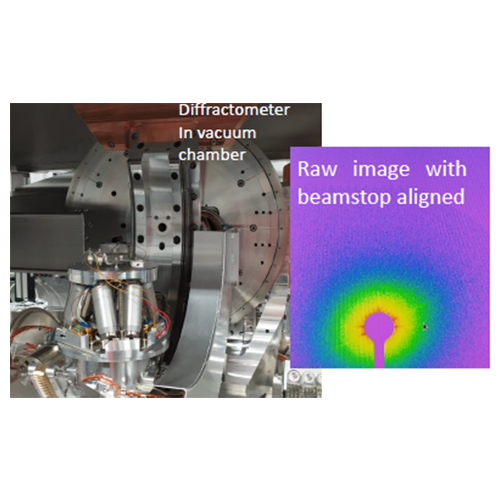

Soft X-ray Energy Sensitivity
New generation back-illuminated sCMOS sensors without antireflective coating, extend the camera capability to detect vacuum ultra violet (VUV) light, extreme ultra violet (EUV) light and soft x-ray photons with quantum efficiency approaching 100%. In addition, the sensor demonstrates excellent resistance to radiation damage in soft x-ray detection applications.
-

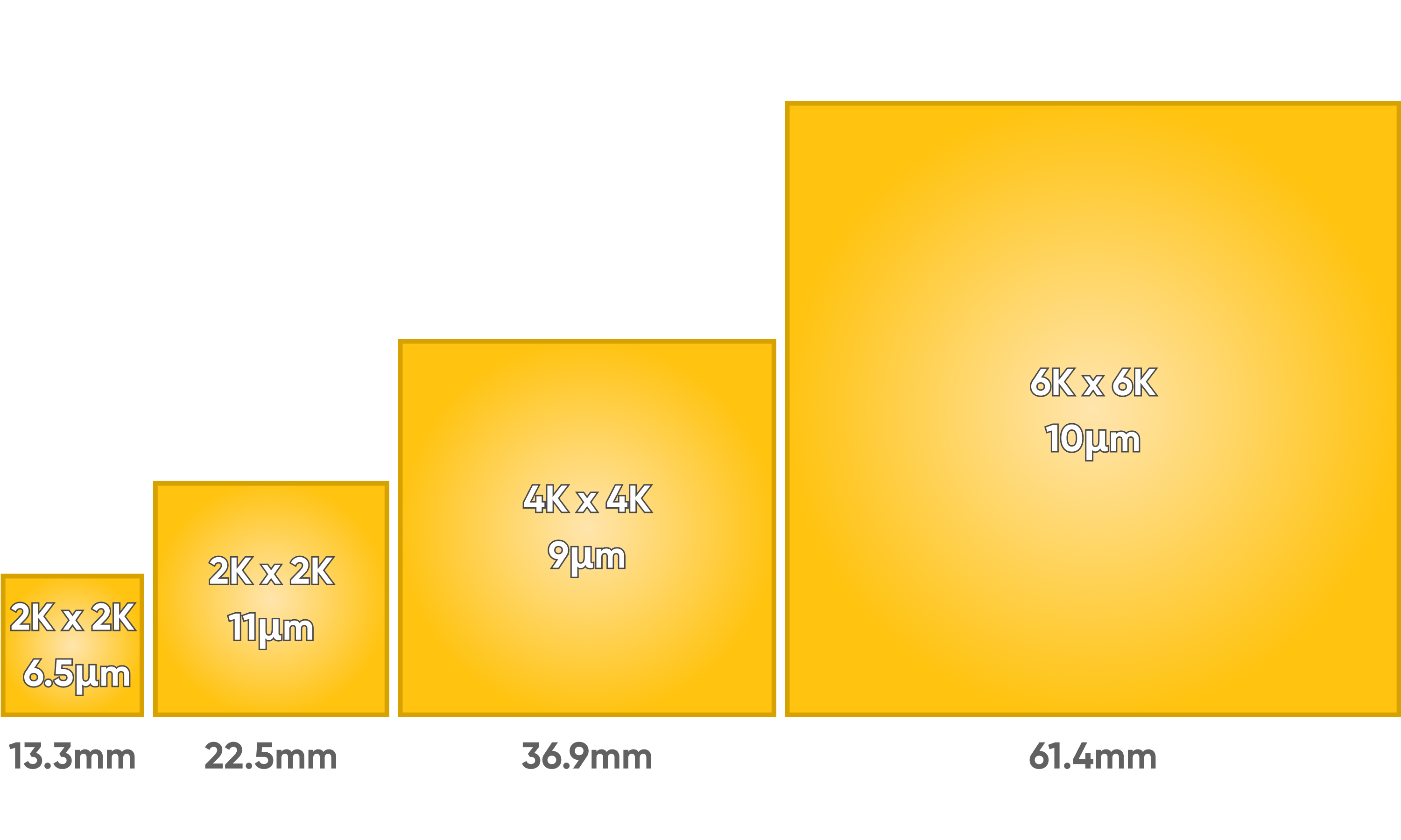

Varies Format Sensor Options
Based on the same hardware platform, The Dhyana XF series has a range of back-illuminated sCMOS sensors with different resolutions and pixel sizes 2Kx2K, 4Kx4K, 6Kx6K.
-

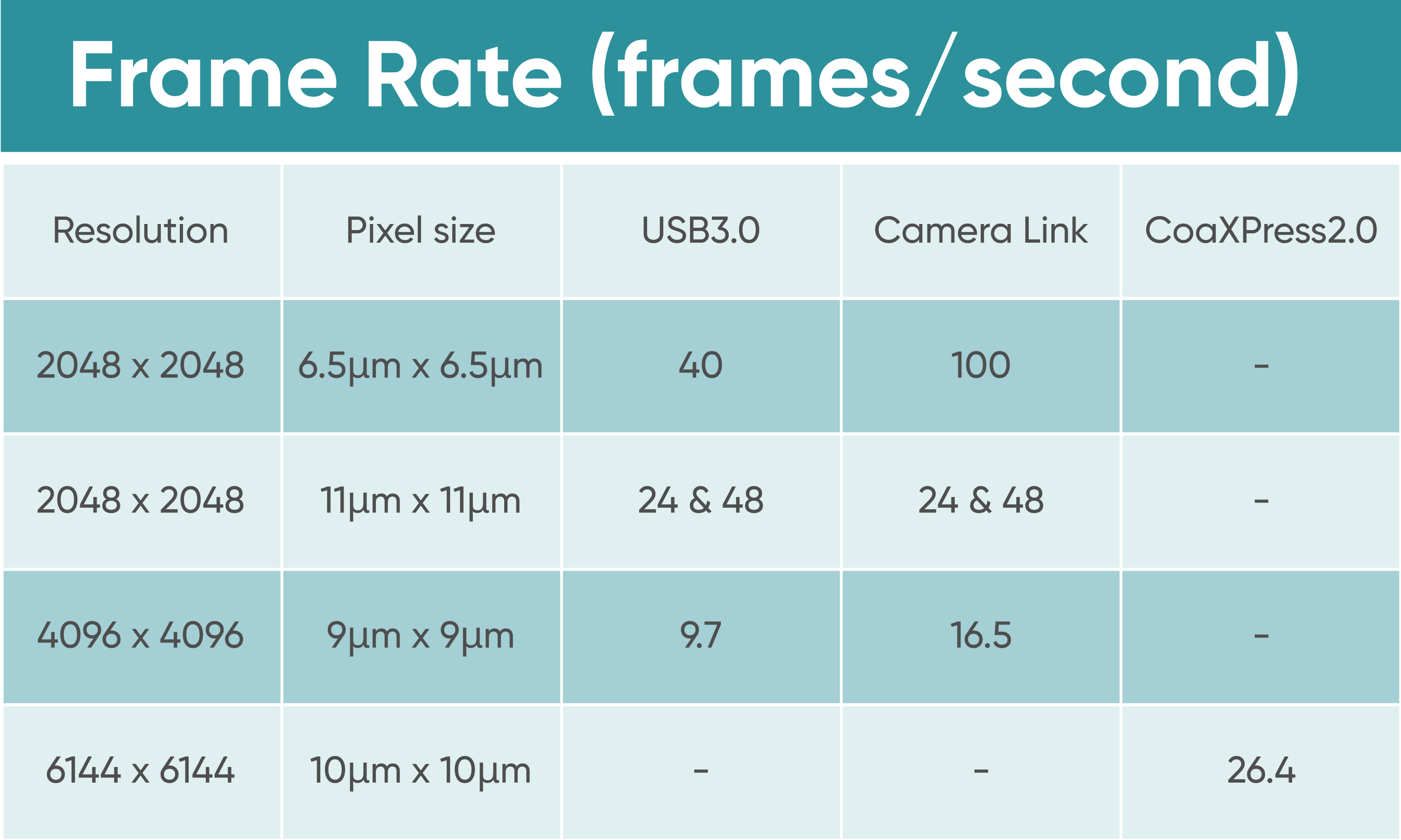

High Frame Rate
Compared with conventional CCD cameras used in this market, the new sCMOS provides more than 10x higher readout speed via high-speed data interface which means saving much more time during the image acquisition.
Specification >
- Model: Dhyana XF
- Sensor Type: BSI sCMOS
- Sensor Model: non anti-reflection coating
- Peak QE: ~100%
- Spectral Range: 80~1000eV, 200~1100nm
- Pixel Size: 6.5 x 6.5 μm/11 x 11 μm, 9 x 9 μm, 10 x 10 μm
- Resolution: 2048x2048, 4096x4096, 6144x6144
- Array Diagonal: 1.2 inch/2 inch, 3.2 inch, 5.4 inch
- Effective area: 13.3x 13.3 mm/22.5 x 22.5 mm, 36.9 x36.9 mm, 61.4 x 61.4 mm
- Shutter: Rolling
- Cooling Method: Water cooling, Air cooling
- Cooling Temperature: Below ambient temperature 70°C (Max)
- Vacuum Compatibility: 10⁻7 Pa (Max)
- Trigger Mode: Hardware trigger, Software trigger
- Output Trigger Signals: Exposure start, readout, high level, low level
- Trigger Interface: SMA
- Data Interface: CameraLink/USB3.0, CoaxPress 2.0 for 6Kx6K
- Flange Size: DN100CF/DN160CF/Customization
- Software: Mosaic, Samplepro, LabView, Matlab
- SDK: C,C++,C#
- Operating System: Windows, Linux
- Operating Environment: Temperature 0~40°C, Humidity 10~85%
