How Microlenses and Fill Factor Improve Light Collection?

In image sensors, not all incoming light becomes usable signal. What matters is not only how much light reaches the sensor surface, but how efficiently that light is delivered to the active sensing region of each pixel and converted into charge.

Two key factors in this process are fill factor, which defines how much of the pixel is effectively available for photon capture, and the microlens, which helps steer incoming light into that region. Understanding how these two features work together helps explain differences in quantum efficiency (QE), sensitivity, and low-light performance across sensor architectures.

What Does Light Collection Efficiency Mean in an Image Sensor?

Light collection efficiency in an image sensor is not simply a measure of how much light falls onto the sensor surface. A more useful question is how much of that light actually reaches the active sensing region of the pixel and contributes to signal generation.

This distinction matters because a pixel is not a completely open, uniformly light-sensitive structure. In addition to the photodiode, each pixel also contains transistors, metal wiring, and other elements required for control and readout. These structures are essential to pixel operation, but they also occupy space that cannot directly collect photons.

As a result, the geometric size of a pixel does not always reflect its effective light-sensitive area. Two pixels with similar dimensions may still differ in how efficiently they collect light, depending on how much of their area is truly available for photon capture and how well incoming light is guided into that region.

What Is Fill Factor?

Fill factor describes how much of a pixel is effectively available for detecting incoming light. Because not all of a pixel’s area is used for photon capture, fill factor plays an important role in determining how efficiently incident light can contribute to usable signal.

Fill Factor as the Effective Light-Sensitive Area

Fill factor describes the fraction of a pixel’s area that is effectively available for detecting incoming photons. In other words, it reflects how much of the pixel can directly contribute to light capture rather than supporting circuitry or signal routing.

This makes fill factor a more meaningful concept than pixel size alone when discussing light collection. A large pixel does not automatically provide strong photon collection if a substantial portion of its area is occupied by non-sensitive structures.

Why Fill Factor Matters for Signal Generation

Only photons that reach the active sensing region can contribute to charge generation. If a significant portion of the pixel is covered by wiring, circuitry, or other structural elements, fewer incoming photons will be delivered to the region where signal is formed.

For this reason, fill factor is closely related to achievable light collection efficiency. In front-illuminated sensors, where upper-layer structures can obstruct the optical path, fill factor can become an important limiting factor in how effectively light is converted into usable signal.

Why Pixel Size Alone Does Not Tell the Full Story

What Does a Microlens Do in a Pixel?

Microlenses are transparent polymer lenses positioned above individual pixels. Their role is not to detect light directly, but to improve how efficiently incoming photons are delivered to the light-sensitive region below.

Guiding Light Toward the Active Region

The most basic function of a microlens is to steer incoming photons toward the active sensing region of the pixel. Instead of allowing light to fall more randomly across the pixel surface, the microlens helps direct it into the area where signal generation takes place.

This improves photon delivery efficiency and increases the likelihood that incident light will contribute to usable signal.

Compensating for Wiring and Structural Obstruction

In many front-illuminated pixel designs, part of the pixel area is occupied by metal wiring, circuitry, and other structures needed for control and readout. These elements reduce how much of the pixel is directly open to light.

Microlenses help compensate for this limitation by redirecting incoming lightaway from less useful regions and toward the active sensing area. In this way, they can effectively improve light collection behavior even when the physical fill factor is constrained by pixel layout.

Why Microlenses Matter More in Small Pixels

As pixel dimensions shrink, efficient light guidance becomes more important. Smaller pixels leave less room for losses caused by structural obstruction or imperfect photon delivery, so even modest improvements in optical guidance can have a meaningful effect on usable signal.

How Microlenses and Fill Factor Work Together?

Fill factor and microlenses are closely related, but they are not the same thing. Fill factor describes how much of the pixel is effectively available for light detection, while the microlens helps more of the incoming light reach that available region.

Fill Factor Defines the Available Light-Sensitive Area

Fill factor sets the baseline for how much of a pixel can directly contribute to photon capture. If only part of the pixel area is effectively light-sensitive, then only that portion can generate signal when photons arrive.

This means fill factor defines the available target area for light collection. It helps explain why pixels of similar size may still differ in usable sensitivity and photon collection efficiency.

Microlenses Improve Photon Delivery to That Area

A microlens does not replace fill factor or eliminate the structural limitations within the pixel. Instead, it improves how incoming light is distributed across the pixel so that more photons reach the light-sensitive region that is already available.

In practical terms, fill factor determines how much active area the pixel has, while the microlens helps ensure that more incident light is directed into that area. This is why microlenses can effectively increase the light-collection benefit of a given pixel design.

Optimization Depends on Cooperation, Not on a Single Feature

Light collection optimization is not determined by fill factor alone or by microlens design alone. A well-designed pixel depends on both: the internal layout preserves as much effective sensing area as possible, and the microlens improves photon delivery into that region.

Their combined effect helps explain why modern sensors can achieve stronger light collection performance even when pixel layouts remain structurally complex. It also helps explain why two sensors with similar geometric specifications may still differ in quantum efficiency, sensitivity, and low-light behavior.

How Light Collection Optimization Affects Sensor Performance?

Light collection optimization affects how efficiently incident photons become usable signal. At the sensor level, this influences several key performance characteristics.

● QE: Better photon delivery increases the likelihood that incident light reaches the sensing region and is converted into electrons. In this way, microlenses and effective fill factor both support stronger QE.

● Sensitivity: When more photons are directed into the active area of the pixel, the sensor can generate stronger usable signal under the same illumination conditions. This improves overall light response, especially when photon budgets are limited.

● Low-Light and Weak-Signal Imaging: In low-light applications, losses in photon delivery matter more because the available signal is already limited. Improving light collection at the pixel level helps preserve more of that signal.

Why This Matters in Scientific Imaging?

In scientific imaging, signal is often limited, and small differences in photon delivery can have a meaningful impact on image quality and measurement reliability.

● Weak signals leave less room for loss: In photon-limited applications, light that fails to reach the active sensing region cannot be recovered later in the signal chain.

● Usable sensitivity depends on more than pixel size: Sensors with similar pixel dimensions may still differ in practical low-light performance because their effective light collection is shaped by fill factor and microlens design.

● Pixel-level efficiency supports measurement quality: Better light collection helps strengthen the signal before readout and processing begin, which is especially important in measurement-focused imaging.

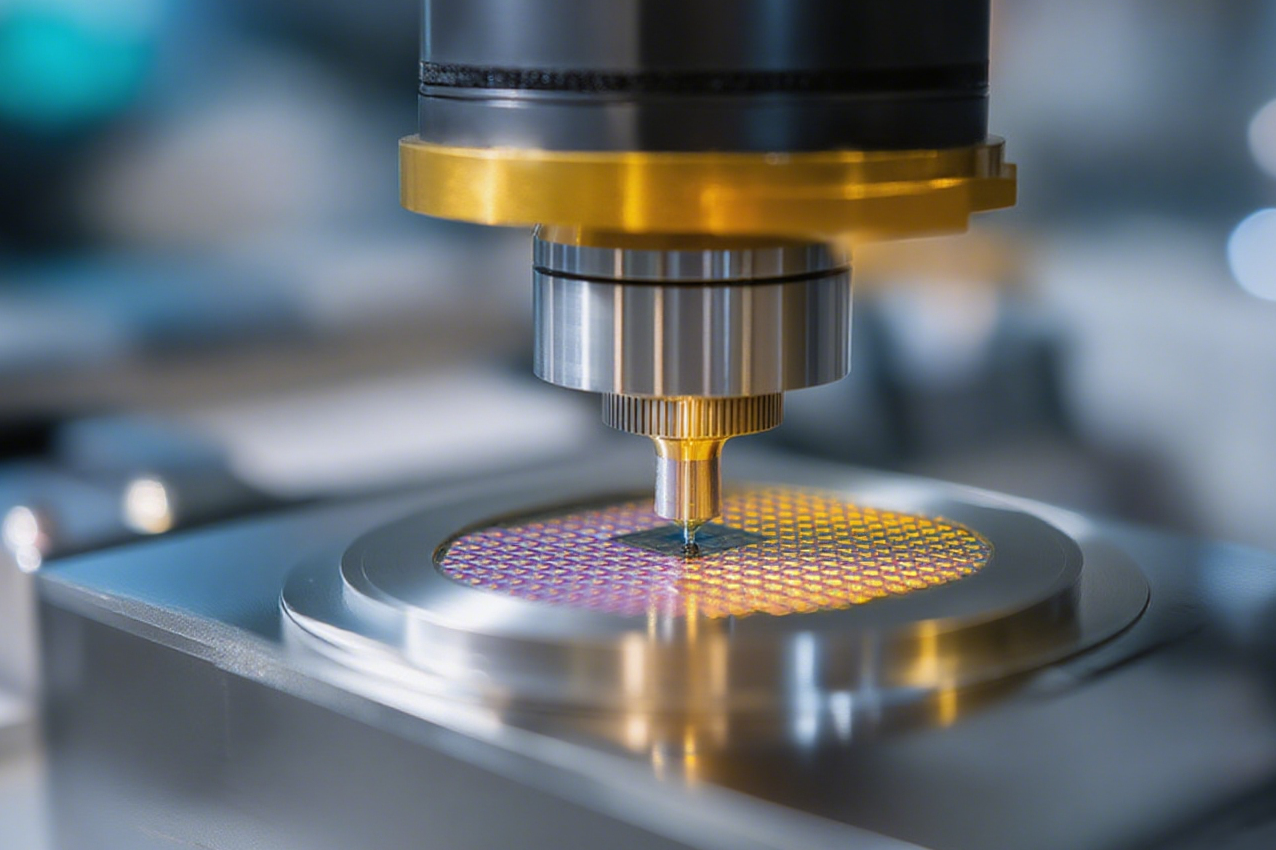

This is also relevant in Semiconductor Inspection, where imaging performance depends not only on resolution and speed, but also on how efficiently weak or low-contrast optical signals are collected at the pixel level.

How to Read These Concepts in a Camera Datasheet?

Understanding microlenses and fill factor helps turn datasheet values into a more complete picture of sensor behavior.

● Pixel size is not a complete measure of light collection: A larger pixel may offer more area in principle, but usable light collection also depends on how much of that area is effectively light-sensitive and how efficiently light is guided into it.

● QE reflects structure as well as conversion: Quantum efficiency is influenced not only by photon-to-electron conversion in the sensing region, but also by how effectively photons reach that region in the first place.

● Similar headline specifications may hide structural differences: Two sensors may appear close in pixel size or resolution, yet still differ in low-light performance because their pixel-level light collection is not equally optimized.

Conclusion

Light collection efficiency begins at the pixel level. Fill factor defines how much of the pixel is effectively available for photon capture, while the microlens helps direct more incoming light into that region.

Together, these two factors play an important role in how efficiently light becomes usable signal. For users working with scientific cameras, understanding this relationship provides a clearer basis for interpreting QE, sensitivity, and low-light performance in real imaging applications.
