Leo 3249

High resolution, high speed, large field of view imaging with the benefits of Global Shutter.

  • Global Shutter
  • 3.2 μm pixels
  • 7000 (H) x 7000 (V)
  • 31.7mm Diagonal
  • 71 fps
Pricing and Options
  • products_banner
  • products_banner
  • products_banner
  • products_banner

Overview

The Leo 3249 has been designed for large format, high spatial resolution imaging where throughput is essential. By delivering larger sample coverage in combination with a global shutter design the LEO 3249 can reduce cycle times in complex multiplexed experiments.

  • Capture Detail & Area

    The 32 mm Diagonal combined with a small 3.2 micron pixels helps instrument builders looking to Niquest match their optics whilst reducing the number of images needed. The overall impact is a reduction in imaging cycle time which delivering your results faster.

    Capture Detail & Area

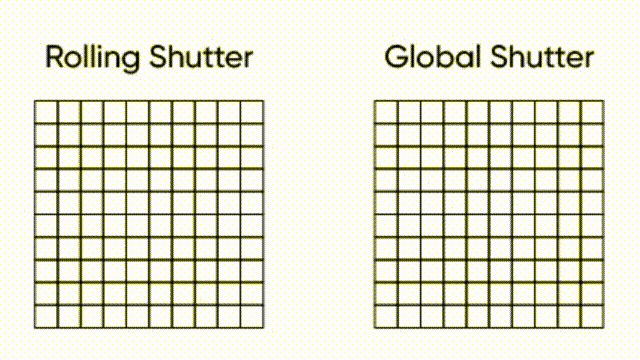

  • Global Shutter Advantage

    The LEO 3249 has been designed for large format, high spatial resolution imaging where throughput is essential. By delivering larger sample coverage in combination with a global shutter design the LEO 3249 can reduce cycle times in complex multiplexed experiments.

    Global Shutter Advantage

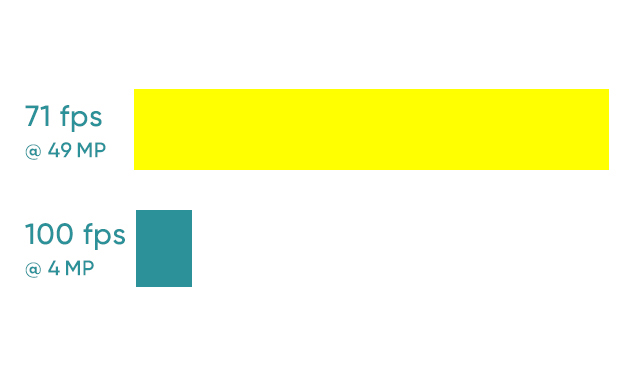

  • High Speed

    The LEO series breaks the speed-to-data limits of sCMOS. In the case of the 3249 delivering 49 Million pixels at a staggering 71 fps. Combined with the physical area this speed delivers the ultimate solution for those seeking to maximise their instruments throughput.

    High Speed

Specification >

  • Product Model: Leo 3249
  • Sensor Model: GMAX 3249
  • Sensor Type: sCMOS (Global Shutter)
  • Shutter Type: Global Shutter
  • Pixel Size: 3.2 μm ×3.2 μm
  • Peak QE: 65%
  • Chrome: Color & Mono
  • Array Diagonal: 32 mm
  • Effective Area: 22.4 mm x 22.4 mm
  • Resolution: 7000 x 7000
  • Full Well Capacity (12 bit): 11ke- @ PGA × 0.75; 2 ke- @ PGA × 6
  • Full Well Capacity (10 bit): 10.6 ke- @ PGA ×0.75; 9.8 ke- @ PGA ×1.25
  • Frame Rate: 71 fps @ 10 bit;31 fps @ 12 bit
  • Read out Noise (12 bit): 7.7 e- @ PGA × 0.75; 5e- @ PGA ×1.25; 1.9e- @ PGA × 6
  • Read out Noise (10 bit): 11.8 e- @ PGA ×0.75; 7.5e- @ PGA ×1.25
  • Cooling Method: Air / Liquid / Passive (no fan) Cooling
  • Interface: 100G GigE
  • Dark Current: <3 e-/ p / s @ 25 ℃
  • Data Bit Depth: 10 bit , 12 bit
  • Power Consumption: 2.2 W @ 10 bit; 2 W @12 bit
  • Optical Interface: Customer Specified
  • Dimensions: Compact Design
  • Weight: < 1kg
+ View all
