Dhyana 9KTDI

BSI TDI sCMOS camera designed for low light and high speed inspection.

  • 82% QE @ 550 nm
  • 5 μm x 5 μm
  • 9072 Resolution
  • 510 kHz @ 9K
  • CoaXPress2.0
Pricing and Options
  • products_banner
  • products_banner
  • products_banner
  • products_banner

Overview

The Dhyana 9KTDI adopts a new generation of back-illuminated TDI sCMOS technology with a spectral response capability of 200-1100nm, which can be used in ultraviolet, visible and near-infrared imaging. TDI technology brings extremely high SNR in low light applications, and the high-speed line frequency of up to 510kHz@9K greatly improves the visual detection efficiency.

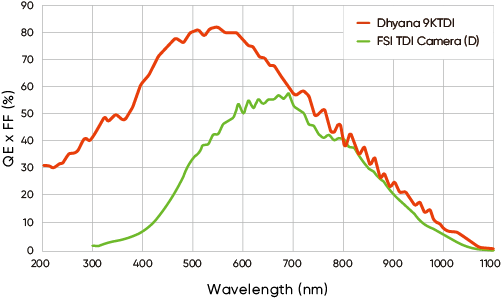

  • 82% High QE/Wide spectrum

    The Dhyana 9KTDI adopts back-illuminated sCMOS technology and has a wide spectral response capability of 200nm-1100nm. Combined with 256-level TDI and cooling technology, it can be better used in low-light imaging fields such as ultraviolet, visible light and near-infrared.

    82% High QE/Wide spectrum

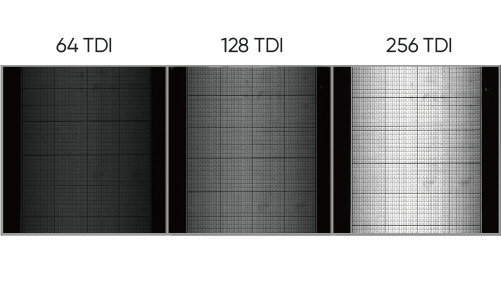

  • 256 TDI Stage Provides High SNR

    The Dhyana 9KTDI supports 16~256 levels of TDI (Time Delay Integration) imaging. This can increase the signal integration per unit of time to obtain images with a higher signal-to-noise ratio under limited lighting conditions.

    256 TDI Stage Provides High SNR

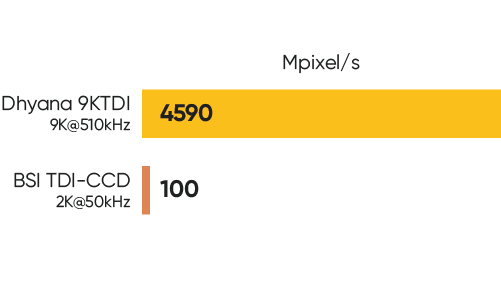

  • High Throughput up to 510kHz @ 9K

    The Dhyana 9KTDI is equipped with the latest CXP-12 high-speed interface. The 9K@510kHz line frequency means a data throughput of 4590Mpixel per second, which is almost 6 times faster than current mainstream 8K line scan cameras, and more than 50 times faster than back-illuminated TDI-CCD cameras.

    High Throughput up to 510kHz @ 9K

Specification >

  • Model: Dhyana 9KTDI
  • Sensor Type: BSI sCMOS TDI
  • Sensor Model: Gpixel GLT5009BSI
  • QE: 38 % @ 266 nm,51% @ 355 nm,82 % @ 550 nm,38 % @ 800 nm
  • Color / Mono: Mono
  • Array Diagonal : 45.4 mm
  • Effective Area: 45.36 mm x 1.28 mm
  • Resolution: 9072 (H) x 256 (V)
  • Pixel Size: 5 μm x 5 μm
  • Operation Mode: TDI, Area
  • TDI Stage: 4, 8, 16, 32, 64, 128, 256
  • Scan Direction: Forward, Reverse, Trigger control
  • CTE: ≥ 0.99993
  • Data Bit Depth: 12 bit, 10 bit, 8 bit
  • Full-Well capacity: Typ. : 15.5 ke- @ 12 bit, 14 ke- @ 10 bit
  • Dynamic Range: Typ. : 68.7 dB @ 12 bit, 63.6 dB @ 10 bit
  • Max. Line Rate: 299 kHZ @ 12 bit, 345 kHZ @ 10 bit, 510 kHZ @ 8 bit
  • Readout Noise: Typ. : 7.2 e- @ 12 bit, 11.4 e- @ 10 bit
  • DSNU: Typ. : 1.5 e- @ 12 bit;3.5 e- @ 10 bit
  • PRNU: Typ. : 0.30 %
  • Cooling Method: Air, Liquid, Cooling speed 5 ℃ / min
  • Max. Cooling: 35 ℃ below ambient
  • Binning: 1 x 1,2 x 1,4 x 1,8 x 1
  • ROI: Support
  • Trigger Mode: Trigger Input, Scan Direction Input
  • Output Trigger Signals: Strobe out
  • Trigger Interface: Hirose, HR10A-7R-4S
  • Timestamp Accuracy: 8 ns
  • Analog Gain: x2 ~ x8, Step 0.5
  • Digital Gain: x0.5 ~ x10, Step 1
  • Data Interface: CoaxPress 2.0 (CXP-12)
  • Optical Interface: M72 / User customization
  • Power Supply: 12 V / 8 A
  • Power Consumption: < 60 W
  • Dimensions: 86 mm x 86 mm x 109 mm
  • Weight: 1100 g
  • Software: Samplepro, Matlab
  • SDK: Supports the GenICam standard
  • Operating System: Windows, Linux
  • Operating Environment: Working: Temperature 0~40 °C, Humidity 0~85 %
    Storage: Temperature 0~60 °C, Humidity 0~90 %
+ View all

Applications >

Download >

  •  Dhyana 9KTDI Brochure

    Dhyana 9KTDI Brochure

    download zhuanfa
  • Dhyana 9KTDI Dimensions

    Dhyana 9KTDI Dimensions

    download zhuanfa
  • Dhyana 9KTDI User Manual

    Dhyana 9KTDI User Manual

    download zhuanfa
  • Software-SamplePro

    Software-SamplePro

    download zhuanfa
  • Plugin-Matlab ( with user guide )

    Plugin-Matlab ( with user guide )

    download zhuanfa
  •  CXP (KAYA) Data Acquisition Card

    CXP (KAYA) Data Acquisition Card

    download zhuanfa

You may also like >

  • product

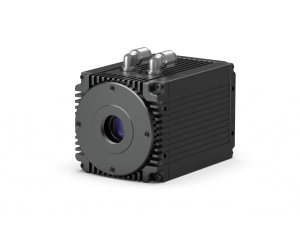

    Dhyana 400BSI V2

    BSI sCMOS camera delivering perfect sensitivity and resolution for high NA microscope objectives.

    • 95% QE @ 600 nm
    • 6.5 μm x 6.5 μm
    • 2048 (H) x 2048 (V)
    • 74 fps @ 4.2 MP
    • CameraLink & USB3.0
  • product

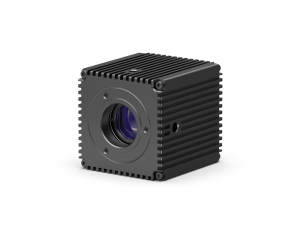

    Dhyana 401D

    Compact 6.5μm sCMOS designed with instrument integration in mind.

    • 18.8 mm Diagonal FOV
    • 6.5 μm x 6.5 μm Pixel Size
    • 2048 x 2048 Resolution
    • 40 fps @ 16 bit, 45 fps @ 8 bit
    • USB3.0 Data Interface
  • product

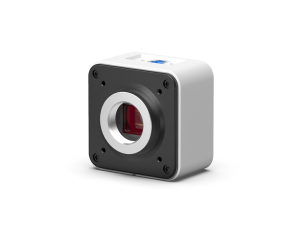

    MIchrome 5 Pro
