Libra 3412C

Global Shutter AI Color sCMOS Camera

  • AI Color Correction
  • 17.4 mm (1.1")
  • 3.4 μm × 3.4 μm
  • 98 fps @ 8 bit
  • 10G GigE & Trigger
Pricing and Options
  • products_banner
  • products_banner
  • products_banner
  • products_banner

Overview

The Libra 3412C is a global shutter AI color camera developed by Tucsen for instrument integration. It utilizes a color sCMOS technology, offering a broad spectral response (350nm~1100nm) and high sensitivity in the near-infrared range. It features a compact design, providing high-speed and high dynamic performance, along with advanced AI color correction, making it even more beneficial for system integration and enhancing overall performance.

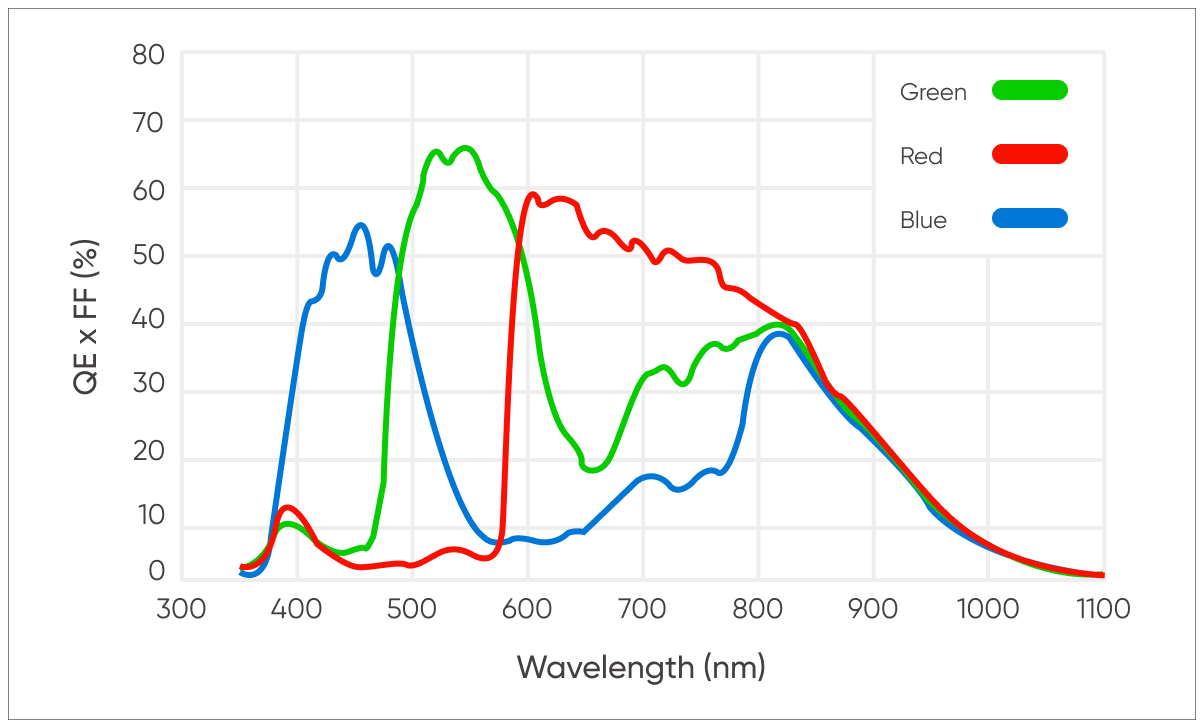

  • Wide Spectral Response

    Using color sCMOS chip technology, The Libra 3412C offers a wide spectral response (350nm~1100nm) and high near-infrared sensitivity. It can not only perform direct bright-field color imaging but is also suitable for most fluorescence imaging needs.

    Wide Spectral Response

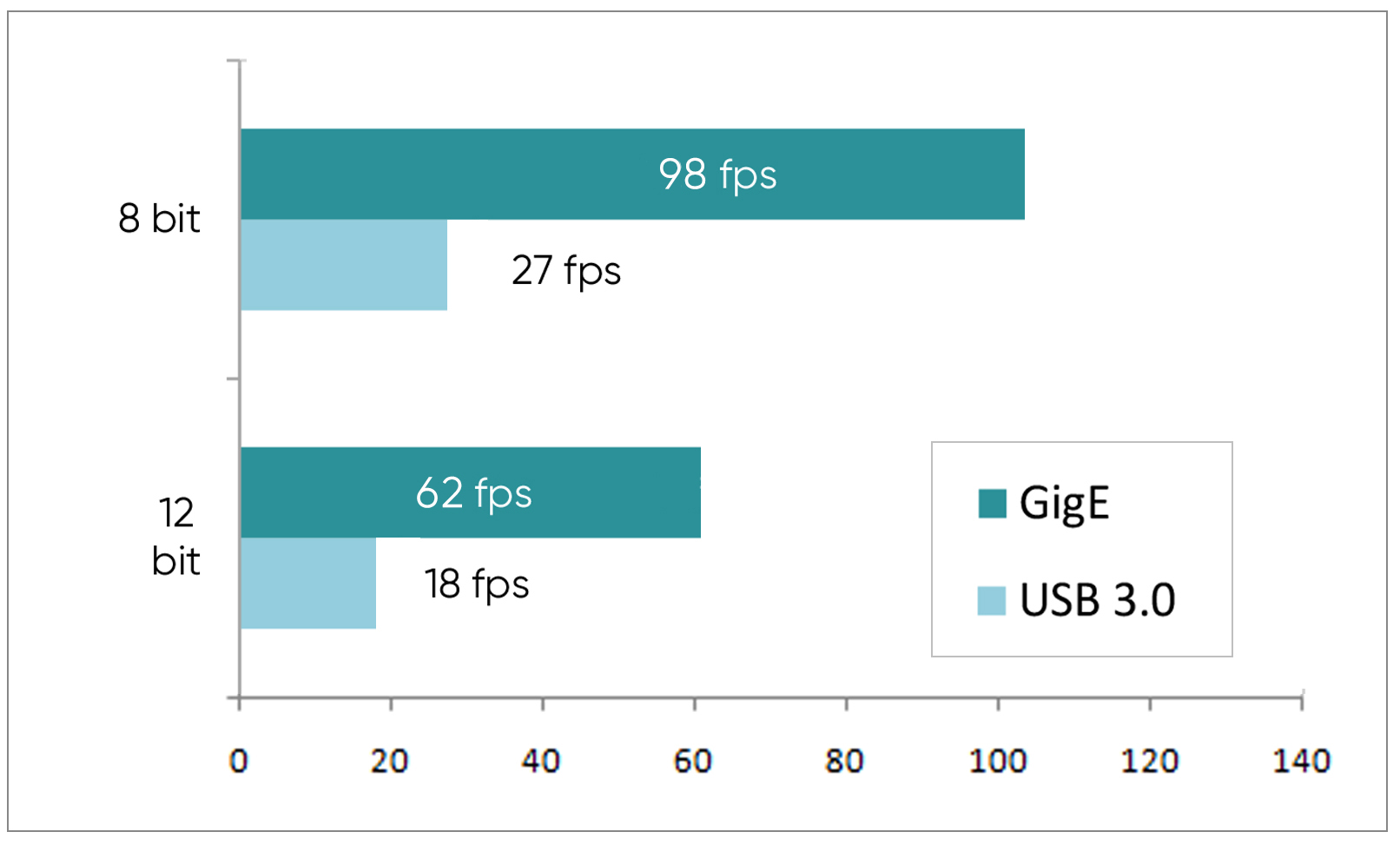

  • Global Shutter & High-Speed

    The Libra 3412C utilizes global shutter technology, enabling clear and rapid capture of moving samples. It is also equipped with a faster GigE interface, several times speed compared to USB3.0.The full resolution speed can reach up to 62 fps@12-bit and 98 fps@8-bit, significantly boosting the throughput efficiency of instruments.

    Global Shutter & High-Speed
  • AI Color Correction

    Tusen's AI color correction algorithm automatically detects lighting and color temperature, eliminating manual white balance adjustments for accurate color reproduction. This feature works directly based on the camera itself, requiring no upgrades to the host, making it highly user-friendly.

    AI Color Correction

Specification >

  • Model: Libra 3412C
  • Sensor Type: Color sCMOS
  • Sensor Model: Gpixel GMAX 3412
  • Chrome: Color
  • Array Diagonal: 17.4 mm (1.1")
  • Effective area: 14.0mm x 10.5mm
  • Pixel Size: 3.4 μm x 3.4 μm
  • Resolution: 4096 (H) x 3072 (V)
  • Peak QE: Refer to the QE curve
  • Gain Mode: High Capacity, Balanced, Sensitive
  • Full well capacity: 12bit: High Capacity 9ke-, Balanced 4.5ke-, Sensitive 0.7ke-
  • Frame Rate: 98 fps @ 8 bit, 60 fps @ 12 bit
  • Readout noise : 12bit Median: 3.8 e- @ High Capacity 2.5 e- @ Balanced 1.6 e- @ Sensitive
  • Shutter Mode: Global Shutter
  • Exposure Time: 1μs ~ 10 s
  • AI White Blance: Support
  • Image correction: DPC
  • ROI: Support
  • Binning (FPGA): 1 x 1 , 2 x 2 , 4 x 4
  • Cooling Method: Air cooling
  • Cooling Temperature: 10°C@25°C (ambient)
  • Dark Current : 0.5 e-/pixel/s @ 25℃
  • Trigger Mode: Hardware, Software
  • Output Trigger Signals: High, Low, Exposure Out, Readout, Trigger Ready
  • Trigger Interface: Hirose-12-Pin
  • Data Interface: 10G GigE
  • Bit Depth: High Depth (12bit), Standard (10bit), Speed (8bit)
  • Optical Interface: C-Mount
  • Power: 12 V / 5 A
  • Power Consumption: 32 W
  • Dimensions: 60 mm x 60 mm x 100 mm
  • Camera Weight: ~489g
  • Camera Software: Samplepro / MosiacV3 / Micromanager 2.0
  • SDK: C / C++ / C# / Python
  • Operating System: Windows / Linux
  • Operating Environment: Working: Temperature 0~40 °C, Humidity 10~85 %;

    Storage: Temperature -10~60 °C, Humidity 0~85 %
