Overview

The Aries 6504 LT Series is built on a new-generation sCMOS architecture, delivering 83% QE, 0.8 e⁻ read noise, and up to 100 fps high-speed imaging in a compact form factor. It integrates high-performance scientific imaging capabilities into a more flexible platform for system integration, meeting the combined requirements for performance, speed, and integration efficiency across scientific imaging and industrial inspection applications.

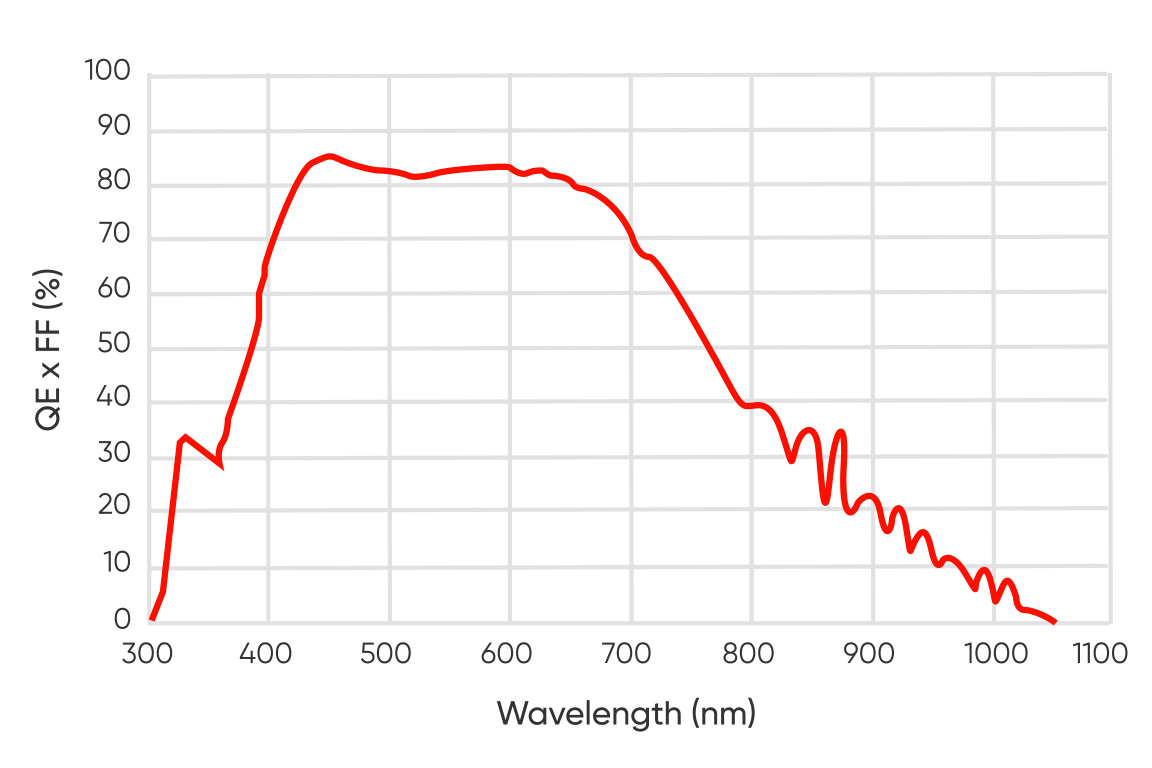

83% QE / 0.8 e⁻ Read Noise

Built on a new-generation sCMOS architecture, the Aries 6504 LT Series delivers 83% QE, 0.8 e⁻ read noise, and up to 100 fps imaging in a compact form factor. Designed for integration into scientific instruments and industrial equipment, it combines high imaging performance with flexible system integration.

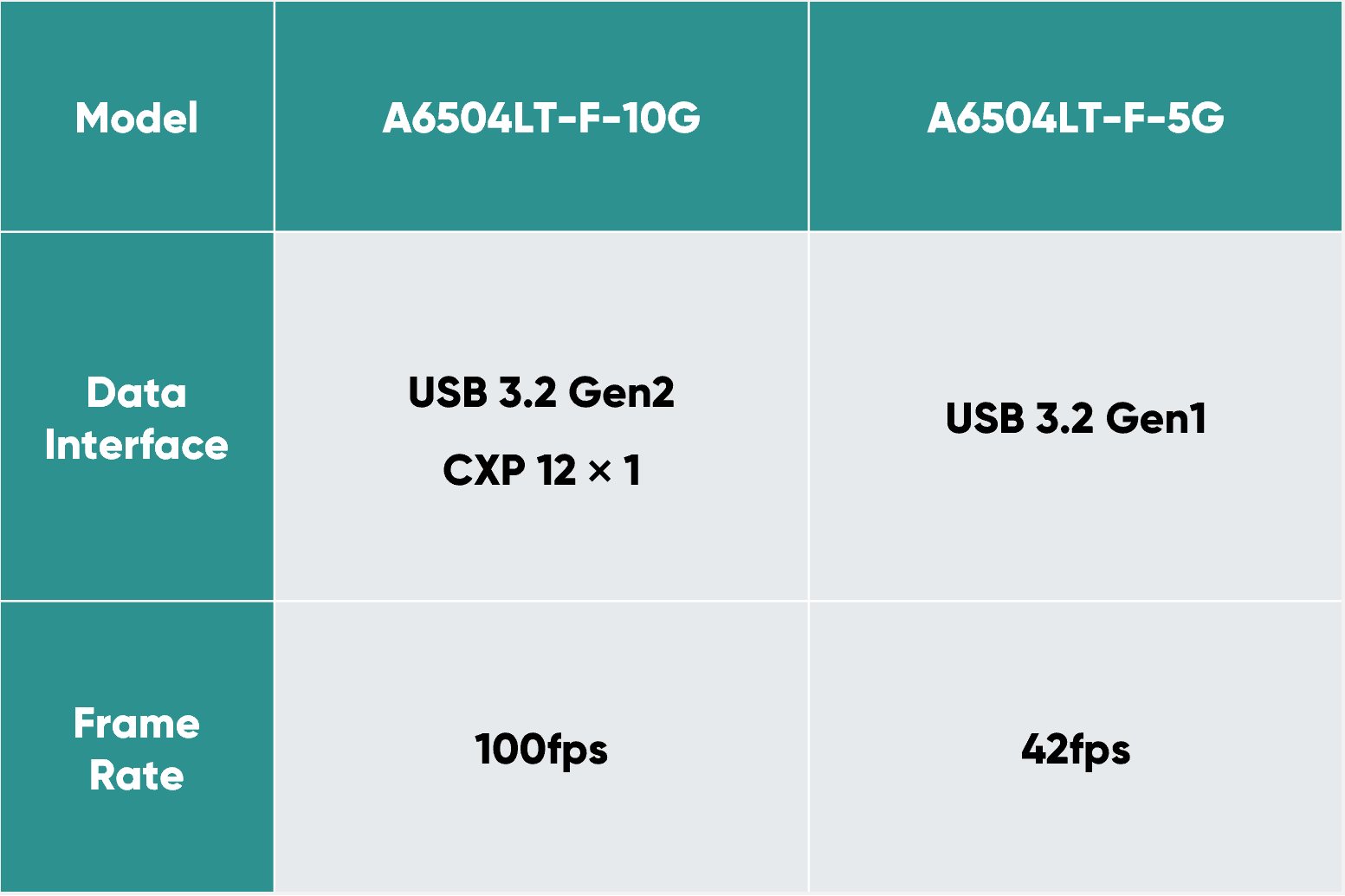

USB 3.2 / CXP-12 Interfaces

Two bandwidth options, 5G and 10G, are available for different system integration requirements.
① 5G Version — General-Purpose
Equipped with a USB 3.2 Gen 1 interface and supporting frame rates of up to 42 fps, the 5G version offers plug-and-play connectivity for scientific laboratory applications and standalone equipment integration.
② 10G Version — High-Performance
Supporting USB 3.2 Gen 2 and CXP-12 high-speed interfaces, the 10G version delivers up to 100 fps through either interface. It is designed for high-throughput data acquisition and OEM equipment integration.

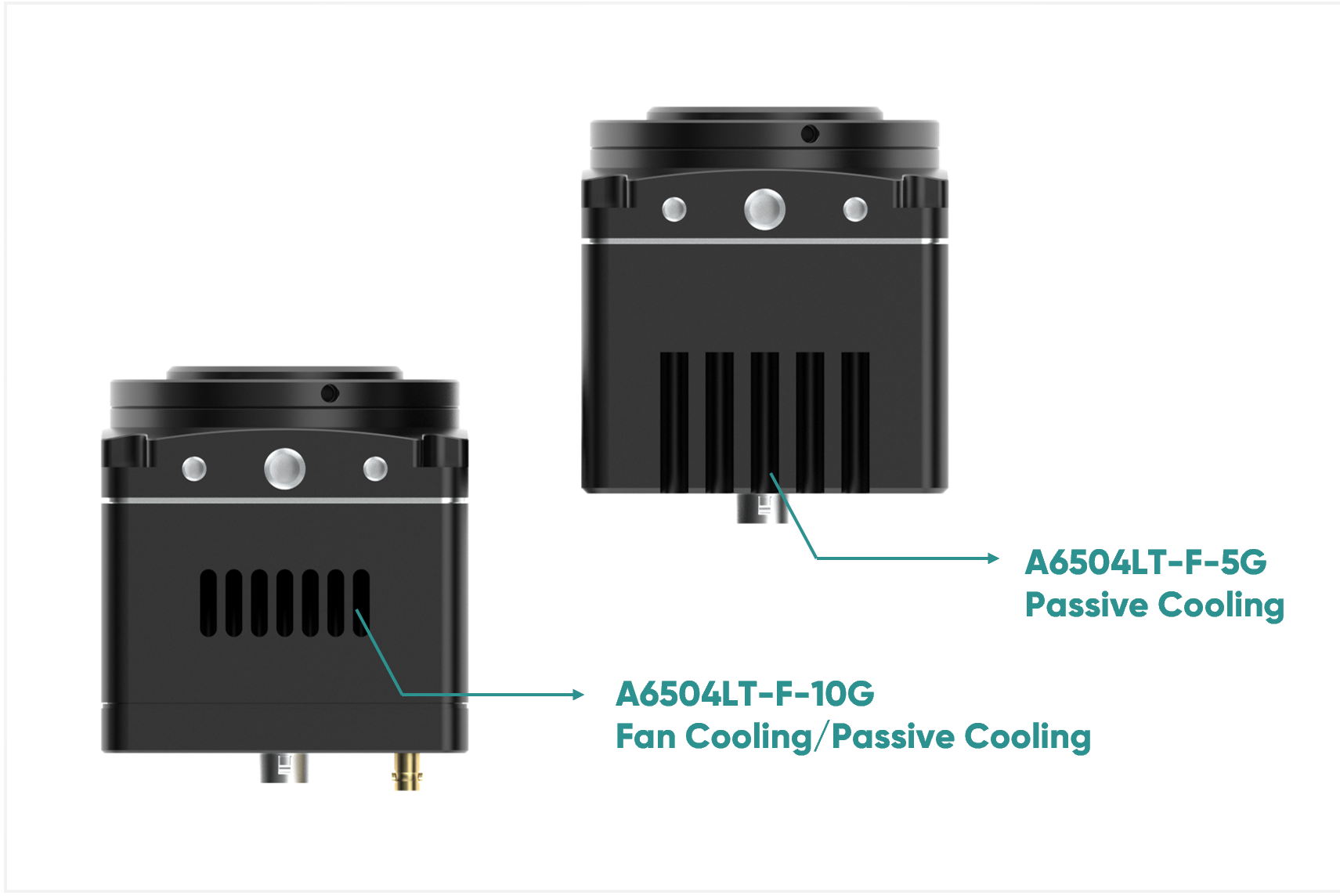

Compact Design

Compared with the cooled models, the Aries 6504 LT reduces camera volume by nearly 60% and offers two cooling configurations for different application requirements.
① Passive Cooling — Vibration-Free
Available for both 5G and 10G versions, passive cooling eliminates fan-induced micro-vibrations, making it suitable for vibration-sensitive applications.
② Fan Cooling — Enhanced Thermal Management
Available for the 10G version, fan cooling helps reduce thermal noise during high-speed operation for demanding imaging applications.

Specification >

Product Name: Aries 6504 LT
Model: A6504LT-F-5G, A6504LT-F-10G
Sensor Type: BSI sCMOS
Peak QE: 83 % @ 450nm
Color/Mono: Mono
Array Diagonal : 18.8 mm
Effective Area: 13.3 mm x 13.3 mm
Resolution: 2048 (H) x 2048 (V)
Pixel Size: 6.5 μm x 6.5 μm
Peak QE: 83% QE @ 450 nm
Readout Noise: 0.8e- (RMS) @ HDR mode
Full-Well capacity: 15 Ke-@Dynamic mode
Dynamic Range: 86dB @ HDR mode
Frame Rate: 100 fps @ 4.2MP
Cooling Method: Passive Cooling, Fan Cooling
Data Interface: USB3.2 Gen2, CXP2.0 x 2
Optical Interface: C-mount
* Remark: For more technical specifications, please download the product datasheet.
