The Science of Dynamic Range: How to Calculate and Why It Matters |

In the world of imaging, audio, and measurement systems, dynamic range is one of the most fundamental specifications you’ll encounter. It tells us how well a device can capture both the faintest and the brightest signals without losing detail. Whether you are working with a scientific camera, an audio recorder, or even a smartphone, dynamic range determines how much information can be preserved.

In this article, we’ll explore the science of dynamic range, explain how to calculate it, and uncover why it matters in real-world applications.

What Is Dynamic Range?

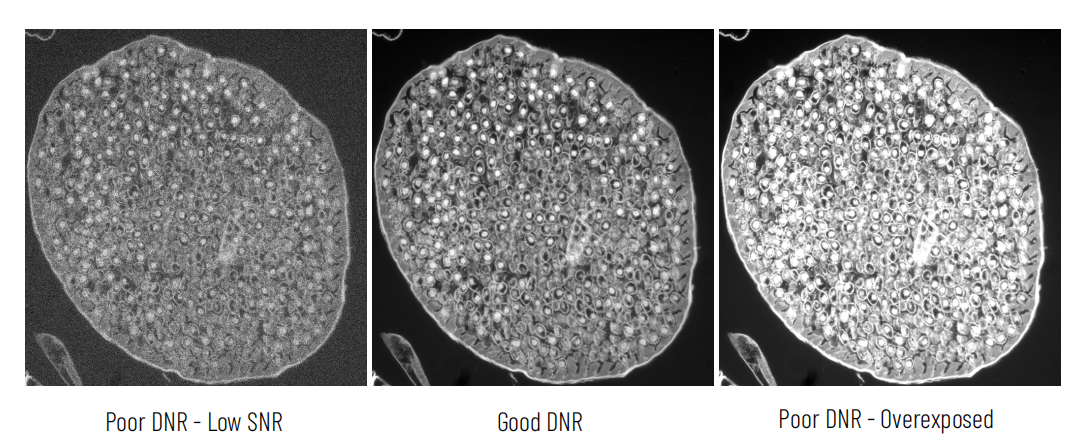

Figure 1: Dynamic range examples

Poor dynamic range can lead either to low signal-to-noise ratio, inadequate precision of measurement, or to overexposure and saturation of image pixels.

Dynamic range refers to a camera’s ability to capture bright and dark signals simultaneously, with precision.

There are two ways to define it, which are mathematically equivalent:

● As a ratio between the brightest and darkest detectable signals.
● As a measure of precision — the smallest step in signal intensity that can be reliably distinguished from noise.

At its simplest, dynamic range (DR) is the ratio between the largest signal a system can measure and the smallest signal it can detect above the noise floor.

● In imaging (e.g., a CMOS camera), this could be the difference between the faintest detectable photon and the brightest pixel before saturation.
● In audio, it’s the gap between the quietest sound that rises above background noise and the loudest sound before distortion.

Analogy: Think of the human eye. We can adjust to a moonlit night and also tolerate bright daylight, but not both at once. Cameras and sensors face a similar challenge: their ability to represent detail depends heavily on their dynamic range.

The Science Behind Dynamic Range

Dynamic range is fundamentally linked to signal-to-noise ratio (SNR). A higher SNR means the system can distinguish small signals without being overwhelmed by background noise.

Several scientific principles shape dynamic range:

1、Noise Floor – Every system has inherent electronic noise. This sets the lower detection limit.
2、Saturation Point – Sensors and amplifiers have a maximum level before signals clip or distort.
3、Bit Depth and Quantization – In digital systems, analog signals are digitized. Limited bit depth introduces quantization noise, which constrains DR.
4、Physical Limitations – Sensor material, manufacturing precision, and circuit design all cap how wide a dynamic range can realistically be.

For example, in a sCMOS camera, the noise floor is extremely low compared to older CCD designs, which enables both faint signals and strong illumination to be captured in the same frame.

How to Calculate Dynamic Range

1、The General Formula

As a proxy, camera manufacturers specify dynamic range as the pixels’ full well capacity, divided by the read noise.

Note: Reported values vary by camera mode and gain setting. Camera specification sheets will typically report at least the value for the mode with the highest dynamic range. 'True' maximum dynamic range is lower and incorporates avoiding saturation of the brightest pixels, and a minimum signal that provides a useful SNR to the intended measurement. These considerations are specific to individual use cases, however, so the definition above is useful for comparisons between cameras.

2、Dynamic range and bit depth

The dynamic range and bit depth are often confused with each other – in fact, it is common to have a dynamic range far lower than the bit depth, especially in the case of 16-bit cameras. This means that although 65,536 different intensity outputs are possible, the camera cannot meaningfully discriminate between these many intensity values with statistical significance.

However, the dynamic range cannot be higher than the bit depth: for example, a 12-bit camera capable of delivering 4096 different intensity values cannot discriminate between more than 4096 different intensities.

3、Practical Examples

● In Imaging (CMOS sensor): If the brightest signal is 100,000 electrons per pixel and the noise floor is 5 electrons, the dynamic range is 20,000:1, or ~86 dB.
● In Audio (microphone): A microphone that detects from 20 μPa (threshold of hearing) up to 20 Pa (pain threshold) has a DR of 1,000,000:1, or about 120 dB.

Ratios, dB, and Bits: Different Ways to Express DR

DNR is referred to as a simple ratio. However, the same ratio is commonly given logarithmically in units of decibels (dB), or as an 'effective' bit depth.

Converting to and from decibels

A ratio described in terms of decibels can be converted to a pure number using the following equation:

Conversely, a ratio can be converted into units of dB as follows:

Converting to effective bit depth

Because, as mentioned, DNR cannot be higher than bit depth, it is occasionally expressed in bits. Particularly in the case of high dynamic range cameras advertising a 'true 16-bit' dynamic range, meaning this value is 16 bits or higher. The following formula converts a ratio to units of 'bits':

And back:

Why Dynamic Range Matters

Dynamic range isn’t just a number—it directly impacts usability and results in real-world applications.

● Scientific Cameras: A high dynamic range allows detection of faint signals in low-light microscopy while preventing bright regions from saturating. For example, sCMOS cameras offer DR > 90 dB, enabling simultaneous imaging of dim and bright features.
● Audio Systems: High DR ensures both quiet background details and loud peaks are captured without distortion.
● Photography & Consumer Electronics: Dynamic range underlies HDR (high dynamic range) photos, which blend multiple exposures to overcome camera sensor limitations.

Without sufficient DR, you risk lost detail: shadows that fade to black or highlights that blow out to pure white.

Interpreting Dynamic Range Values

So, what counts as a “good” dynamic range? It depends on context:

● Professional audio: >100 dB is excellent.
● Consumer cameras: ~60–70 dB is typical.
● Scientific CMOS cameras: Often exceed 80–90 dB, necessary for research.

Key takeaway:

A higher number doesn’t always mean "better". A CMOS camera with very high DR but poor sensitivity may still underperform in low-light applications. Always interpret DR alongside quantum efficiency, read noise, and frame rate.

Common Misconceptions About Dynamic Range

1、Dynamic Range ≠ Resolution

Resolution is about spatial detail (pixels), while DR is about brightness detail. They are independent metrics.

2、Higher Dynamic Range Is Always Better

Not true. In some cases, a system trades DR for speed or sensitivity. The “best” depends on application.

3、Manufacturer Specs Are Always Comparable

Different companies may use different measurement methods. Always check whether DR is specified at full resolution, full frame rate, or under specific conditions.

Conclusion

Dynamic range is the bridge between science and application—a simple ratio that reveals how much information a device can capture between the extremes of dark and bright, quiet and loud.

Knowing how to calculate dynamic range, understanding how it’s expressed, and interpreting it in context allows engineers, researchers, and creators to make informed choices.

For scientific cameras in particular, dynamic range should be evaluated alongside quantum efficiency, bit depth, and noise performance. By doing so, you’ll ensure that your system isn’t just capable on paper but optimized for real-world results.
