Leo 3243 Pro
Large format sCMOS designed for high-resolution imaging combined with stacked BSI technology delivering high speed and high full well capacity.
- 31mm Diagonal
- 3.2 μm pixels
- 8192 x 5232
- 100 fps @ 43MP
- 100G COF interface
Overview
The LEO 3243 is Tucsen’s cutting-edge solution for low-light and high-throughput imaging. Powered by the latest stacked BSI sCMOS technology, it delivers exceptional performance with 43 MP HDR imaging at 100 fps, enabled by its high-speed 100G COF interface. Featuring 3.2 μm pixels and 24ke⁻ full-well capacity, the LEO 3243 redefines the balance between pixel size and full-well capacity, making it the ideal choice for today’s sophisticated scientific imaging systems.
-

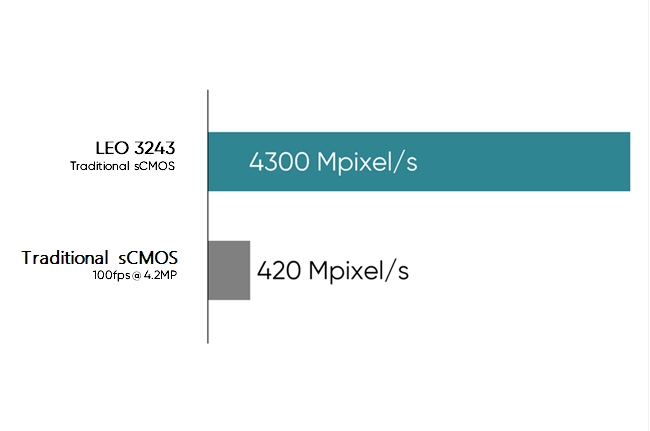

100fps @ 43MP
10× Data Throughput BoostLEO 3243 leverages stacked BSI technology to achieve 80% quantum efficiency, 2e⁻ read noise, and 20Ke⁻ full well, while supporting 100 fps @ 43MP. Compared to traditional sCMOS, it delivers 10× higher throughput with no compromise on sensitivity, resolution, or speed.
-

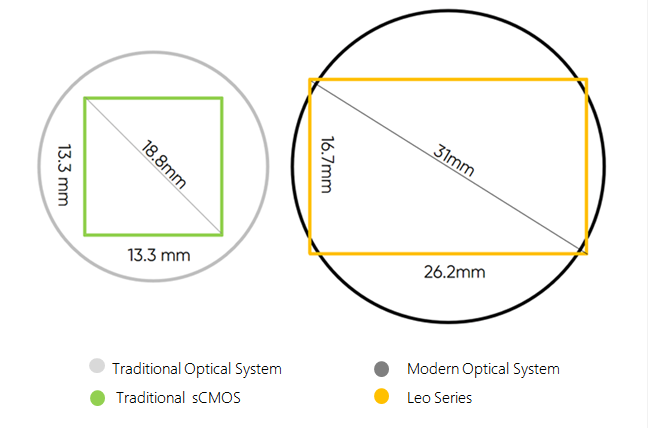

31mm Diagonal / 3.2µm Pixel
LEO 3243 leverages stacked BSI technology to achieve 80% quantum efficiency, 2e⁻ read noise, and 20Ke⁻ full well, while supporting 100 fps @ 43MP. Compared to traditional sCMOS, it delivers 10× higher throughput with no compromise on sensitivity, resolution, or speed.
-

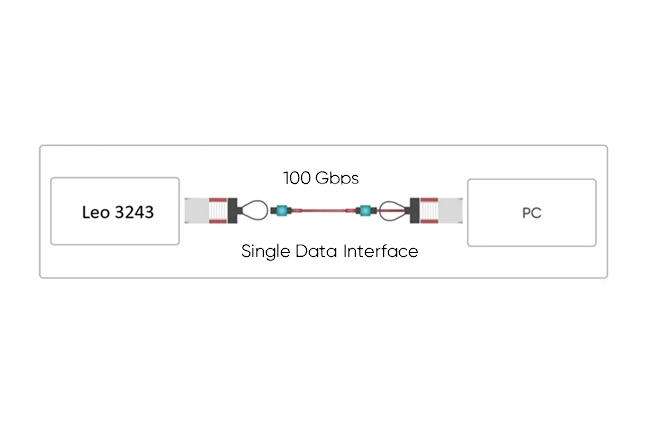

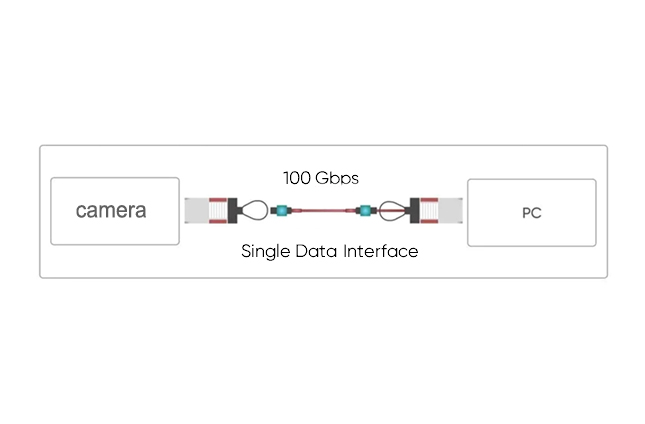

100G CoF Interface
Legacy interfaces like CameraLink or CXP2.0 fall short on bandwidth and scalability. LEO 3243 features a single-port 100G CoF interface, enabling stable, real-time transmission of 43MP @ 100fps data—breaking through I/O bottlenecks.
Specification >
- Product Model: Leo 3243
- Sensor Model: GSENSE 3243BSI
- Sensor Type: Stacked BSI sCMOS
- Shutter Type: Rolling Shutter
- Pixel Size: 3.2 μm ×3.2 μm
- Peak QE: 80 %
- Chrome: Mono
- Array Diagonal: 31 mm
- Effective Area: 26.2 mm x 16.7 mm
- Resolution: 8192 x 5232
- Full Well Capacity : 19 ke- @HDR; 7.2 ke- @High Gain
- Dynamic Range: 75 dB
- Frame Rate: 100 fps@Standard mode, 50 fps@HDR, 100 fps@Compressed HDR
- Read Out Noise: 3.3e-@High Gain
- Dark Current: < 1 e⁻ / pixel / s @ 0 ℃
- Cooling Method: Air / Liquid
- Cooling Temperature: Locked at @ -5℃ (Water cooling)；Locked at @ 5℃ (Air cooling)
- Output Trigger Signals: Customer Specified
- Trigger Interface: HIROSE
- Data Interface: 100G QFSP28
- Data Bit Depth: 14 bit, 16 bit
- Optical Interface: T/F/C Mount
- Dimensions: < 90*90*120 mm
- Weight: <1kg
Applications >
Download >
-
Leo 3243 Pro Technical Specifications
You may also like >
-

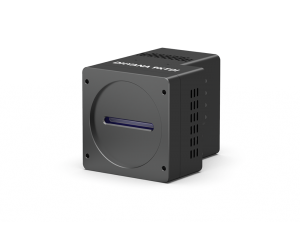

Dhyana 9KTDI
BSI TDI sCMOS camera designed for low light and high speed inspection.
- 82% QE @ 550 nm
- 5 μm x 5 μm
- 9072 Resolution
- 510 kHz @ 9K
- CoaXPress2.0
-

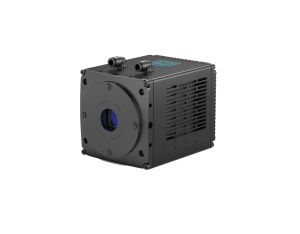

Leo 3249
