Libra 16

Large Format Cooled CMOS Camera

  • 16mm (1.0”)
  • 3.76μm x 3.76μm
  • 3000 x 3000
  • 92% QE / 1.0e⁻
  • USB 3.0
Pricing and Options
  • products_banner
  • products_banner
  • products_banner
  • products_banner

Overview

The Libra 16/22/25 series meets the growing need for larger microscope fields of view. Supporting 22mm and 25mm sensors, these cameras offer high resolution, excellent sensitivity, and cost efficiency. Combined with XinTu’s Mosaic imaging software, they suit a variety of low-light microscopy applications.

  • libra 16 FOV

    libra 16 FOV
  • 92% Peak QE / 1.0e⁻ Read Noise

    The Libra 16/22/25 series delivers up to 92% peak QE and 1.0e⁻ read noise, making it ideal for low-light imaging. It supports two readout modes: 3.76 μm for high-resolution imaging with ≤40X objectives, and 7.5 μm for high sensitivity with ≥60X objectives.

    92% Peak QE / 1.0e⁻ Read Noise
  • Mosaic 3.0 Compatibility

    Mosaic 3.0 integrates advanced features such as intelligent computational imaging, precise imaging control, and real-time analysis tools. It allows users to customize the workspace, optimizing the microscopy workflow and improving efficiency.

    Mosaic 3.0 Compatibility

Specification >

  • Sensor Model: Libra 16
  • Color/Mono: Mono
  • Pixel Size: 3.76 μm × 3.76 μm
  • Diagonal: 16 mm
  • Resolution: 3000 × 3000
  • Effective Area: 11.28 mm × 11.28 mm

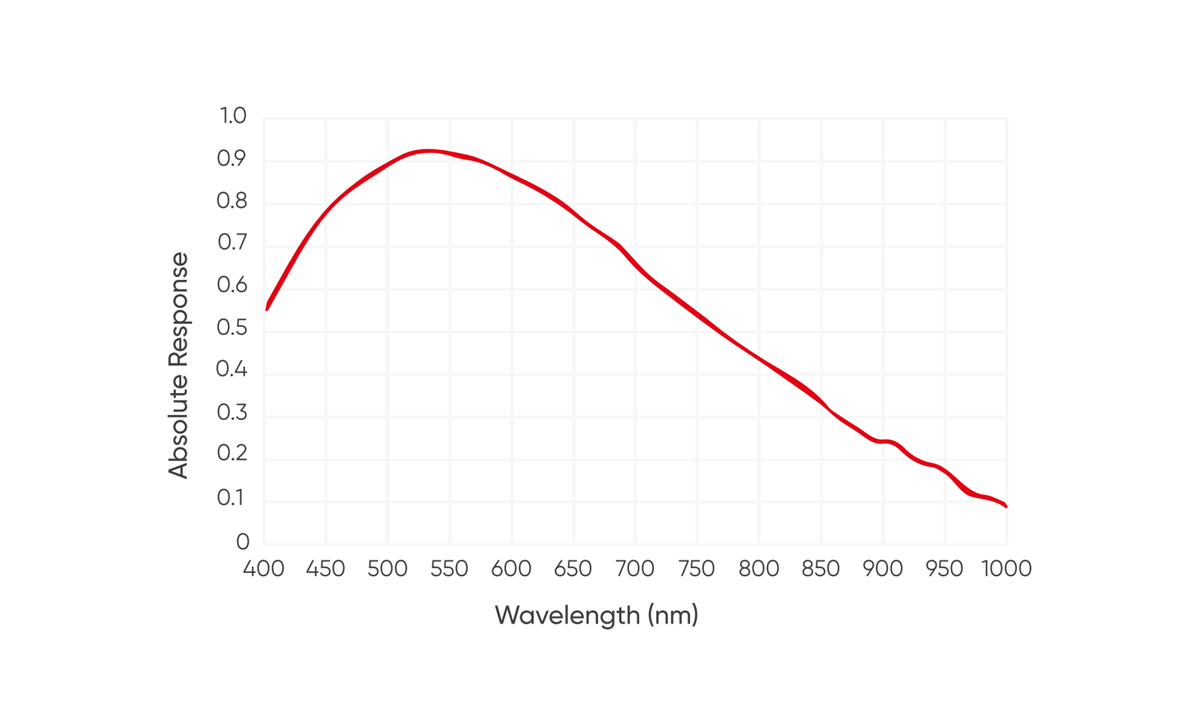

  • Peak QE: 92% @ 530 nm
  • Dark Current: < 0.01 e⁻/pixel/s
  • Bit Depth: 14-bit / 16-bit
  • Full Well Capacity: 3.2 ke⁻ (High Gain) / 48 ke⁻ (Low Gain)
  • Readout Noise: 1.0 e⁻ (High Gain)
  • Frame Rate: 19 fps @ HR;63 fps @ HS
  • Shutter Type: Rolling
  • Binning: 2 x 2, 3 x 3, 4 x 4
  • Exposure Time: 6 μs ~ 60 s
  • Image Correction: DPC
  • ROI: Support
  • Cooling Method: TEC air cooling
  • Cooling Temperature: Stable cooling to 0°C (ambient temperature 26°C)

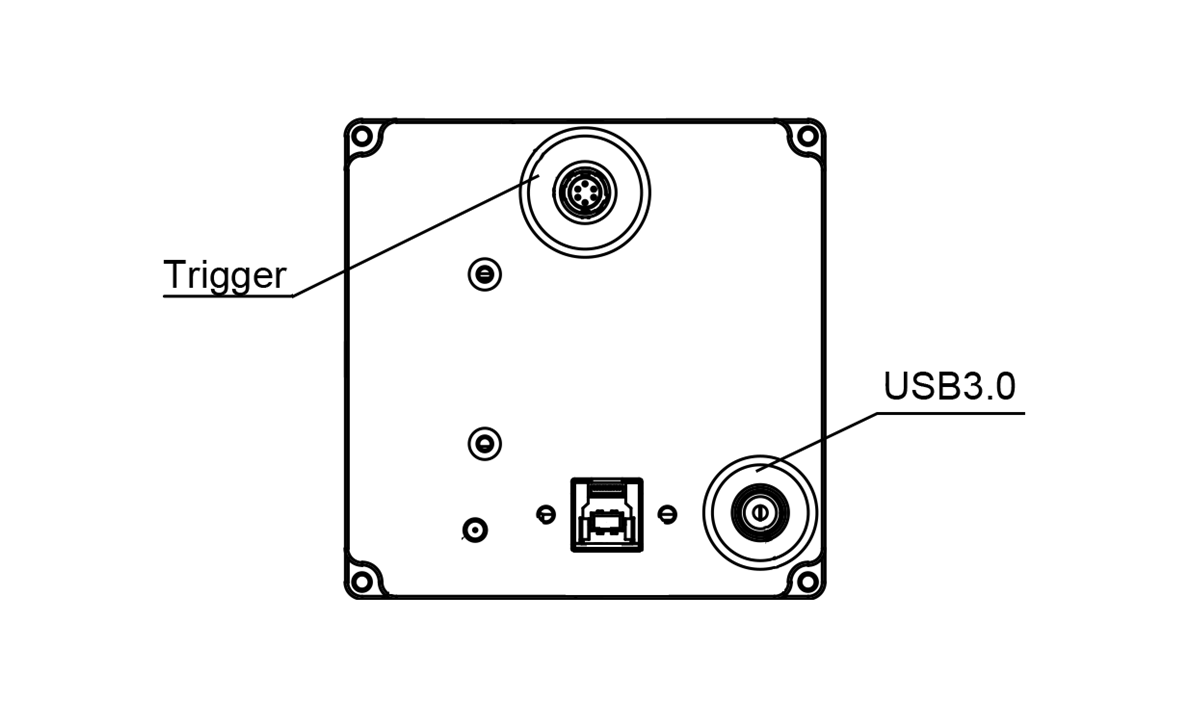

  • Trigger Mode: Hardware, Software
  • Trigger Output: Exposure start, global, readout end, high level, low level
  • Trigger Interface: Hirose
  • SDK: C, C++, C#
  • Software: Mosaic 3.0, SamplePro, LabVIEW, MATLAB, Micro-manager 2.0
  • Data Interface: USB 3.0
  • Optical Interface: C mount
  • Power Supply: 12 V / 6 A
  • Power Consumption: ≤ 50 W
  • Camera Size: 76 mm x 76 mm x 98.5 mm
  • Weight: 835 g
  • Operating System: Windows, Linux
  • Operating Environment: Temperature: 0~45°C; Humidity 0~95%;
  • Storage Environment: Temperature: -35~60℃; Humidity 0~95%
+ View all

Download >

  • Libra 16  Technical Specifications

    Libra 16 Technical Specifications
