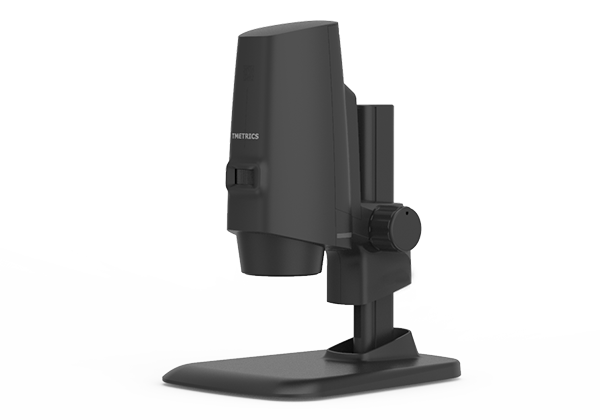

Tmetrics T20

Smart 3D microscope with 16X-160X Optical system.

  • 8mm Diagonal FOV
  • 1920 x1080 Resolution
  • 3.75μm×3.75μm Pixel Size
  • 60fps@2MP Frame Rate
  • HDMI Data interface
  • products_banner
  • products_banner
  • products_banner
  • products_banner

Overview

The T20  is a smart stereo microscope, which is built with 3D and EDF technologies for the efficiency of microscopic researches and inspections. Its unique All-in-one design is equal to five professional equipment in one: a stereoscopic microscope, a camera, a microscopy software, a Z-axis electronic platform and a computer host.

  • 16-160X magnification observation

    T20 adopts liquid lens for highspeed auto-focusing, supports 16-160x microscopic magnification observation, and instantly auto-focus at the mouse click, eliminating the need for repeated manual adjustments in the past, and microscopic observation is simpler and smoother.

    16-160X magnification observation

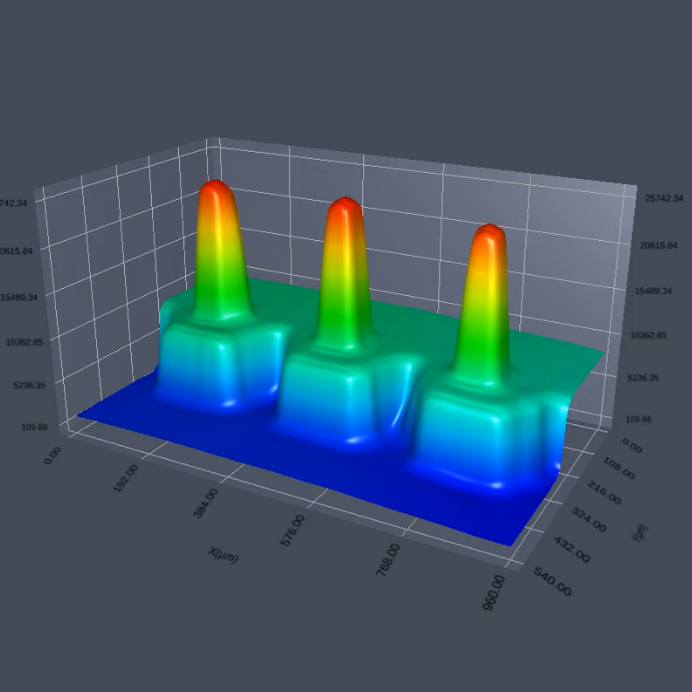

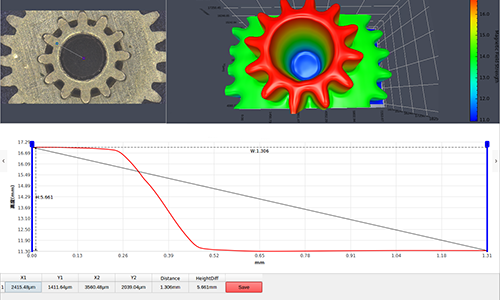

  • Micron-scale 3D measurement

    You can measure any position and record data by the T20 3D fuction. The higher magnification objective lens, the higher precision data: with the metallographic microscope of 10 times objective lens, the C20 Z-axis measurement accuracy and repeatability is±2 micron and±1 micron.

    Micron-scale 3D measurement
  • Live EDF for Clear Observation

    Ordinary microscopes cannot focus on multiple layers at the same time under high magnification. The C20 inner smart EDF algorithm can help solve these problems, obtain all the features of the sample at high magnifications and capture a clear and correct full-frame focusing image.

    Live EDF for Clear Observation

Applications >

Download >

  • Tmetrics T20 Brochure

    Tmetrics T20 Brochure

    download zhuanfa
  • Tmetrics T20 Dimension

    Tmetrics T20 Dimension

    download zhuanfa

You may also like >

  • product

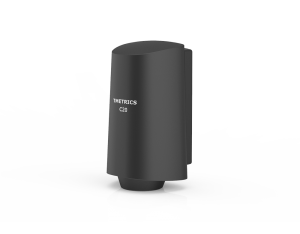

    Tmetrics C20

    Smart 3D microscope camera for metallographic or stereo microscopes.

    • 8mm Diagonal FOV
    • 1920 x 1080 Resolution
    • 3.75μm×3.75μm Pixel Size
    • 60fps@2MP Frame Rate
    • HDMI Data interface
