Overview

The Aries 6504 Pro is built on a next-generation back-illuminated sCMOS platform, delivering substantial improvements in readout noise, frame rate, and dark current. In high-sensitivity readout mode, it achieves 0.43 e⁻ (RMS) readout noise for single-photon-level signal discrimination, complemented by 297 fps at 4.2 MP in high-speed readout mode and a dark current of ≤0.01 e⁻/pixel/s @ −20 °C. Together, these capabilities extend the performance envelope of sCMOS cameras for demanding low-light and high-speed imaging applications.

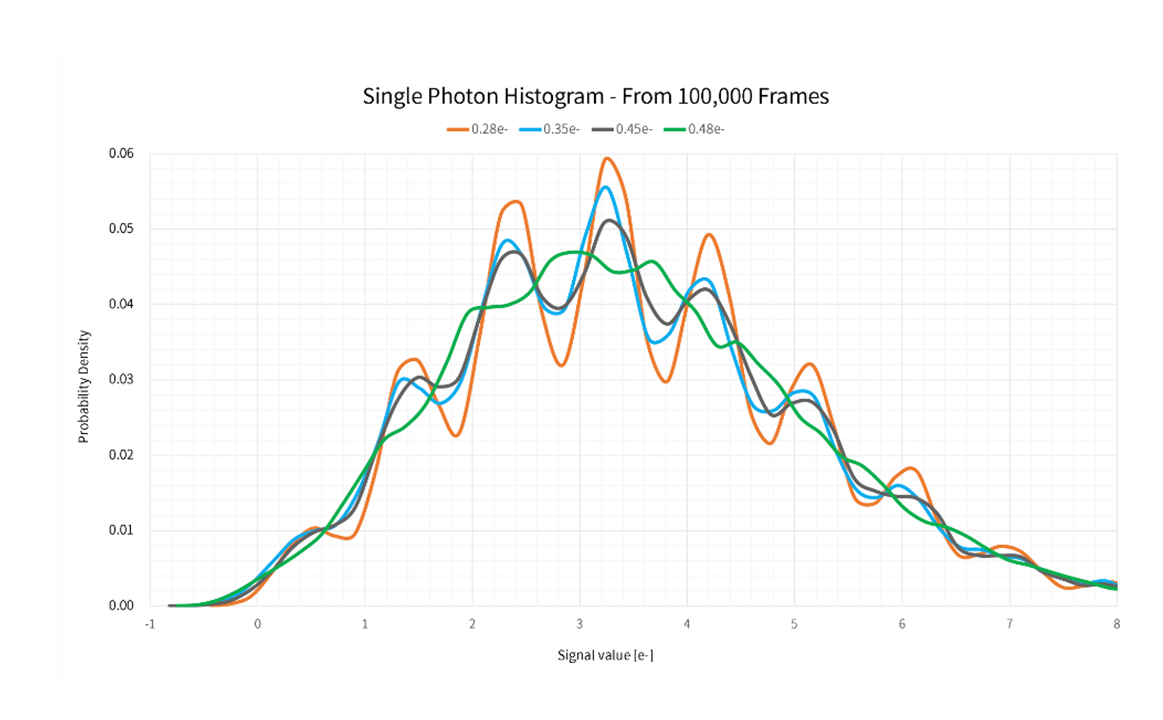

95% QE & 0.43e-(RMS)
Single-Photon-Level Resolution

The Aries 6504 Pro is optimized on a back-illuminated sCMOS platform with 95% QE and 6.5 μm pixels. In high-sensitivity readout mode, it achieves 0.43 e⁻ (RMS) readout noise with 99 fps at 4.2 MP. Photon probability density fitting over 100,000 frames shows distinguishable photon distributions, supporting quantitative and stable measurements at extremely low photon levels.

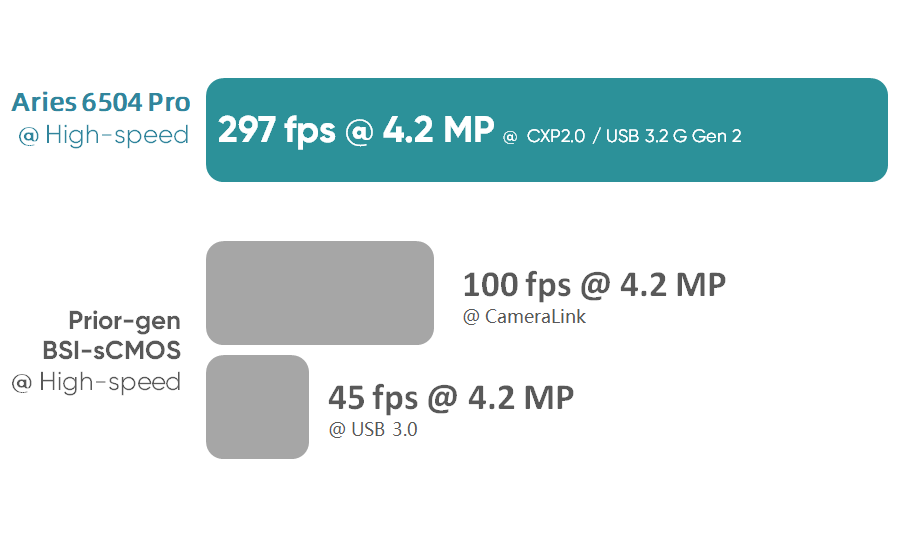

297 fps @ 4.2 MP
High-Speed with Sub-Electron Noise

In high-speed mode, the Aries 6504 Pro operates at up to 297 fps at full 4.2 MP resolution, representing a threefold increase in frame rate compared with previous-generation sCMOS cameras of the same sensor format. Sub-electron readout noise down to 0.8 e⁻ is maintained at full resolution, enabling efficient photon utilization in high-speed, low-light conditions.

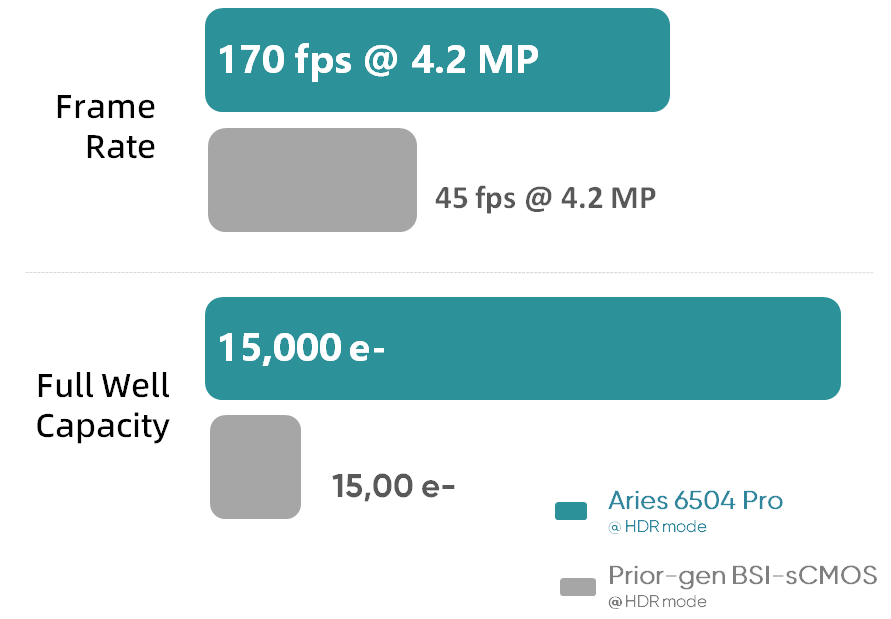

170 fps @ 16bit
High Speed & High Dynamic Range

The high dynamic range mode supports 170 fps at 4.2 MP, combined with a full well capacity of up to 15 ke⁻ and true 16-bit digitization. This allows accurate capture of both low- and high-intensity signals within the same acquisition, supporting quantitative imaging across a wide dynamic range.

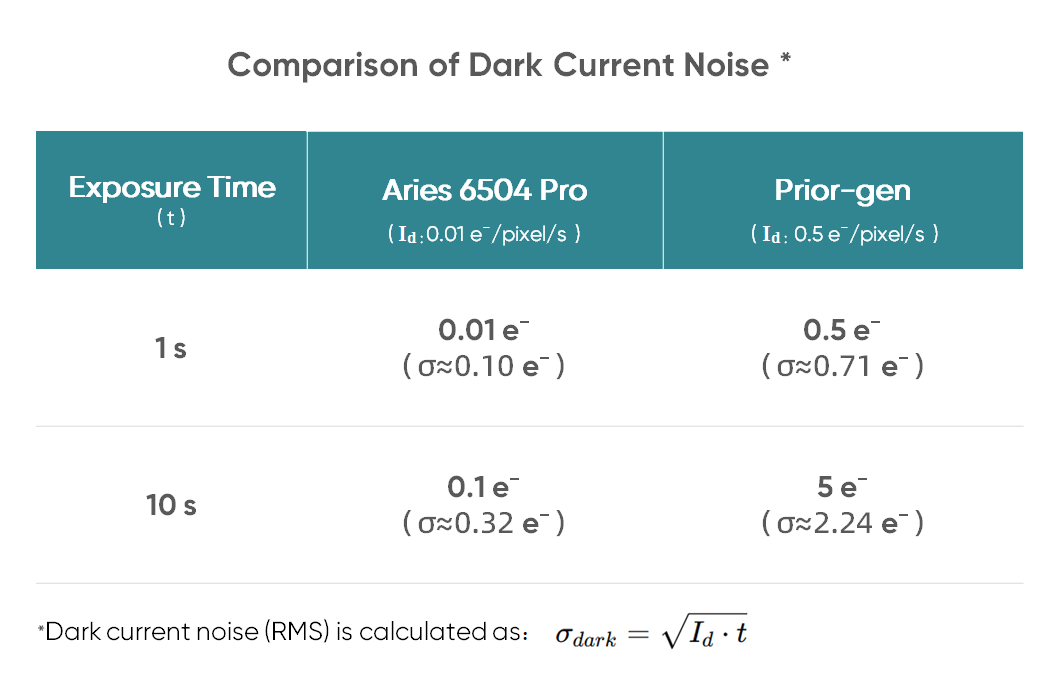

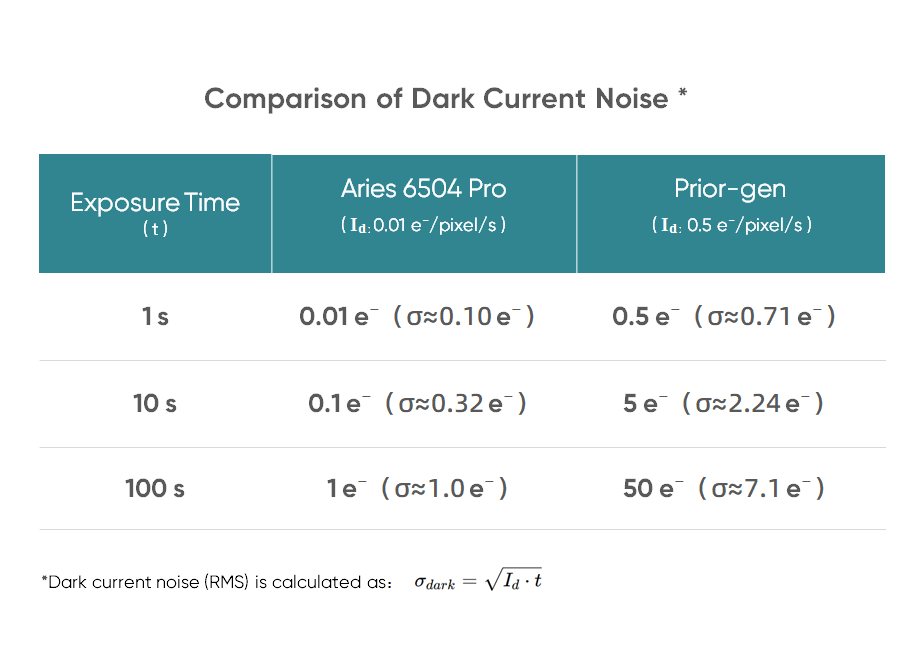

0.01 e-/pixel/s @ −20 °C
Low Dark Current for Long-Exposure

At −20 °C, the Aries 6504 Pro exhibits a dark current as low as 0.01 e⁻/pixel/s, approximately one-fifth that of previous-generation 6.5 μm sCMOS cameras. This reduction significantly improves long-exposure performance and supports applications requiring extended integration times under low-light conditions.

Specification >

Model: Aries 6504 Pro
Sensor Type: BSI sCMOS
Sensor Model: GSENSE6504BSI
Peak QE: 95 % @ 450 nm
Color/Mono: Mono
Array Diagonal : 18.8 mm
Effective Area: 13.3 mm x 13.3 mm
Resolution: 2048 (H) x 2048 (V)
Pixel Size: 6.5 μm x 6.5 μm
Full-Well Capacity: 15ke- @ HDR
Dynamic Range: 91dB @ Sensitive
Frame Rate: 99fps @ Sensitive mode

170fps @ HDR mode

297fps @ Speed mode
Readout Noise: 0.43e-(RMS) @ Sensitive mode
Shutter Type: Rolling, Global reset
DSNU: 0.2 e-
PRNU: 0.3 %
Cooling Method: Air, Liquid
Max. Cooling Temperature: Liquid：-20℃ @ Liquid temperature 20℃

Air：-10℃ @ Ambient temperature 25℃
Dark Current: 0.01 e-/pixel/s @-10℃
Binning: 2 x 2, 4 x 4
ROI: Support
Trigger Mode: Hardware, Software
Output Trigger Signals: Readout End,Global Exposure,Exposure Start, Trigger Ready,first row,any row,High,Low
Trigger Interface: SMA x 4
Data Interface: USB3.2 Gen2, CXP2.0 x 2
Data Bit Depth: 12 bit, 16 bit
Optical Interface: C-mount
Power Supply: 12 V / 8 A
Power Consumption: 45 W
Dimensions: 85 mm x 85 mm x 127 mm *
Weight: 995 g
Software: Mosaic, SamplePro
SDK: C, C++
Operating System: Windows, Linux
Operating Environment: Windows 10/11、Ubuntu 22.04
* Remark:: The dimensions listed refer to the bare camera body only; water-cooling connectors, adapters, and interfaces are not included. For full details, see the mechanical drawing.
