Overview

The Aries 6510 achieves perfect combination of sensitivity, large FOV and high-speed performance. The advantages are not only based on the sensor specifications, but more importantly, the rich option of imaging modes, easy but stable data interface, and compact design, make it an ideal choice for most challenging scientific applications.

Ultimate Sensitivity

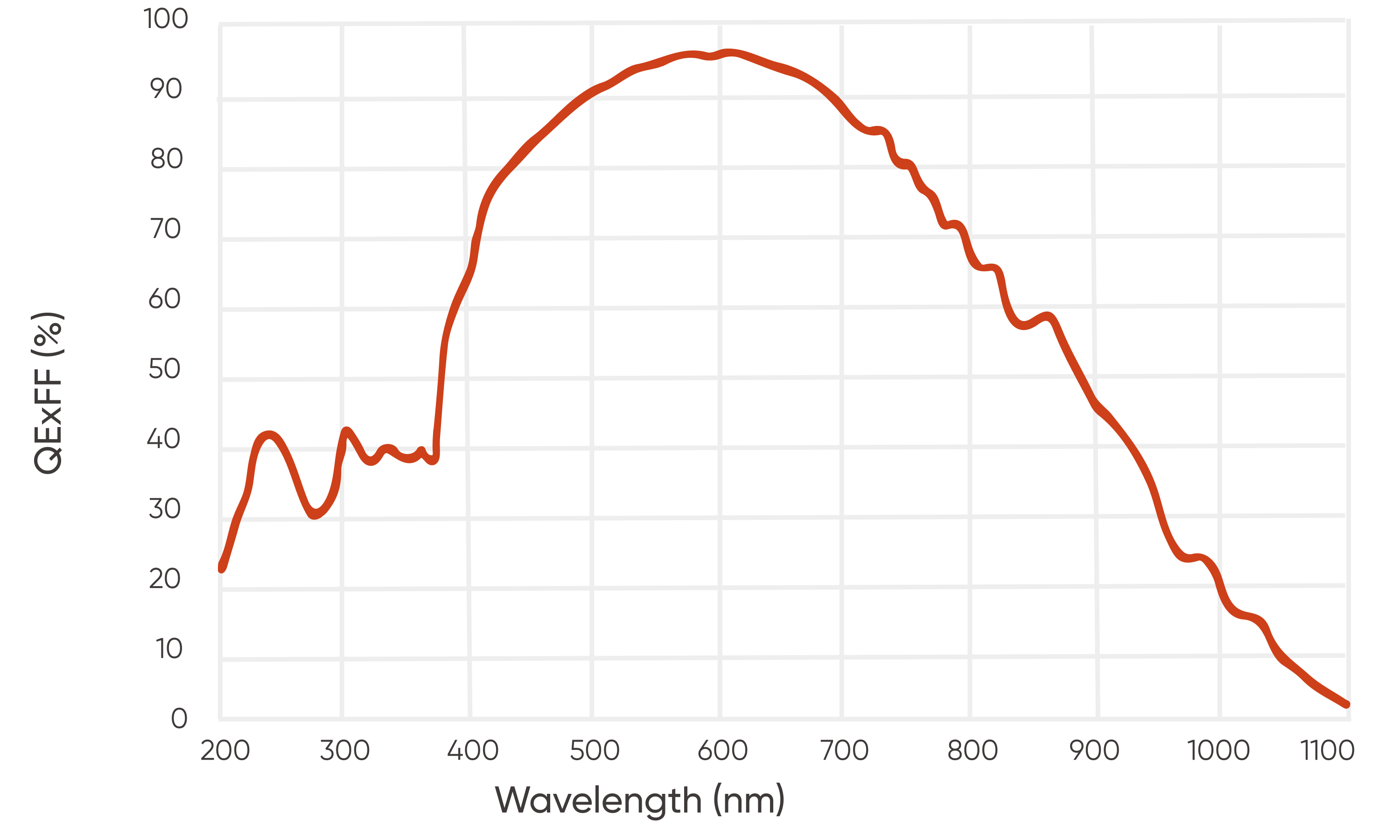

The Aries 6510 uses the latest GSense6510BSI sensor, with peak QE of 95% and read noise as low as 0.7e-, achieving high sensitivity to drive speed, minimal sample damage and fast switching on multi-dimensional acquisitions.
Useable Full Well Capacity for High Speed Acquistion

Measuring fast changes in signal requires not only high speed, but also large enough full well capacity to resolve that change. For example, if a high speed of 500 fps only provide you 200e- full well, your image details will be saturated before useable measurements can be made. The Aries 6510 delivers 150 fps with user seletable full well of 1000e- to 15,000e-, resulting much better quality on your intensity measurements.
29.4 mm Diagonal FOV

The Aries 6510 camera's 29.4 mm diagonal FOV delivers the largest field of view seen with a 6.5 micron pixel camera, ensuring you drive more data per image and higher experiment throughput.

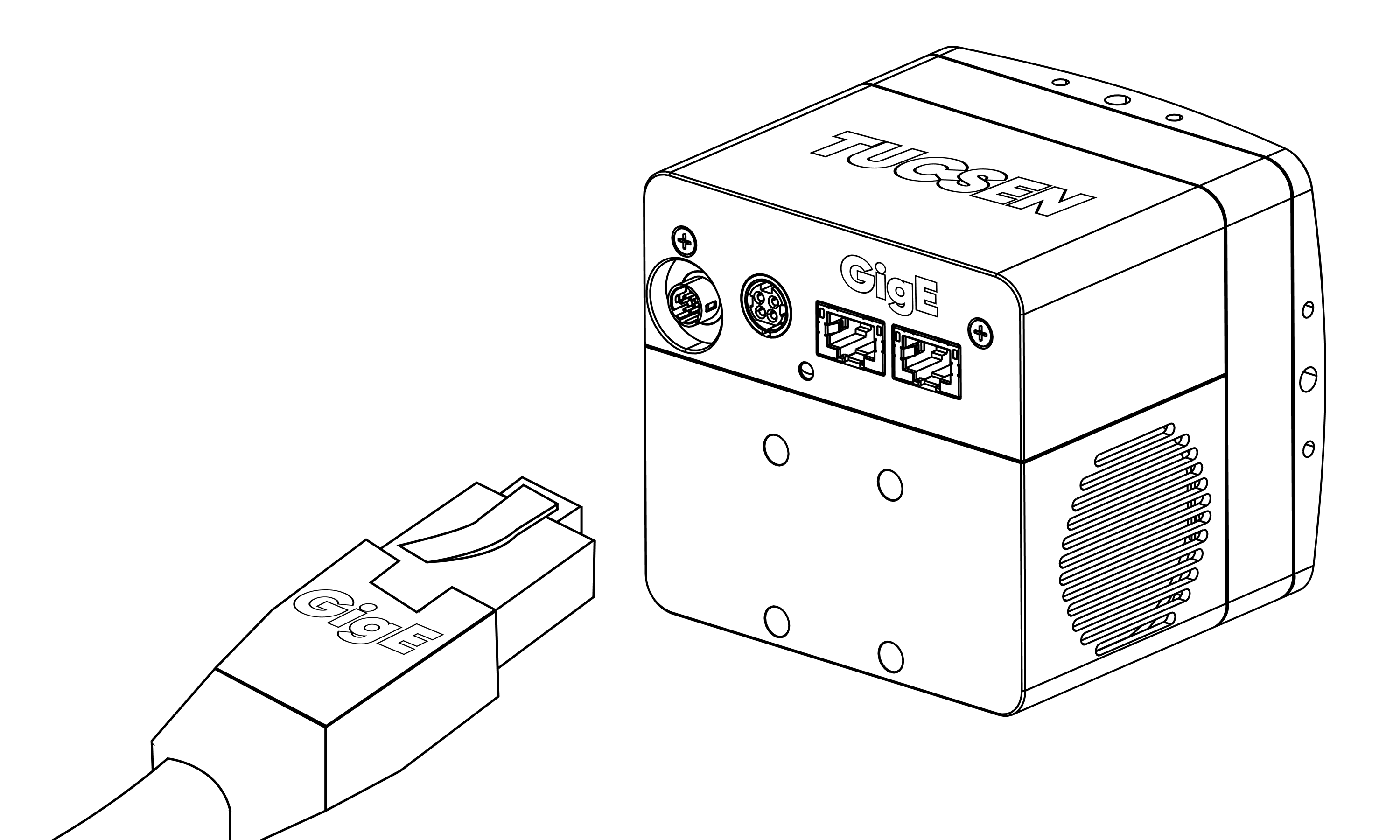

GigE Interface Drives Speed & Simplicity

The Aries 6510 uses standard GigE data interface, which delivers high quality data transferring without the need for an expensive frame grabber, bulky cables, nor complicated boot sequence seen with custom data interfaces.

Specification >

Model: Aries 6510
Sensor Type: BSI sCMOS
Sensor Model: Gpixel GSENSE 6510BSI
Peak QE: 95%
Color/Mono: Mono
Array Diagonal: 29.4 mm
Effective Area: 20.8 mm x 20.8 mm
Resolution: 3200 (H) x 3200 (V)
Pixel Size: 6.5 μm x 6.5 μm

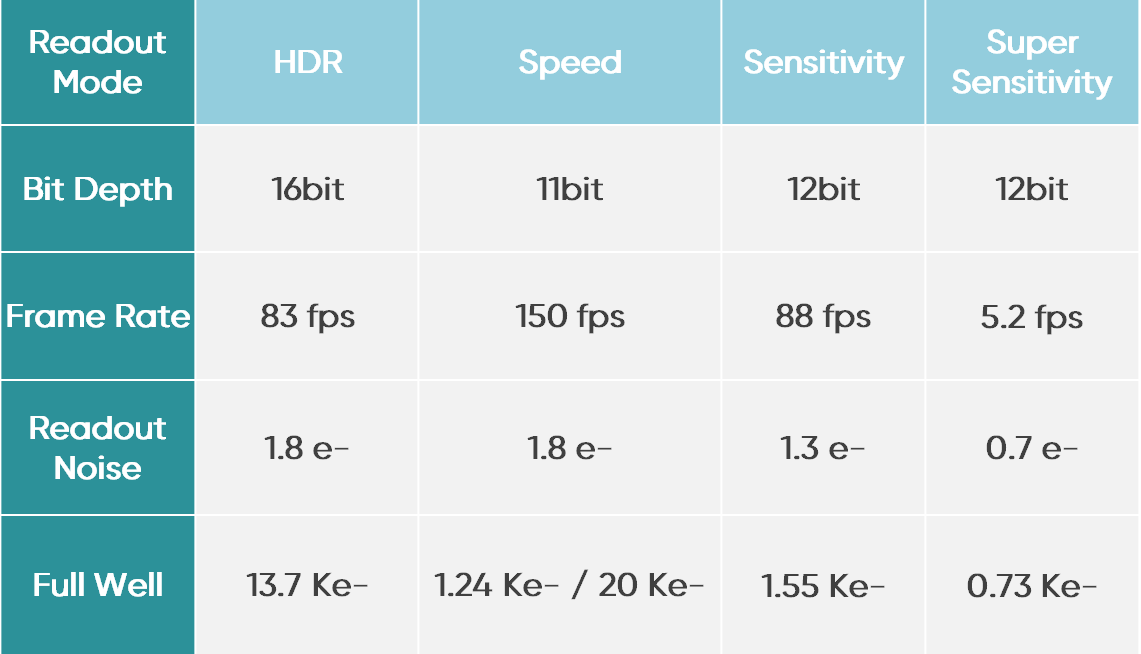

Readout Mode: HDR, Speed, Sensitivity, Super-Sensitivity
Bit Depth: 16 bit, 11 bit, 12 bit
Frame Rate: 83 fps @ 16 bit HDR mode

150 fps @ 11 bit Speed mode

88 fps @ 12 bit Sensitivity mode

5.2 fps @ 12 bit Super sensitivity mode
Readout Noise : 1.6 e- @ 16 bit HDR mode

2.0 e- @ 11 bit Speed mode

1.2 e- @ 12 bit Sensitivity mode

0.7e- @ 12 bit Super sensitivity mode
Dark Current @ 0°C: 0.5 e-/p/s @ 16 bit HDR mode

1.0 e-/p/s @ 11 bit Speed mode

0.5 e-/p/s@ 12 bit Sensitivity mode

0.5 e-/p/s fps @ 12 bit Super sensitivity mode
Full Well Capacity: 15,000 e- @ 16 bit HDR mode

1,000 e- / 15,000 e- @ 11 bit Speed mode

1,500 e- @ 12 bit Sensitivity mode

1000 e- fps@ 12 bit Super sensitivity mode
Shutter Mode: Rolling
Image Correction: DPC
ROI: Support
Binning (FPGA): 2 x 2, 4 x 4
Cooling Method: Liquid Cooling , Air Cooling
Cooling Temperature: Air: 0 °C @ 25 °C ambient, Liquid: -10 °C @ 20 °C liquid temprature
Trigger Mode: Hardware, Software
Output Trigger Signals: Exposure start, Global, Readout end, Trigger ready, Global reset,First row, Any row
Trigger Interface: Hirose
SDK: C / C++ / C# / Python
Data Interface: 2 x 10G GigE
Optical Interface: T / F / C Mount
Power: 12 V / 8 A
Power Consumption: ≤ 55 W
Dimensions: 95 mm (H) x 100 mm (W) x 100 mm (L)
Camera Weight: TBD
Operating System: Windows / Linux
Operating Environment: Working: Temperature 0~40 °C, Humidity 10~85 %；

Storage: Temperature -10~60 °C, Humidity 0~85 %
