Dhyana 400BSI V3

BSI sCMOS camera designed lighter and less power to integrate and fit in small spaces.

  • 95%@600nm Peak QE
  • 6.5μm x 6.5μm Pixel Size
  • 2048 x 2048 Resolution
  • 100fps@CL, 40fps@USB3.0
  • CameraLink & USB3.0
Pricing and Options
  • products_banner
  • products_banner
  • products_banner
  • products_banner


Dhyana 400BSI V3 is undoubtedly the best camera featuring the Gpixel Gsense2020BSI sensor, being designed so easy to integrate, fit in small spaces, using less power, giving results you can rely on that you or your customers can make the correct decisions.

  • Lighter and Less Power

    The weight only 995g and the power consumption only 45W makes Dhyana 400BSI V3 the lightest and the least power in its class and so easy to integrate and fit in small spaces.

    Lighter and Less Power

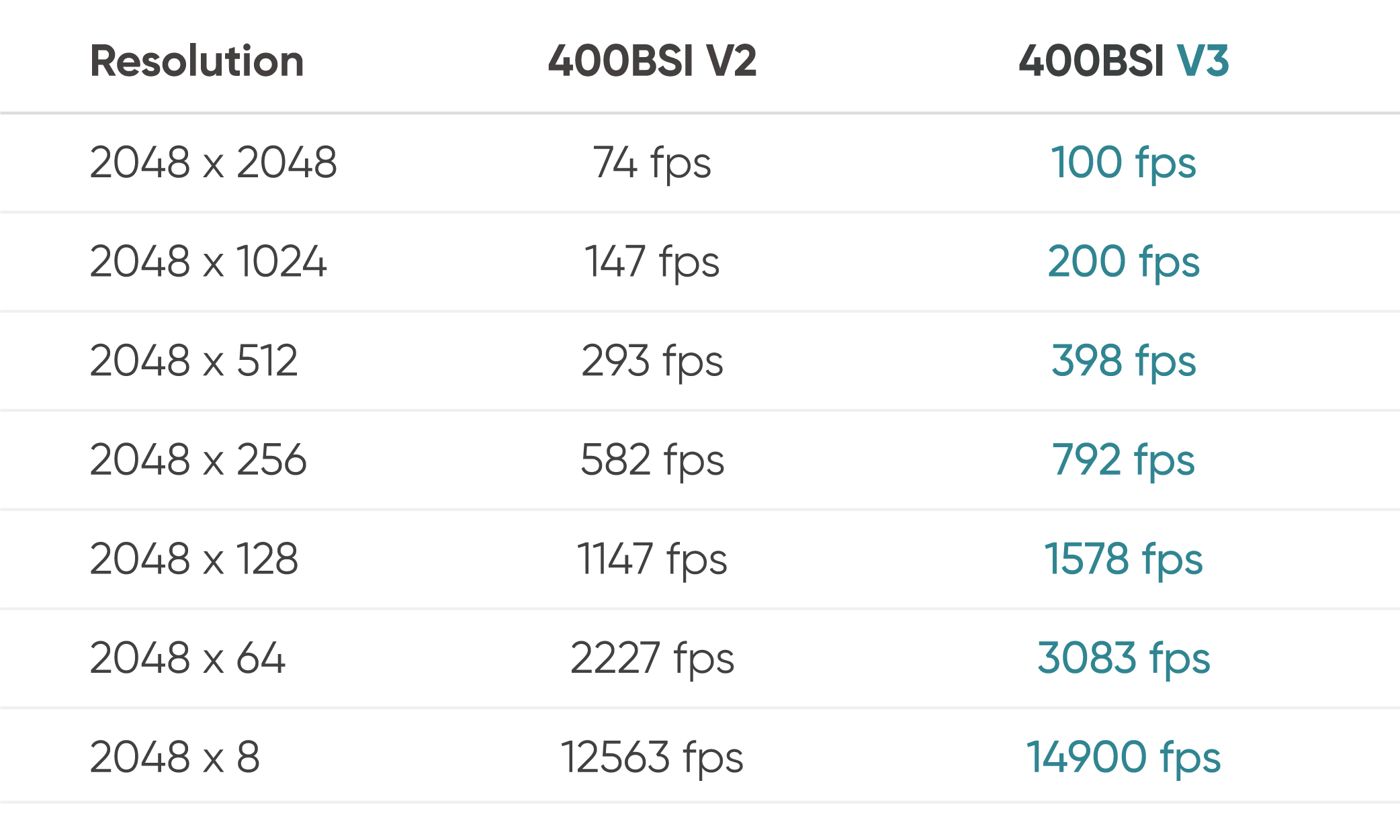

  • 100fps@4MP

    Dhyana 400BSI V3 has been upgraded from 74fps to 100fps, reaching the limit readout speed of 4MP resolution at CameraLink mode. You may also get higher frame rate support by ROI function.

  • Rolling Shutter Control Mode

    Dhyana 400BSI V3 has developed a new technology named as Rolling Shutter Control Mode, which allows users to add defined line time delays or slit heights to synchronize scanning modes in applications such as Light-Sheet Microscopy.

    Rolling Shutter Control Mode

Specification >

  • Model: Dhyana 400BSI V3
  • Sensor Type: BSI sCMOS
  • Sensor Model: GSENSE2020BSI
  • Peak QE: 95%@600nm
  • Color/Mono: Mono
  • Array Diagonal : 18.8mm
  • Effective Area: 13.3mm x 13.3mm
  • Resolution: 2048(H) x 2048(V)
  • Pixel Size: 6.5μm x 6.5μm
  • Full-Well Capacity: Typical: 45ke-
  • Dynamic Range: 90dB
  • Frame Rate: HDR mode: 74fps@CameraLink; 40fps@USB3.0 HighSpeed mode: 100fps@CameraLink
  • Readout Noise: CMS: 1.1e-(Median)/1.2e-(RMS)
  • Shutter Type: Rolling/Global reset
  • Exposure Time: 6.6μs-10s
  • DSNU: 0.2e-
  • PRNU: 0.3%
  • Cooling Method: Air & Liquid
  • Max. Cooling Temperature: 45℃ below ambient
  • Dark Current: Air: 0.15e-/p/s@-15°C; Liquid: 0.10e-/p/s@-25°C
  • Binning: 2x2, 4x4
  • ROI: Support
  • Trigger Mode: Hardware & Software
  • Output Trigger Signals: Exposure start, Global, Readout end, High level, Low level
  • Trigger Interface: SMA
  • Data Interface: USB3.0 & CameraLink
  • Bit Depth: 16bit
  • Optical Interface: C-mount
  • Power Supply: 12V/8A
  • Power Consumption: 45W
  • Dimensions: 85mm x 85mm x 127mm
  • Weight: 995g
  • Software: Mosaic/LabVIEW/Matlab/Micromanager/ MetaMorph
  • SDK: C/C++/C#
  • Operating System: Windows/Linux
  • Operating Environment: Temperature 0~40°C/Humidity 10~85%
+ View all
