Dhyana 2100

Maximising Speed & Resolution in sCMOS

  • 450 fps @ 21MP
  • Global Shutter
  • 29.5mm Diagonal
  • 5120 (H) x 4096 (V)
  • Liquid or Air Cooling
Pricing and Options
  • products_banner
  • products_banner
  • products_banner
  • products_banner

Overview

The Dhyana 2100 is designed to deliver the maximum speed and maximum resolution combination seen yet with a sCMOS sensor. Achieving an amazing 450 frames per second when running in full resolution of 5120 x 4096, it provides amazing high speed data even with low-light signals.

  • High Speed at High Resolution

    Achieving 450 frames per second at 21 million pixels resolution, it allows the observation of fine details without distortion. The Dhyana 2100 achieves this while maintaining image quality standards with the global shutter.

    High Speed at High Resolution

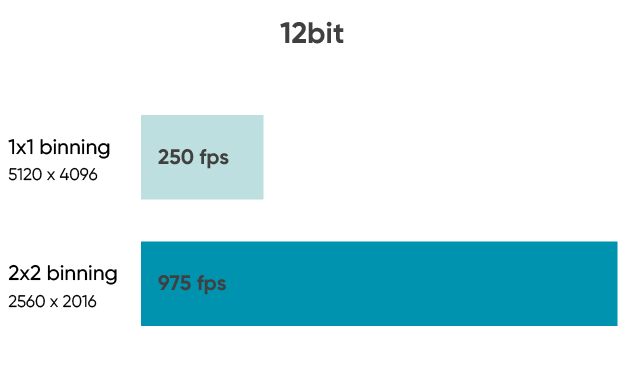

  • 1725fps@5MP
    Fast Binning Mode

    It designed for the detection of low signals at higher speed, not only higher sensitivity and higher dynamic range, but also improving frame rate, achieving 1725 frames per second with a resolution of 5 million pixels.

    1725fps@5MP<br/>Fast Binning Mode

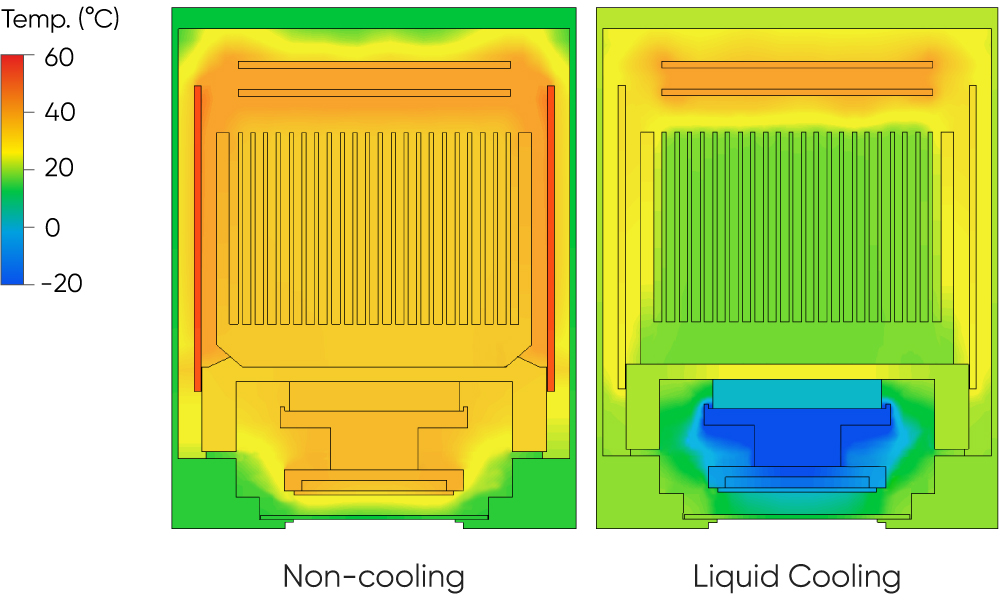

  • Advanced Cooling Technology

    The Dhyana 2100 has two cooling methods, liquid, or air, ensuring low dark current and thermal stability. Cooling is essential when running large format cameras at speed due to the immense amount of heat being generated which can cause not only dark current but measurement variations across the sensor and also over time as sensor temperature changes.

    Advanced Cooling Technology

Specification >

  • Model: Dhyana 2100
  • Sensor Type: FSI CMOS
  • Sensor Model: Gpixel GSPRINT4521
  • Peak QE: 63%@520nm
  • Color/Mono: Mono
  • Array Diagonal : 29.5mm
  • Effective Area: 23.04mm(H) x 18.43mm(V)
  • Resolution: 5120(H) x 4096(V)
  • Pixel Size: 4.5μm x 4.5μm
  • Full-Well Capacity: 28 ke- (12-bit Gain 0); 16.5 ke- (12-bit Gain 2); 120 ke- (binned)
  • Dynamic Range: 68.8 dB (12-bit Gain 2)
  • Frame Rate: 450fps@8bit (CXP12 x 8); 300fps@10bit; 250fps@12bit; 225fps@8bit (CXP12 x 4)
  • Readout Noise: 3.5 e- @12bit
  • Shutter Type: Global
  • Exposure Time: 4μs~10s
  • DSNU: 2.0e-
  • PRNU: 0.12%
  • Cooling Method: Air & Liquid
  • Max. Cooling Temperature: 30℃ below ambient
  • Dark Current: 0.02e-/pixel/s@-10℃ chip temperature
  • Binning: 2x2,4x4,8x8
  • ROI: Support
  • Trigger Mode: Hardware & Software
  • Output Trigger Signals: Exposure start, Readout end
  • Trigger Interface: HIROSE
  • Data Interface: CXP12 (x4/x8)
  • Data Bit Depth: 8bit/10bit/12bit
  • Optical Interface: M52/F-Mount/user Customization
  • Power Supply: DC 24V/6A
  • Power Consumption: ≤120W
  • Dimensions : 95mm x 95mm x 140.5mm
  • Weight: 1816g
  • Software: SamplePro
  • SDK: C/C++/C#
  • Operating System: Windows/Linux
  • Operating Environment: Temperature 0~40°C / Humidity 10~85%
+ View all
