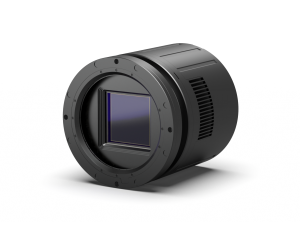

Dhyana 6060BSI

Ultra-large BSI sCMOS camera with CXP high-speed interface.

  • 95%@580nm Peak QE
  • 10μm x 10μm Pixel Size
  • 6144 x 6144 Resolution
  • 26.4fps@12-bit STD
  • CoaXPress 2.0
Pricing and Options

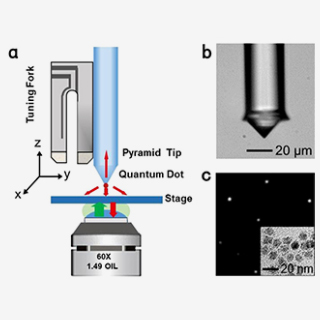

  • products_banner
  • products_banner
  • products_banner
  • products_banner

Overview

The Dhyana 6060 BSI delivers really big sensor performance with 95% QE. With a 86mm diameter sensor made of 10 micron pixels which operates with low noise at high speed. Providing CCD level performance in terms of background and noise performance at speeds which enable a wider range of applications.

  • 95% High QE/Low Noise

    Rise above dim signals and noisy images. Near-perfect Quantum Efficiency means capturing almost every photon that comes your way. Combined with low noise electronics, capture images with high signal-to-noise ratio even when signals are weak.

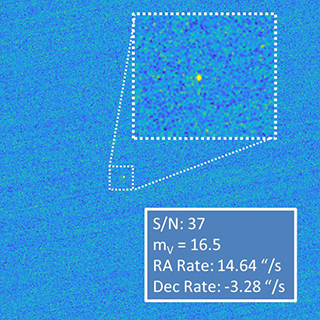

    95% High QE/Low Noise
  • Large Format sCMOS

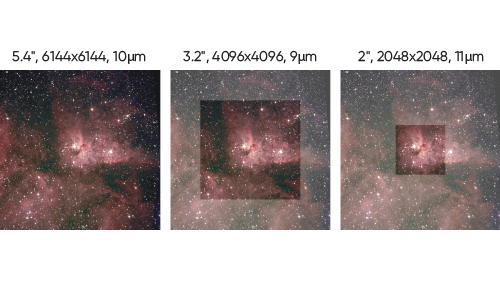

    Extremely large sensor formats offer fantastic imaging efficiency - capture more than ever before in a single snapshot. High pixel counts and large sensor sizes improve your data throughput, recognition precision and provide additional context for your imaging subjects. In lens-based systems, wide viewing angles combined with fine image resolution become possible.

    Large Format sCMOS
  • CXP Interface Drives Speed

    Leveraging the world's leading interface standard for high-speed imaging, you can keep up with dynamic imaging subjects. CoaXPress offers very high speed and precision data transmission, with the simplicity and long cable lengths of coaxial cable.

    CXP Interface Drives Speed

Specification >

  • Model: Dhyana 6060BSI
  • Sensor Type: BSI sCMOS
  • Sensor Model: Gpixel GSENSE6060BSI
  • Color/Mono: Mono
  • Array Diagonal : 86.8 mm
  • Resolution: 36MP, 6144(H) x 6144(V)
  • Pixel Size: 10μm x 10μm
  • Effective Area: 61.4mm x 61.4mm
  • Peak QE: 95%@580nm
  • Frame Rate: 26.4fps@12-bit STD; 11.3fps@12-bit HDR; 8.6fps@14-bit STD
  • Full-Well Capacity: Typical: 102ke-
  • Dynamic Range: 90dB
  • Shutter Type: Rolling
  • Readout noise: 3e-(Median)
  • Exposure time: 12μs-300s
  • DSNU: 1.5e-
  • PRNU: 0.2%
  • Cooling Method: Air & Liquid
  • Max. Cooling: Air: -35℃,Liquid: -45℃
  • Cooling temperature: Air: (Ambient at +20 ): -15°C; Liquid: -25°C@20°C
  • Dark current: Air: 0.25e-/pixel/s; Liquid: 0.15e-/pixel/s
  • Data Interface: CoaXPress2.0
  • Binning: 2x2, 4x4
  • ROI: Support
  • Timestamp Accuracy: 1μs
  • GPS: Support
  • Trigger Mode: Hardware & Software
  • Output Trigger Signals: Exposure, Global, Readout, High level, Low level
  • Trigger Interface: SMA
  • Data Bit Depth: 12bit, 14bit, 16bit
  • Optical Interface: User-customization
  • Power Supply: 12V/10A
  • Power Consumption: <100W
  • Dimensions : φ160mm x 164mm
  • Weight: ~4kg
  • Software: Samplepro/MAXIMDL/Labview/Matlab/EPICS
  • SDK: C/C++/C#
  • Operating System: Windows/Linux
  • Operating Environment: Working: Temperature -35~45℃/Humidity 0~95%;
    Storage: Temperature -35~60℃/Humidity 0~95%
