Dhyana 95 V2

BSI sCMOS camera delivering the highest sensitivity for low light applications.

  • 95 % @ 560 nm
  • 11 μm x 11 μm
  • 2048 (H) x 2048 (V)
  • 48 fps @ 12-bit
  • CameraLink & USB3.0
Pricing and Options
  • products_banner
  • products_banner
  • products_banner
  • products_banner

Overview

The Dhyana 95 V2 is designed to deliver ultimate sensitivity achieving similar results to EMCCD cameras while outperforming its contemporaries in specifications and price. Following on from the Dhyana 95, the first back-illuminated sCMOS camera, the new model offers more functionality and improvements in background quality due to our exclusive Tucsen Calibration Technology.

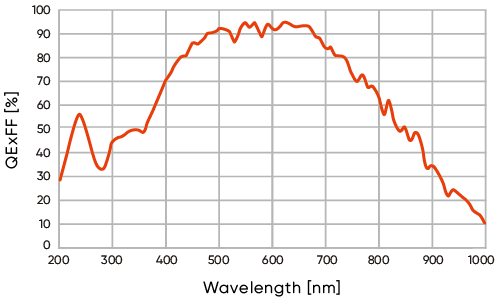

  • 95% QE High sensitivity

    Rise above dim signals and noisy images. With the highest sensitivity, you can capture the weakest signals when you need to. Large 11μm pixels capture almost 3x the light of standard 6.5μm pixels, which combines with near-perfect quantum efficiency to maximize photon detection. Then, low noise electronics deliver high signal to noise ratio even when signals are low.

    95% QE High sensitivity
  • Background Quality

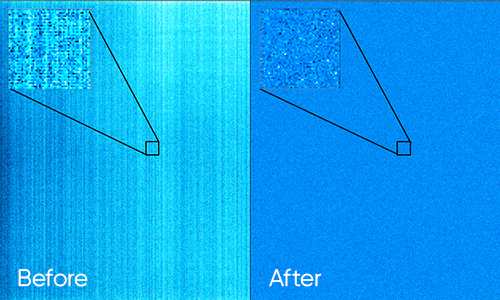

    Exclusive Tucsen Calibration Technology reduces patterns visible in the bias or when imaging very low signal levels. This fine calibration is evidenced by our published DSNU (Dark Signal Non-Uniformity) and PRNU (Photon Response Non Uniformity) values. See it for yourself in our clean bias background images.

    Background Quality
  • Field of View

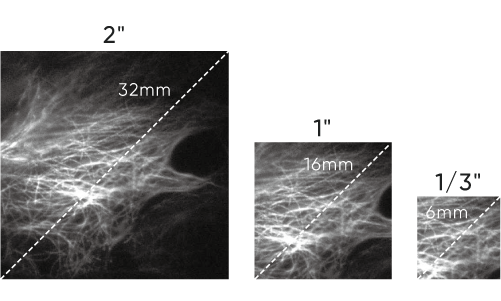

    Massive 32mm sensor diagonal offers fantastic imaging efficiency - capture more than ever before in a single snapshot. High pixel count and large sensor size improves your data throughput, recognition precision and provides additional context for your imaging subjects. For microscope-objective-based imaging, capture everything your optical system can deliver and see your entire sample in one shot.

    Field of View

Specification >

  • Model: Dhyana 95V2
  • Sensor Type: BSI sCMOS
  • Sensor Model: Gpixel GSENSE400BSI
  • Peak QE: 95 % @ 560 nm
  • Color/Mono: Mono
  • Array Diagonal : 31.9 mm
  • Effective Area: 22.5mm x 22.5mm
  • Resolution: 2048 (H) x 2048 (V)
  • Pixel Size: 11 μm x 11 μm
  • Full-Well Capacity: Typ. : 80 ke- @ HDR, 100 ke- @ STD
  • Dynamic Range: Typ. : 90 dB
  • Frame Rate: 24 fps @ 16 bit HDR, 48 fps @ 12 bit STD
  • Shutter Type: Rolling
  • Readout Noise: 1.6 e- (Median) , 1.7 e- (RMS)
  • Exposure Time: 21 μs ~ 10 s
  • DSNU: 0.2 e-
  • PRNU: 0.3 %
  • Cooling Method: Air, Liquid
  • Cooling Temperature : 45 ℃ below ambient (Liquid)
  • Dark Current: 0.6 e-/pixel/s @-10℃
  • Binning: 2 x 2, 4 x 4
  • ROI: Support
  • Timestamp Accuracy: 1 μs
  • Trigger Mode: Hardware, Software
  • Output Trigger Signals: Exposure, Global, Readout, High level, Low level, Trigger Ready
  • Trigger Interface: SMA
  • Data Interface: USB 3.0, CameraLink
  • Data Bit Depth: 12 bit, 16 bit
  • Optical Interface: C-mount / F-mount
  • Power Supply: 12 V / 8 A
  • Power Consumption: 60 W
  • Dimensions : C-mount: 100 mm x 118 mm x 127 mm
    F-mount: 100 mm x 118 mm x 157 mm
  • Weight: 1613 g
  • Software: Mosaic, SamplePro, LabVIEW, MATLAB, Micro-Manager 2.0
  • SDK: C, C++, C#, Python
  • Operating System: Windows, Linux
  • Operating Environment: Working: Temperature 0~40 °C, Humidity 0~85%
    Storage: Temperature 0~60 °C, Humidity 0~90%
