Dhyana 4040BSI

Large format BSI sCMOS camera with cameraLink high-speed interface.

  • 90% QE @550nm
  • 9 μm x 9 μm
  • 4096 (H) x 4096 (V)
  • 16.5 fps @ CL, 9.7 fps @ USB3.0
  • CameraLink & USB3.0
Pricing and Options
  • products_banner
  • products_banner
  • products_banner
  • products_banner

Overview

The Dhyana 4040 BSI delivers big sensor performance with 90% QE. With a 52mm diameter sensor made of 9 micron pixels, it operates with low noise at high speed. Providing CCD level performance in terms of background and noise performance, at speeds that enable a wide range of applications.

  • 90% High QE/Low Noise

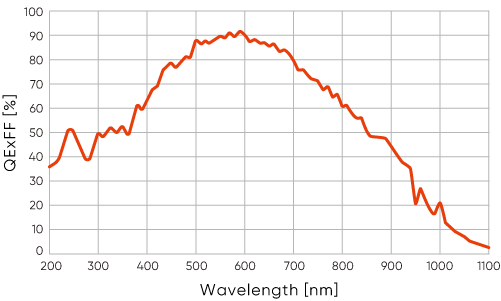

    Rise above dim signals and noisy images. Near-perfect Quantum Efficiency means capturing almost every photon that comes your way. Combined with low noise electronics, capture images with high signal-to-noise ratio even when signals are weak.

    90% High QE/Low Noise
  • Background Quality

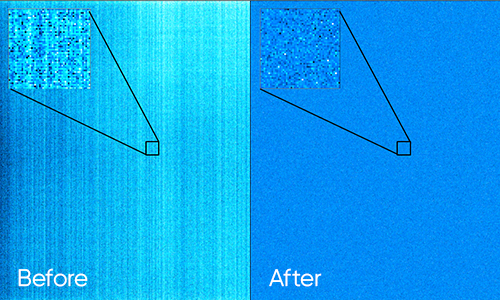

    Exclusive Tucsen Calibration Technology reduces patterns visible in the bias or when imaging very low signal levels. This fine calibration is evidenced by our published DSNU (Dark Signal Non-Uniformity) and PRNU (Photon Response Non Uniformity) values. See it for yourself in our clean bias background images.

    Background Quality
  • Large Format sCMOS

    Extremely large sensor formats offer fantastic imaging efficiency - capture more than ever before in a single snapshot. High pixel counts and large sensor sizes improve your data throughput, recognition precision and provide additional context for your imaging subjects. In lens-based systems, wide viewing angles combined with fine image resolution become possible.

    Large Format sCMOS

Specification >

  • Model: Dhyana 4040BSI
  • Sensor Type: BSI sCMOS
  • Sensor Model: Gpixel GSENSE4040BSI
  • Peak QE: 90 % @ 550 nm
  • Color / Mono: Mono
  • Array Diagonal : 52.1 mm
  • Effective Area: 36.9 mm x 36.9 mm
  • Resolution: 4096 (H) x 4096 (V)
  • Pixel Size: 9 μm x 9 μm
  • Full-Well Capacity: Typ. : 39 ke-
  • Dynamic Range: Typ. : 85 dB
  • Frame Rate: 16.5 fps @ CameraLink, 9.7 fps @ USB 3.0
  • Readout Noise: Typ. : 2.3e-
  • Shutter Type: Rolling
  • Exposure Time: 10 μs ~ 3600 s
  • DSNU: 0.5 e-
  • PRNU: 0.2 %
  • Cooling Method: Air, Liquid
  • Max. Cooling: 45 ℃ below ambient
  • Dark Current: Air: 0.2 e-/pixel/s, Liquid: 0.1 e-/pixel/s
  • Binning: 2 x 2, 4 x 4
  • ROI: Support
  • TimeStamp Accuracy: 1 μs accuracy
  • GPS TimeStamp : 8 ns accuracy
  • Trigger Mode: Hardware, Software
  • Output Trigger Signals: Exposure start, Global, Readout end, High level, Low level
  • Trigger Interface: SMA, CC1
  • Data Interface: USB 3.0, CameraLink
  • Data Bit Depth: 12 bit, 16 bit
  • Optical Interface: Optional F-Mount / User-customization
  • Power Supply: 12 V / 8 A
  • Power Consumption: <45 W
  • Dimensions : 105 mm x 95 mm x 123.5 mm
  • Weight: 2 kg
  • Software: Mosaic1.6, Samplepro, MaximDL, Labview, Matlab
  • SDK: C, C++, C#
  • Operating System: Windows, Linux
  • Operating Environment: Working: Temperature -25 ~ 45 ℃, Humidity 0 ~ 95 %
    Storage: Temperature -35 ~ 60 ℃, Humidity 0 ~ 95 %
+ View all
