Dhyana 401D

Compact 6.5μm sCMOS designed with instrument integration in mind.

  • 18.8mm Diagonal FOV
  • 6.5μm x 6.5μm Pixel Size
  • 2048x2048 Resolution
  • 40fps@16bit, 45fps@8bit
  • USB3.0 Data Interface
Pricing and Options
  • products_banner
  • products_banner
  • products_banner
  • products_banner

Overview

The Dhyana 401D is the sCMOS answer for system integrators who seek sCMOS performance but want to preserve their instrument cogs/cost. Built in a small package using a front illuminated 6.5 micron pixel sensor, the camera delivers what most systems need cost-effective of other contemporaries.

  • Designed for Integration

    As a specialist OEM manufacturer, we understand the challenges of integrating cameras into other hardware. Our experience and standard for excellence in delivery, reliability and support can help bring better products to market, faster.

    Designed for Integration
  • Compact Design

    Our cameras are cleverly designed inside and out to make integration easier. From the casing to the software, we've optimised our design to allow yours to be as space-efficient and cost-effective as possible.

    Compact Design
  • 72% Peak QE

    The Dhyana 401D adopts front-illuminated sCMOS technology with a peak quantum efficiency of 72% and a hardware 2X2 binning function,which make it superior sensitivity for low light imaging.

    72% Peak QE

Specification >

  • Model: Dhyana 401D
  • Sensor Type: FSI sCMOS
  • Sensor Model: Gpixel GSENSE2020
  • Color/Mono: Mono
  • Array Diagonal : 18.8mm
  • Resolution: 4MP, 2048(H) x 2048(V)
  • Pixel Size: 6.5μm x 6.5μm
  • Effective Area: 13.3mm x 13.3mm
  • Peak QE: 72%@595nm
  • Frame Rate: 40fps(16bit), 45fps(8bit)
  • Full-Well Capacity: Typical: 45ke-
  • Shutter Type: Rolling
  • Readout Noise: 2.1e- (Median)
  • Exposure Time: 10μs-10s
  • Binning: 2x2, 4x4
  • ROI: Support
  • Trigger Mode: Hardware & Software
  • Output Trigger Signals: Exposure, Readout, High level, Low level
  • Trigger Interface: HIROSE
  • Data Bit Depth: 16bit & 8bit
  • Optical Interface: M42/C-Mount
  • Data Interface: USB3.0
  • Power Supply: USB3.0
  • Power Consumption: < 4W

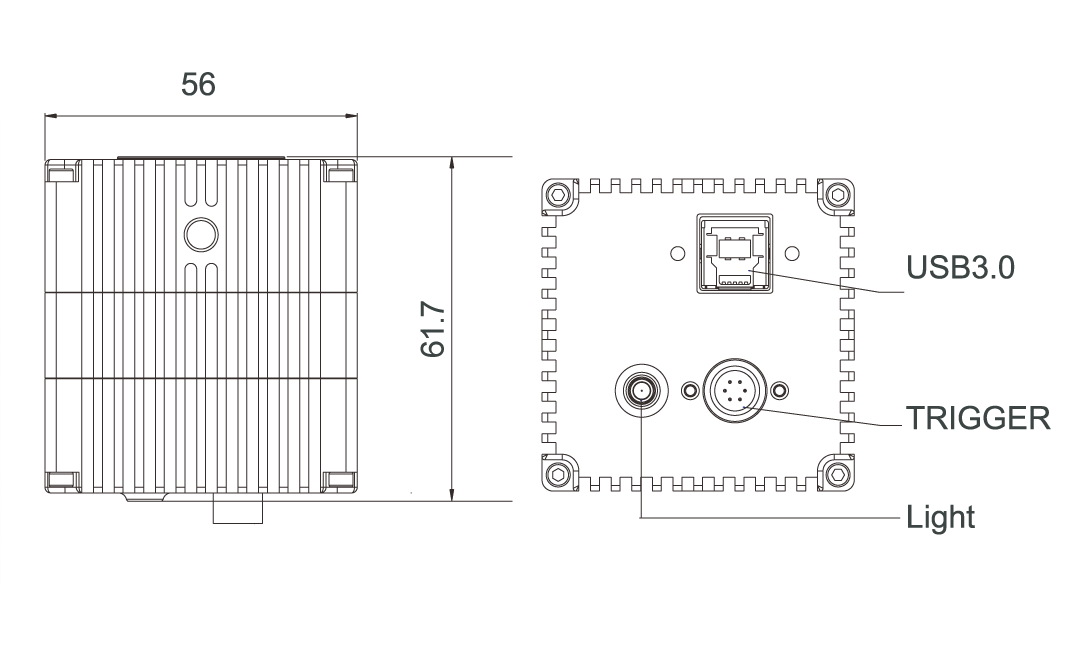

  • Dimensions : 56mm x 56mm x 61.7mm
  • Weight: 305g
  • Software: Mosaic/LabVIEW/Matlab/Micromanager/Samplepro
  • SDK: Support
  • Operating System: Windows/Linux
  • Operating Environment: Temperature 0~40°C / Humidity 10~85%
+ View all

Applications >

Download >

  • Dhyana 401D Brochure

    Dhyana 401D Brochure

    download zhuanfa
  • Dhyana 401D Dimension

    Dhyana 401D Dimension

    download zhuanfa
  • Dhyana401D(201D) External Trigger Instructions

    Dhyana401D(201D) External Trigger Instructions

    download zhuanfa
  • Software-Mosaic V1.6.10

    Software-Mosaic V1.6.10

    download zhuanfa
  • Plugin-Labview ( with user guide )

    Plugin-Labview ( with user guide )

    download zhuanfa
  • Plugin-Matlab ( with user guide )

    Plugin-Matlab ( with user guide )

    download zhuanfa
  • Plugin-MetaXpress ( with user guide )

    Plugin-MetaXpress ( with user guide )

    download zhuanfa
  • Plugin-Micromanager ( with user guide )

    Plugin-Micromanager ( with user guide )

    download zhuanfa
  • Driver-TUCam Camera Driver V1.5.0.1

    Driver-TUCam Camera Driver V1.5.0.1

    download zhuanfa
