MIchrome 5 Pro

5MP Global Shutter CMOS Camera with Live Stitching and Live EDF.

  • 11.1mm Diagonal FOV
  • 2592 x 1944 Resolution
  • 3.45μm x 3.45μm Pixel Size
  • 36fps@5MP
  • USB3.0
  • products_banner
  • products_banner
  • products_banner
  • products_banner

Overview

MIchrome 5 Pro is a High-speed global shutter camera, using SONY’s professional CMOS sensor, with high sensitivity advantages over CCD cameras, suitable for fluorescent imaging applications, global shutter technology can quickly capture images without distortion and deformation

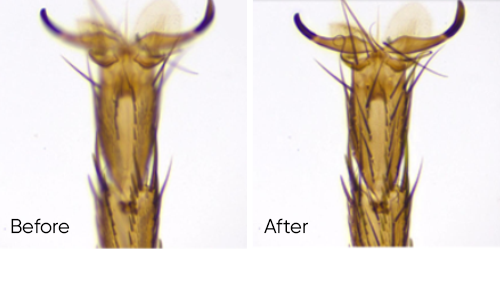

  • Live Stitching

    It can generate large-sized mosaic images in a few seconds while moving the stage, which is light, smooth and worry-free!

    Live  Stitching

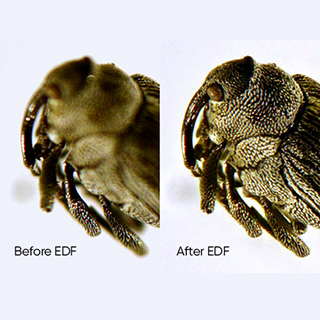

  • Live EDF

    Turning the focus ring to capture different depth of field points while generating clear depth of field images, fast, accurate and efficient.

    Live  EDF

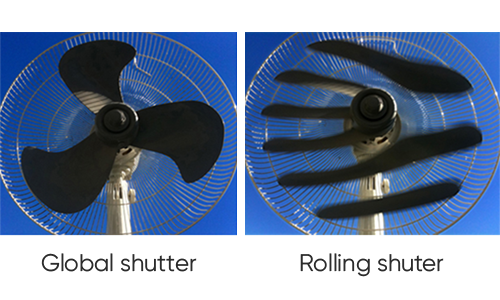

  • Global Shutter Technology

    With global shutter technology, all pixels are exposed simultaneously, which allows accurate tracking and capture of dynamic samples and provides, crisp, undistorted, clear images of fast moving specimens.

    Global Shutter Technology

Specification >

  • Model: MIchrome 5 Pro
  • Sensor Type: CMOS
  • Sensor Model: SONY IMX264LQR-C
  • Color/Mono: Color
  • Array Diagona: 11.1mm
  • Resolution: 5MP, 2448(H) x 2048(V)
  • Pixel Size: 3.45μm x 3.45μm
  • Effective Area: 8.4mm x 7.1mm
  • Shutter Mode: Global
  • Frame Rate: 36fps@USB3.0
  • Exposure Time: 121μs-15s
  • Binning: 2x2, 3x3, 4x4
  • Color Temperature: 2000-15000K
  • PC Software: Mosaic V2
  • Picture Format: TIFF/JPG/PNG/DICOM
  • Multiple Cameras: Supports 4 Cameras Simultaneously in SDK
  • SDK: C/C++, C#, Directshow/Twain
  • Bit Depth: 16/8bit
  • Power: 3W
  • Operating Environment: Temperature: -10~45℃; Humidity: 10%~85%
  • Optical Interface: Standard C Mount
  • Data Interface: USB3.0
  • Dimensions: 68mm x 68mm x 46mm
  • Camera Weight: 327g
  • Operating System: Windows 7/10 (32 Bit/64 Bit)/Mac
  • PC Configuration: CPU: Intel Core i5 or better(Quad or more Core), RAM: 8G or more
+ View all

Applications >

Download >

  • MIchrome Serices Brochure

    MIchrome Serices Brochure

    download zhuanfa
  • MIchrome Serices Dimension

    MIchrome Serices Dimension

    download zhuanfa
  • Software-Mosaic V2.3.1(Windows)

    Software-Mosaic V2.3.1(Windows)

    download zhuanfa
  • Software-Mosaic V2.2.1(Mac)

    Software-Mosaic V2.2.1(Mac)

    download zhuanfa
  • Plugin-Directshow and Twain

    Plugin-Directshow and Twain

    download zhuanfa
  • Driver-TUCam Camera Driver V1.4.0.8

    Driver-TUCam Camera Driver V1.4.0.8

    download zhuanfa

You may also like >

  • product

    MIchrome 20

    20MP USB3.0 CMOS Camera with Live Stitching and Live EDF.

    • 15.86mm Diagonal FOV
    • 5472 x 3648 Resolution
    • 2.4μm x 2.4μm Pixel Size
    • 15fps@20MP
    • USB3.0
  • product

    MIchrome 16

    16MP USB3.0 CMOS Camera with Live Stitching and Live EDF.

    • 7.77mm Diagonal FOV
    • 4608 x 3456 Resolution
    • 1.34μm x 1.34μm Pixel Size
    • 12fps@16MP
    • USB3.0
  • product

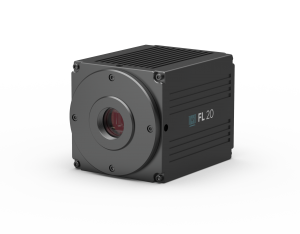

    FL 20
