MIchrome 20

20MP USB3.0 CMOS Camera with Live Stitching and Live EDF.

  • 15.86mm Diagonal FOV
  • 5472 x 3648 Resolution
  • 2.4μm x 2.4μm Pixel Size
  • 15fps@20MP
  • USB3.0
Pricing and Options
  • products_banner
  • products_banner
  • products_banner
  • products_banner

Overview

MIchrome 20 is a high-resolution large-area array camera that combines the advantages of high resolution and high sensitivity and is suitable for fluorescent imaging applications. The 1-inch large target surface can cover the optimal area of the image plane and 20 megapixels can present more detailed images

  • Live Stitching

    It can generate large-sized mosaic images in a few seconds while moving the stage, which is light, smooth and worry-free!

    Live  Stitching
  • Live EDF

    Turning the focus ring to capture different depth of field points while generating clear depth of field images, fast, accurate and efficient.

    Live  EDF

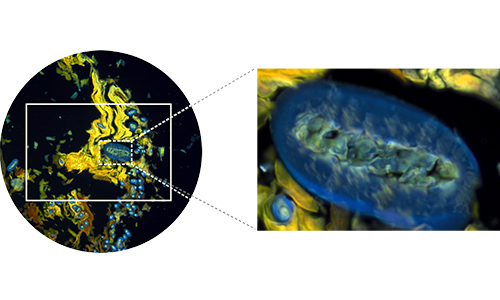

  • 20MP for Capturing High resolution Images at Once

    The FL 20's nearly 16mm diagonal diameter sensor image can cover the most uniform central area of the image plane, with a resolution of up to 20 megapixels, you can capture the high-definition details of your samples in one shot.

    20MP for Capturing High resolution Images at Once

Specification >

  • Model: MIchrome 20
  • Sensor Type: CMOS
  • Sensor Model: SONY IMX183CQJ-J
  • Color/Mono: Color
  • Array Diagonal: 15.86mm
  • Resolution: 20MP, 5472(H) x 3648(V)
  • Pixel Size: 2.4μm x 2.4μm
  • Effective area: 13.1mm x 8.8mm
  • Shutter Mode: Rolling
  • Frame Rate: 15fps@5472x3648
  • Exposure Time: 18μs-15s
  • Binning: 2x2, 3x3, 4x4
  • Color Temperature: 2000-15000K
  • PC Software: Mosaic V2
  • Picture Format: TIFF/JPG/PNG/DICOM
  • Multiple Cameras: Supports 4 Cameras Simultaneously in SDK
  • SDK: C/C++, C#, Directshow/Twain
  • Optical Interface: Standard C Mount
  • Bit Depth: 16/8bit
  • Camera Size: 68mmx68mmx46mm
  • Camera Weight: 327g
  • Data Interface: USB3.0
  • Power: 3W
  • Operating Environment: Temperature:-10~45℃; Humidity: 10%~85%
  • Operating System: Windows 7/10 (32 Bit/64 Bit)/Mac
  • PC Configuration: CPU: Intel Core i5 or better(Quad or more Core), RAM: 8G or more
+ View all

Applications >

Download >

  •  MIchrome Serices Brochure

    MIchrome Serices Brochure

    download zhuanfa
  • MIchrome Serices Dimension

    MIchrome Serices Dimension

    download zhuanfa
  • Software-Mosaic V2.4.0 (Windows)

    Software-Mosaic V2.4.0 (Windows)

    download zhuanfa
  • Software-Mosaic V2.3.1 (Mac)

    Software-Mosaic V2.3.1 (Mac)

    download zhuanfa
  • Plugin-Directshow and Twain

    Plugin-Directshow and Twain

    download zhuanfa
  • Driver-TUCam Camera Driver V1.5.0.1

    Driver-TUCam Camera Driver V1.5.0.1

    download zhuanfa
