TrueChrome 4K Pro

4K CMOS Camera with HDMI and USB3.0 Double Performance.

  • 13.33mm Diagonal FOV
  • 3840 × 2160 Resolution
  • 2.9μm x 2.9μm Pixel Size
  • 30fps@HDMI, 20fps@USB 3.0
  • HDMI, USB3.0, USB2.0, LAN, SD
  • products_banner
  • products_banner
  • products_banner
  • products_banner

Overview

The TrueChrome 4K Pro is opening a new dual-channel mode of microscopic imaging. It not only inherits the shortcut functions from Tucsen HDMI CMOS Camera, but also perfectly transplants Tucsen USB 3.0 camera professional functions like imaging control,  image process, live stitching and live EDF etc.

  • Stronger Image Signal Processor

    The TrueChrome 4K Pro performs a very good professional level at processing a larger amount of 4K resolution data. It not only determine the exposure intensity of complex light scenes, but also accurately restore difficult colors such as blue, purple, and pink, and the speed up to 30fps@4K.

    Stronger Image Signal Processor
  • Live Stitching

    It can generate large-sized mosaic images in a few seconds while moving the stage, which is light, smooth and worry-free!

    Live Stitching
  • Live EDF

    Turning the focus ring to capture different depth of field points while generating clear depth of field images, fast, accurate and efficient.

    Live EDF

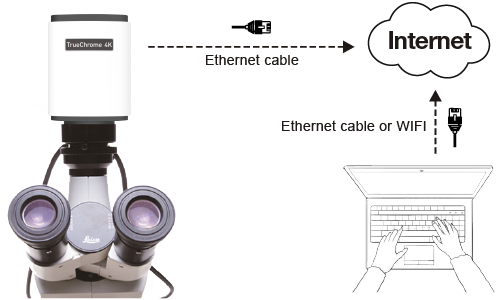

  • Flexible Internet Application

    Only by connecting the TrueChrome 4K Pro and a computer with the Mosaic V2 software to Internet, you can use Mosaic V2 software to remotely control all features of the camera, and the TrueChrome 4K can still deliver high speeds of up to 30fps @4K full resolution, even remotely, without affecting the experience.

    Flexible Internet Application

Specification >

  • Model: TrueChrome 4K Pro
  • Sensor Type: CMOS
  • Sensor Model: IMX485LQJ-C
  • Color/Mono: Color
  • Array Diagonal: 13.33mm(1/1.2)
  • Resolution: 8MP, 3840(H) x 2160(V)
  • Pixel size: 2.9 μm (H) × 2.9 μm (V)
  • Effective area: 11.1mm x 6.3mm
  • Shutter Mode: Rolling
  • Frame Rate: 20fps@USB 3.0, 30fps@HDMI, 30fps@LAN
  • Exposure Time: 0ms~1S
  • SD format: FAT32
  • Color Temperature: 1800-10000K
  • Software: HDMI: Cloud 1.0 Ver USB: Mosaic V2
  • HDMI Key Settings: Preview: 3840x2160, Capture: 3840x2160, Vedio recording: 30fps@3840x2160
  • Picture Format: HDMI: JPG/TIF USB: TIFF/JPG/PNG/DICOM
  • Multiple Cameras: Supports 4 Cameras Simultaneously in SDK
  • Optical Interface: Standard C Mount
  • Power: 2.4W
  • Dimensions: 105.7mm x 78mm x 70.8mm
  • Weight: 505g
  • Data Interface: HDMI, USB3.0, USB2.0, LAN
  • Operating Environment: Temperature: -10~45℃; Humidity: 10%~85%
  • Operating System: Windows 7/10 (32 Bit/64 Bit)/Mac
  • PC Configuration: CPU: Intel Core i5 or better(Quad or more Core), RAM: 8G or more
+ View all

Applications >

Download >

  • TrueChrome 4K Pro Brochure

    TrueChrome 4K Pro Brochure

    download zhuanfa
  • TrueChrome 4K Pro Dimension

    TrueChrome 4K Pro Dimension

    download zhuanfa
  • Software-Mosaic V2.3.1(Windows)

    Software-Mosaic V2.3.1(Windows)

    download zhuanfa
  • Software-Mosaic V2.2.1(Mac)

    Software-Mosaic V2.2.1(Mac)

    download zhuanfa
  • Plugin-Directshow and Twain

    Plugin-Directshow and Twain

    download zhuanfa
  • Driver-TUCam Camera Driver V1.4.0.8

    Driver-TUCam Camera Driver V1.4.0.8

    download zhuanfa
