Overview

TrueChrome 4K WiFi not only integrates the quick operation functions of HDMI cameras and the advanced image processing functions of USB3.0 cameras, but also adds Mosaic App software that supports Apple and Android systems. Through this App, users can directly shoot, measure and save images through wireless devices such as mobile phones/iPads, which is very suitable for remote interactive application scenarios such as microscopy teaching.

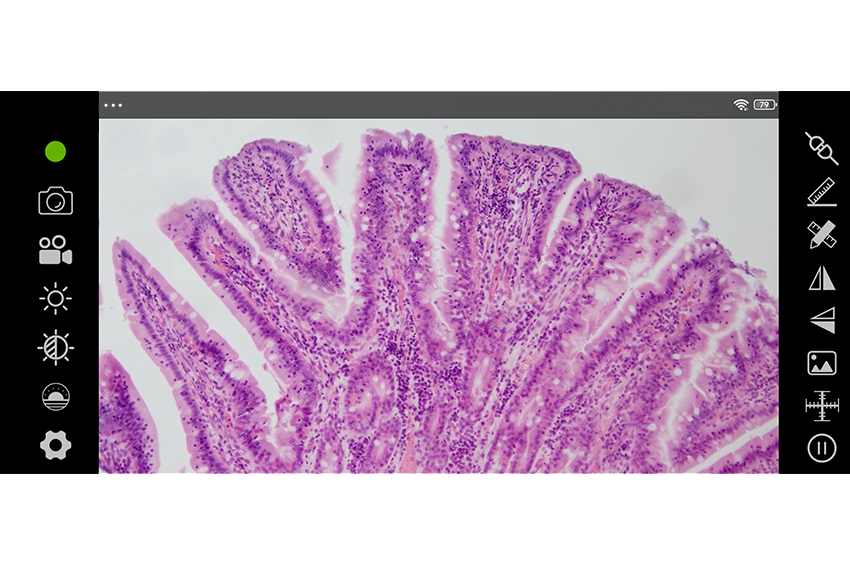

Wi-Fi Connectivity Function

TrueChrome 4K WiFi has added Mosaic App software that supports Apple and Android systems. Through this software, users can directly shoot, measure and save images through wireless devices such as mobile phones/iPads, which is very suitable for remote interactive scenarios such as microscopy teaching.
Live Image Stitching for Large-Area Microscopy

The TrueChrome 4K Pro can generate large-sized mosaic images in a few seconds while moving the stage, which is smooth and easy!
Extended Depth of Field (EDF) for Clearer Microscopic Images

While turning the focus ring to image different depth-of-field points, the TrueChrome 4K WiFi automatically generates clear, large depth-of-field images quickly, accurately and efficiently.

Specification >

Model: TrueChrome 4K WIFI
Color/Mono: Color
Array Diagonal: 13.33 mm (1/1.2")
Resolution: 8MP, 3840(H) x 2160(V)
Pixel Size: 2.9 μm (H) × 2.9 μm (V)
Effective Area: 11.1 mm x 6.3 mm
Shutter Mode: Rolling
Frame Rate: 30 fps @ USB 3.0, 25 fps @ HDMI, 30 fps @ LAN
Exposure Time: 1ms- 10 s
SD Format: FAT 32
Color Temperature: 1800-10000K
Software: HDMI: Embedded software; PC: Mosaic V3
HDMI Key Settings: Preview: 3840 x 2160, 1920x1080; Capture: 3840 x 2160, 1920x1080; Vedio recording: 30 fps @ 3840 x 2160
Picture Format: HDMI: JPG/TIF ; USB: TIFF/JPG/PNG/DICOM
Multiple Cameras: Supports 4 Cameras Simultaneously in SDK
Optical Interface: Standard C Mount
Power: 2.4 W
Dimensions: 105.7 mm x 78 mm x 70.8 mm
Weight: 505 g
Data Interface: HDMI, USB3.0, USB2.0, LAN，Wi-Fi
Operating Environment: Temperature: -10~45℃; Humidity: 10%~85%
Operating System: Win 10 (64 Bit), Mac
PC Configuration: CPU: Intel Core i5 or better(Quad or more Core), RAM: 8G or more
