Overview

The Aries 6506 achieves perfect combination of sensitivity, large FOV and high speed performance. The advantages are not only based on the sensor specifications, but more importantly, the rich option of imaging modes, easy but stable data interface, and compact design, make it an ideal choice for most challenging scientific applications.

Ultimate Sensitivity

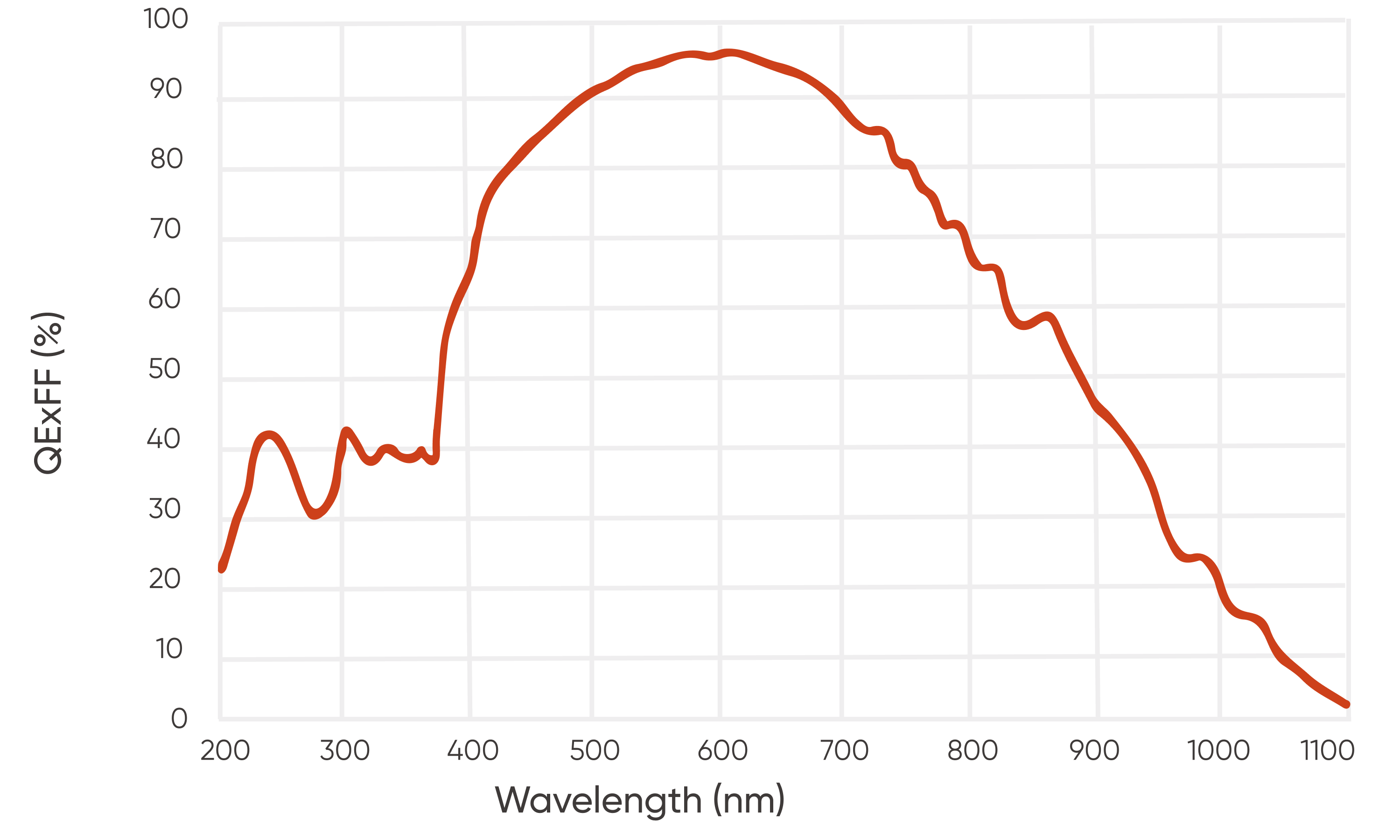

The Aries 6506 uses the latest GSense6510BSI sensor, with peak QE of 95% and read noise as low as 0.7e-, achieving high sensitivity to drive speed, minimal sample damage and fast switching on multi-dimensional acquisitions.
Useable Full Well Capacity for High Speed Acquistion

Measuring fast changes in signal requires not only high speed, but also large enough full well capacity to resolve that change. For example, if a high speed of 500 fps only provide you 200e- full well, your image details will be saturated before usable measurements can be made. Aries 6506 delivers 200 fps with user seletable full well of 1240e- to 20,000e-, resulting much better quality on your intensity measurements.
29.4 mm Diagonal FOV

The Aries 6510 camera's 29.4 mm diagonal FOV delivers the largest field of view seen with a 6.5 micron pixel camera, ensuring you drive more data per image and higher experiment throughput.
GigE Interface Drives Speed & Simplicity

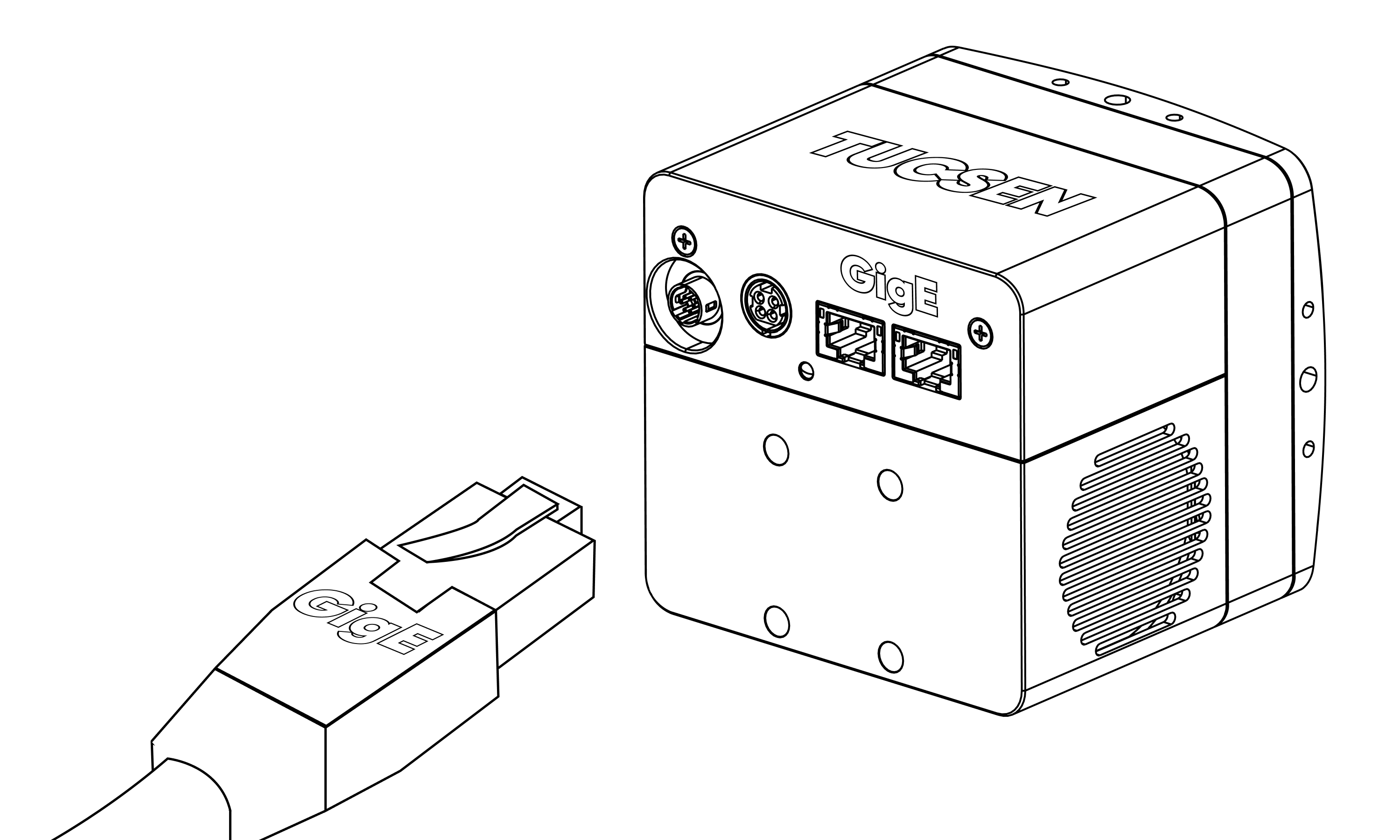

The Aries 6506 uses standard GigE data interface, which delivers high quality data transferring without the need for an expensive frame grabber, bulky cables, nor complicated boot sequence seen with custom data interfaces.

Specification >

Model: Aries 6506
Sensor Type: BSI sCMOS
Sensor Model: Gpixel GSENSE6510BSI
Peak QE: 95%
Chrome: Mono
Array Diagonal: 22 mm
Effective Area: 15.7 mm x 15.7 mm
Resolution: 2400 (H) x 2400 (V)
Pixel Size: 6.5 μm x 6.5 μm
Readout Mode: Dynamic: HDR

Speed: High / Mid / Low gain

Sensitivity: Standard / Low Noise
Bit Depth: Dynamic: 16bit
Speed: 11bit

Sensitivity: 12bit
Frame Rate: Dynamic: 111 fps @ HDR

Speed: 200 fps @ High / Mid / Low gain

Sensitivity: 117 fps @ Standard, 6.9 fps @ Low Noise
Readout Noise : Dynamic: 1.8 e- @ HDR

Speed:1.8 e- @ High gain, 3.6 e- @ Mid gain, 9.8 e- @ Low gain

Sensitivity: 1.3 e- @ Standard, 0.7 e- @ Low Noise
Full Well Capacity: Dynamic: 13.7 Ke- @ HDR

Speed: 1.24 Ke- @ High gain, 4.5 Ke- @ Mid gain, 20 Ke- @ Low gain

Sensitivity: 1.55 Ke-@ Standard, 0.73 Ke- @ Low Noise
Dynamic Range: 77 dB @ Dynamic-HDR
Shutter Mode: Rolling, Global Reset
Exposure Time: 6 μs-10 s
Cooling Method: Air, Liquid
Cooling Temperature: Air: 0℃ (Ambient temperature 25℃), Liquid:-10℃ (Liquid temperature 20℃)
Dark Current : 1.3 e-/pixel/s @ 0℃；0.6 e-/pixel/s @ -10℃
Image Correction: DPC
Binning: 2 x 2, 4 x 4
ROI: Support
Timestamp Accuracy: 1 μs
Trigger Mode: Hardware, Software
Output Trigger Signals: High, Low, Readout End, Global Exposure, Exposure Start, Trigger Ready, First Row, Any Row
Trigger Interface: Hirose-6-pin
Data Interface: 2 x 10 GigE
Optical Interface: C Mount
Power Supply: 12 V / 8.5 A
Power Consumption: ≤ 55 W
Dimensions: 95 mm (H) x 100 mm (W) x 100 mm (L)
Camera Weight: 1350g
Software: Mosaic V3, SamplePro, LabVIEW, MATLAB, Micro-manager 2.0
SDK: C / C++ / C# / Python
Operating System: Windows, Linux
Operating Environment: Working: Temperature 0~40 °C, Humidity 10~85 %；

Storage: Temperature -10~60 °C, Humidity 0~85 %
