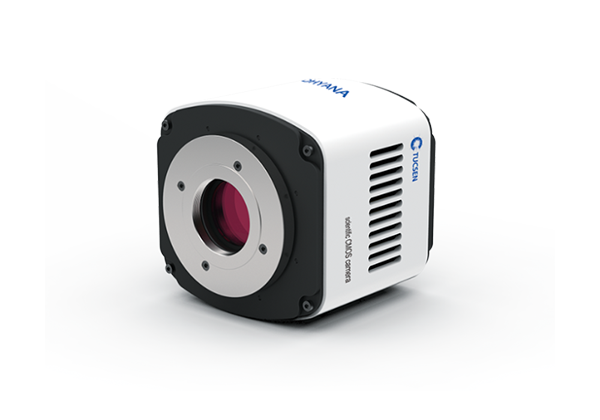

Dhyana 400DC

4MP color FSI sCMOS camera for low light imaging.

  • Color sCMOS
  • 6.5μm x 6.5μm Pixel Size
  • 2048 x 2044 Resolution
  • 22fps@8bit, 16fps@16bit
  • USB3.0 Data Interface
Pricing and Options
  • products_banner
  • products_banner
  • products_banner
  • products_banner

Overview

Tucsen Dhyana 400DC provides a color solution for low light fluorescence imaging, which can solve the contradiction that ordinary color cameras are not sensitive enough and ordinary mono cameras cannot provide color information, with 6.5 micron pixel size perfectly matched to high magnification microscopes.

  • 16bit Color Reproduction

    The Dhyana 400DC can process color with a level of precision that imitates the color sensitivity of the human eye, producing extreme-high color definition. The 16-bit ADC guarantees high-quality image tone and ensures detailed differences can be resolved, making the monitor image indistinguishable from the eyepiece view.

    16bit Color Reproduction
  • Camera Cooling Technology

    The Dhyana 400DC operates at -15 °C to ensure long-term reliable operation, significantly reducing the hot pixels caused by the accumulation of dark current, and obtaining a purer fluorescent background image.

    Camera Cooling Technology
  • Optical Matched Pixel Size

    Get the most from your optical setup. 6.5μm pixels perfectly match the ideal pixel size for High-NA 100x, 60x and 40x microscope objectives, offering optimal spatial sampling and sensitivity. This size also offers well-balanced imaging for lens-based optical setups.

    Optical Matched Pixel Size

Specification >

  • Model: Dhyana 400DC
  • Sensor Type: FSI sCMOS
  • Sensor Model: Gpixel GSENSE2020s
  • Color/Mono: Color
  • Array Diagonal : 18.8mm
  • Resolution: 4MP, 2048(H)x2044(V)
  • Pixel Size: 6.5μmx6.5μm
  • Effective Area: 13.3mmx13.3mm
  • Readout Noise: HighGain: 1.7e-
  • Frame Rate: 22fps@8bit; 16fps@16bit
  • Dynamic Range: 85dB
  • Full-Well Capacity: Typical: 30ke-
  • Shutter Type: Rolling
  • Exposure Time: 21μs-10s
  • Cooling Method: Forced air
  • Cooling Temperature: Forced air ( Ambient at +25℃): -10℃
  • Dark Current: 0.6 e-/pixel/s @ 0℃;0.35 e-/pixel/s @ -10℃
  • Binning: 2x2
  • ROI: Support
  • Trigger Mode: Hardware & Software
  • Output Trigger Signals: Exposure, Global, Readout
  • Data Interface: USB3.0
  • Trigger Interface: Hirose
  • Data Bit Depth: 16bit
  • Optical Interface: C-mount
  • Power Supply: 12V/8A
  • Power Consumption: 50W
  • Dimensions : 120mmx119mmx121mm
  • Weight: 1853g
  • Software: Mosaic / LabVIEW / Matlab / Micromanager
  • SDK: Support
  • Operating System: Windows/Linux
  • Operating Environment: Temperature 0~40°C / Humidity 10~85%
+ View all

Applications >

Download >

  • Dhyana 400DC Brochure

    Dhyana 400DC Brochure

    download zhuanfa
  • Dhyana 400DC Dimension

    Dhyana 400DC Dimension

    download zhuanfa
  • Software-Mosaic V1.6.8

    Software-Mosaic V1.6.8

    download zhuanfa
  • Plugin-Labview ( with user guide )

    Plugin-Labview ( with user guide )

    download zhuanfa
  • Plugin-Matlab ( with user guide )

    Plugin-Matlab ( with user guide )

    download zhuanfa
  • Plugin-Micromanager ( with user guide )

    Plugin-Micromanager ( with user guide )

    download zhuanfa
  • Driver-TUCam Camera Driver V1.4.0.8

    Driver-TUCam Camera Driver V1.4.0.8

    download zhuanfa
