GT 2.0

2MP USB2.0 CMOS Camera with Frame Rate Greatly Improved.

  • 6.23mm Diagonal FOV
  • 1920 x 1080 Resolution
  • 2.8μm x 2.8μm Pixel Size
  • 30fps@2MP
  • USB2.0
Pricing and Options
  • products_banner
  • products_banner
  • products_banner
  • products_banner

Overview

The GT 2.0 is a 2MP CMOS camera that adopts Tucsen’s innovative graphics acceleration technology, which greatly improves the USB 2.0 frame rate under the premise of ensuring the original image output.  This makes the GT 2.0 the first choice for users wanting simple and economical microscopic imaging.

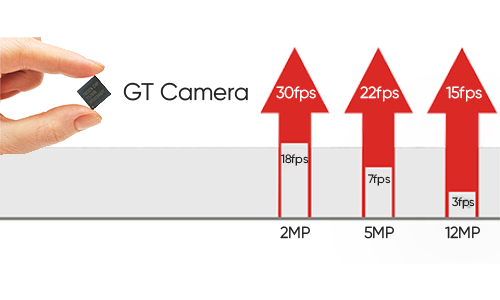

  • The Fastest USB 2.0 Camera

    The GT 2.0 adopts Tucsen’s graphics accelerated technology and may be the fastest USB 2.0 camera available, with a frame rate 5 times faster than ordinary USB 2.0 cameras.

    The Fastest USB 2.0 Camera
  • Perfect Color Solutions

    Color solutions for biological and industrial applications can be selected to help you always obtain ideal images in different scenarios, such as pathological images with true colors or metal images with wide dynamic effects.

    Perfect Color Solutions

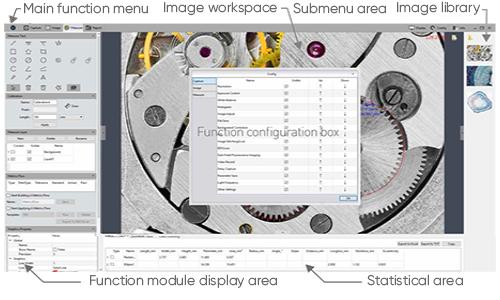

  • User Friendly Software

    The GT imaging software redefines image acquisition, keeping the best operating procedures in an easy-to-use interface, significantly reducing operating time and improving productivity.

    User Friendly Software

Specification >

  • Model: GT 2.0
  • Sensor Type: CMOS
  • Sensor Model: SONY IMX323LQN-C
  • Color/Mono: Color
  • Array Diagonal: 6.23 mm
  • Resolution: 2MP, 1920(H) x 1080(V)
  • Pixel Size: 2.8 μm x 2.8 μm
  • Effective Area: 5.4mm x 3.0mm
  • Shutter Mode: Rolling
  • Frame Rate: 30 fps @ USB 2.0
  • Exposure Time: 1μs-1s941ms
  • PC Software: Mosaic V2
  • Picture Format: TIFF/JPG/PNG/DICOM
  • Multiple Cameras: Supports 4 Cameras Simultaneously in SDK
  • SDK: C/C++, C#, Directshow/Twain
  • Optical Interface: Standard C Mount
  • Power: 2w
  • Dimensions: 68mm x 68mm x 42.5mm
  • Camera Weight: 236g
  • Operating System: Windows 7/10 (32 Bit/64 Bit)/Mac
  • PC Configuration: CPU: Intel Core i5 or better(Quad or more Core); RAM: 8G or more
  • Data Interface: USB2.0
  • Operating Environment: Temperature: 0~40℃; Humidity: 10%~85%
+ View all

Applications >

Download >

  • GT Series Brochure

    GT Series Brochure

    download zhuanfa
  • GT Series Dimensions

    GT Series Dimensions

    download zhuanfa
  • GT Series User Manual

    GT Series User Manual

    download zhuanfa
  • Software-Mosaic V2.4.1 (Windows)

    Software-Mosaic V2.4.1 (Windows)

    download zhuanfa
  • Software-Mosaic V2.3.1 (Mac)

    Software-Mosaic V2.3.1 (Mac)

    download zhuanfa
  • Plugin-Directshow and Twain

    Plugin-Directshow and Twain

    download zhuanfa
  • Driver-TUCam Camera Driver

    Driver-TUCam Camera Driver

    download zhuanfa
