HD Lite

1080P HDMI CMOS Camera Only with Capture.

  • 7.13mm Diagonal FOV
  • 2592 x 1944 Resolution
  • 2.9μm x 2.9μm Pixel Size
  • 25fps@HDMI, 15fps@USB2.0
  • USB2.0, HDMI, SD
Pricing and Options
  • products_banner
  • products_banner
  • products_banner
  • products_banner

Overview

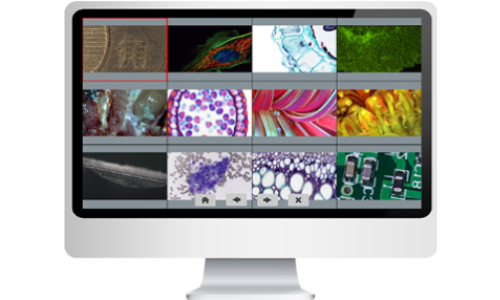

The HD Lite is a very streamlined HDMI CMOS Camera , which designed for fast image and video capture, built-in perfect color restoration algorithm, image acquisition, processing functions, no computer required, very easy to use.

  • 5MP CMOS Camera

    HD Lite uses a new 5 megapixel HD image sensor. The detail is more clearly presented, providing for excellent image quality.

    5MP CMOS Camera
  • Perfect Color Reproduction

    TUCSEN's color processing is capable of a new level of precision, matches the monitor image to the eyepiece view, produces extremely-high color definition.

    Perfect Color Reproduction
  • Intelligent Image Processing

    HD Lite automatically analyzes the acquired images and optimizes the white balance, exposure time and saturation, to present perfect images. Whatever for bright field bio imaging or dark field birefringent crystal imaging, HD Lite delivers ideal images, barely needing any parameter adjustment.

    Intelligent Image Processing

Specification >

  • Model: HD Lite
  • Sensor Type: CMOS
  • Sensor Model: ON MT9P001I12STC
  • Color/Mono: Color
  • Array Diagonal: 7.13mm
  • Resolution: 2MP, 2592(H)x1944(V)
  • Pixel Size: 2.2μm x 2.2μm
  • Effective area: 5.7mm x 4.3mm
  • Shutter Mode: Rolling
  • Frame Rate: 15fps@USB2.0, 15fps@HDMI
  • Exposure Time: 1ms-2s
  • SD Format: FAT32
  • Color Temperature: 1800-10000K
  • Software: HDMI: Cloud 1.0 Ver; USB: Mosaic V2
  • HDMI Key Settings: Preview: 1920x1080; Capture: 2592x1944; Vedio recording: 15fps@1920x1080
  • Picture Format: HDMI: JPG/TIF; USB: TIFF/JPG/PNG/DICOM
  • Multiple Cameras: Supports 4 Cameras Simultaneously in SDK
  • Optical Interface: Standard C Mount
  • Power: 2.4W
  • Dimensions: 90.7mm x 74mm x 67.2mm
  • Weight: 265g
  • Data Interface: HDMI, USB2.0, SD card
  • Operating Environment: Temperature: -10~45℃; Humidity: 10%~85%
  • Operating System: Windows 7/10 (32 Bit/64 Bit)/Mac
  • PC configuration: CPU: Intel Core i5 or better(Quad or more Core); RAM: 8G or more
+ View all

Applications >

Download >

  • TrueChrome Serices Brochure

    TrueChrome Serices Brochure

    download zhuanfa
  • HD Lite Dimension

    HD Lite Dimension

    download zhuanfa
  • Software-Mosaic V2.4.0 (Windows)

    Software-Mosaic V2.4.0 (Windows)

    download zhuanfa
  • Software-Mosaic V2.3.1 (Mac)

    Software-Mosaic V2.3.1 (Mac)

    download zhuanfa
  • Plugin-Directshow and Twain

    Plugin-Directshow and Twain

    download zhuanfa
  • Driver--TUCam Camera Driver V1.5.0.1

    Driver--TUCam Camera Driver V1.5.0.1

    download zhuanfa

You may also like >

  • product

    TrueChrome 4K Pro

    4K CMOS Camera with HDMI and USB3.0 Double Performance.

    • 13.33mm Diagonal FOV
    • 3840 × 2160 Resolution
    • 2.9μm x 2.9μm Pixel Size
    • 30fps@HDMI, 20fps@USB 3.0
    • HDMI, USB3.0, USB2.0, LAN, SD
  • product

    TrueChrome AF

    1080P HDMI CMOS Camera with Capture, Measurement and Autofocus.

    • 6.46mm Diagonal FOV
    • 1920 x 1080 Resolution
    • 2.9μm x 2.9μm Pixel Size
    • 25fps@HDMI, 35fps@USB2.0
    • HDMI, USB 2.0, SD
  • product

    TrueChrome Metrics

    1080P HDMI CMOS Camera with Capture and Measurement.

    • 6.46mm Diagonal FOV
    • 1920 x 1080 Resolution
    • 2.9μm x 2.9μm Pixel Size
    • 25fps@HDMI, 30fps@USB2.0
    • HDMI, USB 2.0, SD
