TrueChrome Metrics

1080P HDMI CMOS Camera with Capture and Measurement.

  • 6.46mm Diagonal FOV
  • 1920 x 1080 Resolution
  • 2.9μm x 2.9μm Pixel Size
  • 25fps@HDMI, 30fps@USB2.0
  • HDMI, USB 2.0, SD
Pricing and Options
  • products_banner
  • products_banner
  • products_banner
  • products_banner

Overview

The TrueChrome Metrics is a very classic HDMI CMOS Camera,  built-in perfect color restoration algorithm, image acquisition, processing, measurement functions, no computer required, very easy to use.

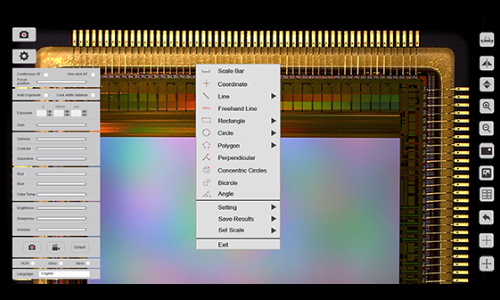

  • Quick capture and measurement functions

    The TrueChrome Metrics not only provides fast image processing and shooting functions, but also rich measurement tools, including freehand line, rectangle, polygon, circle, bicircle, angle, point-line distance and much more with Three different length units of millimeter, centimeter, and micrometer.

    Quick capture and measurement functions
  • Perfect Color Reproduction

    TUCSEN's color processing is capable of a new level of precision, matches the monitor image to the eyepiece view, produces extremely-high color definition.

    Perfect Color Reproduction
  • Multi-language Settings

    TrueChrome Metrics allows free switching of eight local languages, including English, Chinese Simplified, Traditional Chinese, German, Italian, French, Korean and Japanese.

    Multi-language Settings

Specification >

  • Model: TrueChrome Metrics
  • Sensor Type: CMOS
  • Sensor Model: SONY IMX307LQR-C
  • Color/Mono: Color
  • Array Diagonal: 6.46mm
  • Resolution: 2MP, 1920(H)x1080(V)
  • Pixel Size: 2.9μm x 2.9μm
  • Effective area: 5.6mm x 3.1mm
  • Shutter Mode: Rolling
  • Frame Rate: 30fps@USB2.0, 25fps@HDMI
  • Exposure Time: 1ms-10s
  • SD Format: FAT32
  • Color Temperature: 1800-10000K
  • Software: HDMI: Cloud 1.0 Ver USB: Mosaic V2
  • HDMI Key Settings: Preview: 1920x1080; Capture: 3264x1840; Vedio recording: 25fps@1920x1080
  • Picture Format: HDMI: JPG/TIF; USB: TIFF/JPG/PNG/DICOM
  • Multiple Cameras: Supports 4 Cameras Simultaneously in SDK
  • Optical Interface: Standard C Mount
  • Power: 2.4W
  • Weight: 265g
  • Dimensions: 90.7mm x 78mm x 70.8mm
  • Data Interface: HDMI, USB2.0, SD card
  • Operating Environment: Temperature: -10~45℃; Humidity: 10%~85%
  • Operating System: Windows 7/10 (32 Bit/64 Bit)/Mac
  • PC Configuration: CPU: Intel Core i5 or better(Quad or more Core); RAM: 8G or more
+ View all

Applications >

Download >

  • TrueChrome Metrics Brochure

    TrueChrome Metrics Brochure

    download zhuanfa
  • TrueChrome Metrics Dimension

    TrueChrome Metrics Dimension

    download zhuanfa
  • Software-Mosaic V2.4.0 (Windows)

    Software-Mosaic V2.4.0 (Windows)

    download zhuanfa
  • Software-Mosaic V2.3.1 (Mac)

    Software-Mosaic V2.3.1 (Mac)

    download zhuanfa
  • Plugin-Directshow and Twain

    Plugin-Directshow and Twain

    download zhuanfa
  • Driver--TUCam Camera Driver V1.5.0.1

    Driver--TUCam Camera Driver V1.5.0.1

    download zhuanfa
