Optogenetic Imaging

Application Challenges

Optogenetics introduces light-sensitive proteins into target cells, enabling precise optical control of membrane potential under specific illumination. This approach allows millisecond-scale manipulation of individual cells or neural circuits, providing a powerful tool for studying neural circuit function, disease mechanisms, and drug effects. Applications include dissecting circuit–behavior relationships in neuroscience, investigating neurological disorders such as epilepsy and Parkinson’s disease, and modeling cardiac electrophysiology and arrhythmias.

Optogenetics experiments often combine widefield fluorescence, two-photon microscopy, or fiber-optic stimulation platforms. These studies require spatially precise targeting of cells or circuits while dynamically capturing rapid electrical activity, imposing extremely high demands on both spatial and temporal resolution of imaging systems.

1-7 Optogenetic Imaging
Dhyana 400BSI V3 800x600

Dhyana 400BSI V3

Classic 6.5 µm BSI sCMOS Camera
Pixel Size: 6.5 µm, optimized for 40×–60× high-NA objectives.
Shutter Modes: Multiple rolling shutter modes, tailored for scanning and light-sheet imaging.
Calibration: PRNU/DSNU correction ensures uniform background for accurate quantitative analysis.
Interface: USB 3.0 and Camera Link.
Cooling: Water + air cooling design for stable, low-noise operation.
Compact Design: Lightweight at 995 g, low power consumption of 45 W.

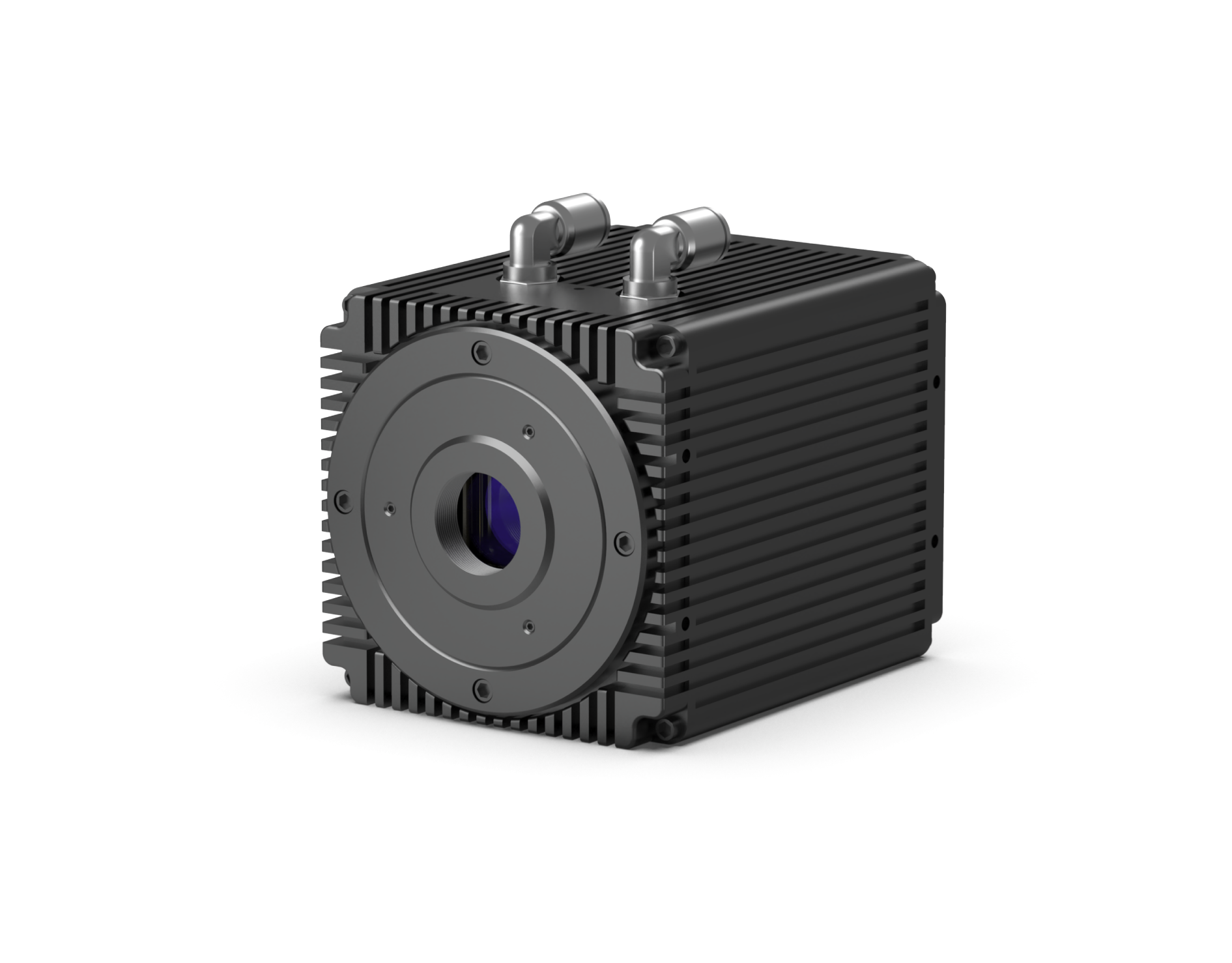

95V2

Dhyana 95 V2

Classic 11 µm BSI sCMOS Camera

Pixel Size: 11 µm, suitable for Nyquist sampling with 60×–100× high-NA objectives.
Sensor Size: 32 mm Large FOV, ideal for high-throughput imaging systems.
Full Well Capacity: 100 ke⁻, supporting high dynamic range measurements.
Calibration: PRNU/DSNU correction for uniform background and precise quantification.
Interface: USB3.0 and CameraLink dual interfaces.
Cooling: Water + air cooling ensures stable measurements and reduced dark current.

Aries 6510  Tucsen scmos camera image

Aries 6510

Large-Format 6.5 µm BSI sCMOS Camera
Quantum Efficiency: Peak QE up to 95%, readout noise <0.7 e⁻, capable of single-photon measurements.
Pixel Size: 6.5 µm, suitable for Nyquist sampling with 40×–60× high-NA objectives.
Sensor Size: 29.4 mm, 10.2 MP full-resolution frame rate up to 150 fps, enabling high-throughput performance.
Interface: High-speed GigE interface, lossless data transmission, flexible cabling.
Cooling: Highly reliable cooling reduces data fluctuation and improves measurement precision.
