Overview

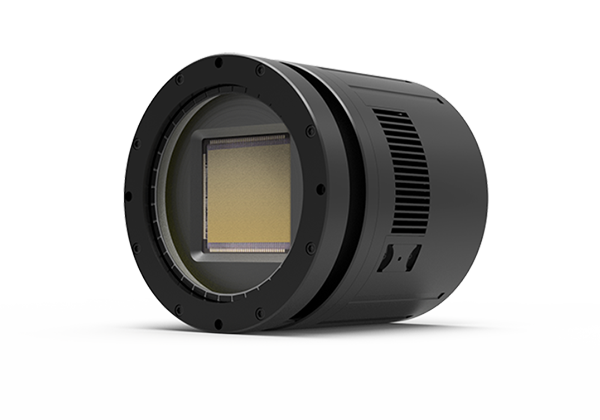

Tucsen Dhyana 6060 is a large sCMOS camera which used Gpixel sensor named GSENSE6060. It can be used in scientific research such as astronomy observation, spot analysis, quantum imaging and so on, which can realize high-speed and high dynamic imaging and quantitative analysis in a large field of view.

Large Format sCMOS

Extremely large sensor formats offer fantastic imaging efficiency - capture more than ever before in a single snapshot. High pixel counts and large sensor sizes improve your data throughput, recognition precision and provide additional context for your imaging subjects. In lens-based systems, wide viewing angles combined with fine image resolution become possible.
Large Full Well

If you need to capture bright and dim signals in the same image, high dynamic range is key - without it, either high signals are saturated, or dim signals are lost in the noise. With large full well capacity, the maximum signal that can be detected without saturation is increased, extending dynamic range. High dynamic range cameras are also capable of measuring finer intensity changes for applications requiring high accuracy and reliability of measurement.
CXP Interface Drives Speed

Leveraging the world's leading interface standard for high-speed imaging, you can keep up with dynamic imaging subjects. CoaXPress offers very high speed and precision data transmission, with the simplicity and long cable lengths of coaxial cable.

Specification >

Model: Dhyana 6060
Sensor Type: FSI sCMOS
Sensor Model: Gpixel GSENSE6060
Color/Mono: Mono
Array Diagonal : 86.8 mm
Resolution: 36MP, 6144(H) x 6144(V)
Pixel size: 10μm x 10μm
Effective Area: 61.4mm x 61.4mm
Peak QE: 72%@550nm
Frame Rate: 44fps@12-bit STD; 19fps@12-bit HDR; 14fps@14-bit STD
Full-Well Capacity: 123ke-
Dynamic Range: 91dB
Shutter Type: Rolling
Readout Noise: 3e-(Median)
Exposure Time: 7μs-300s
DSNU: 1.5e-
PRNU: 0.2%
Cooling Method: Air & Liquid
Max. Cooling: Air: -35℃，Liquid: -45℃
Cooling Temperature: Air: (Ambient at +20 ): -15°C; Liquid: -25°C@20°C
Dark Current: Air: 0.25e-/pixel/s; Liquid: 0.15e-/pixel/s
Data Interface: CoaxPress 2.0
Binning: 2x2, 4x4
ROI: Support
Timestamp Accuracy: 1μs accuracy
GPS: Support
Trigger Mode: Hardware & Software
Output Trigger Signals: Exposure, Global, Readout, High level, Low level
Trigger Interface: SMA
Data Bit Depth: 12bit, 14bit, 16bit
Optical Interface: User-customization
Power Supply: 12V/10A
Power Consumption: ＜100W
Dimensions : φ160mmx164mm
Weight: ~4kg
Software: Samplepro/MAXIMDL/Labview/Matlab/EPICS
SDK: C/C++/C#
Operating System: Windows/Linux
Operating Environment: Working: Temperature -35~45℃/Humidity 0~95%;
Storage: Temperature -35~60℃/Humidity 0~95%
