2026/06/19In our everyday experience, light appears smooth, continuous, and stable,whether from the Sun, a laser, or even the lamps in a room. However, light exists as discrete packets of energy known as photons at the microscopic level.
As scientific imaging approaches its physical limits, many applications must work with only a few photons. This is known as the photon-limited regime.
Under these conditions, imaging systems must extract meaningful information from signals that are both extremely weak and inherently random.
As a result, single-photon detection technology has become an essential foundation for next-generation scientific instruments, quantum research, and advanced manufacturing systems.
The Biggest Challenge in Single-Photon Imaging: Separating Signal from Noise
In applications such as quantum optics, single-molecule fluorescence, astronomy, and ultra-low-light microscopy, each pixel may receive only a few photons. While these signals can still be detected, their amplitude becomes comparable to the camera's own noise.

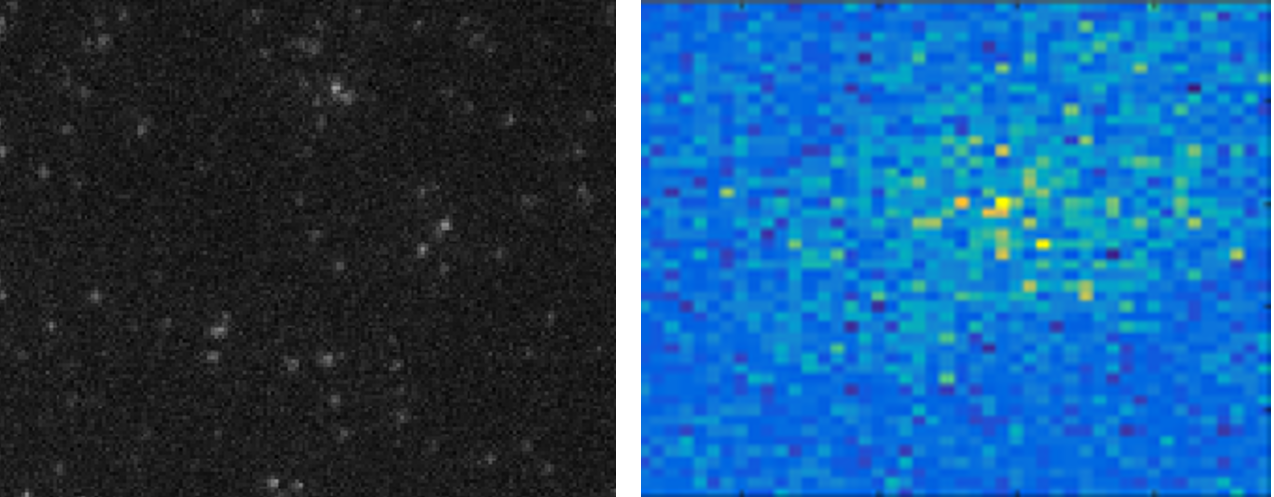

Figure 1 Single-molecule fluorescence signal(left) and Single-atom-level discrete fluorescence bright spots(right)
As a result, the challenge is no longer simply collecting more light. The real difficulty lies in separating genuine photon events from the noise introduced by the imaging system itself.
This shift changes how camera performance is evaluated. Instead of focusing solely on signal strength, researchers increasingly care about how much noise the camera adds to the measurement. In photon-limited imaging, accuracy depends less on signal amplification and more on effective noise control.
Why Ultra-Low Noise Matters in Single-Photon Imaging

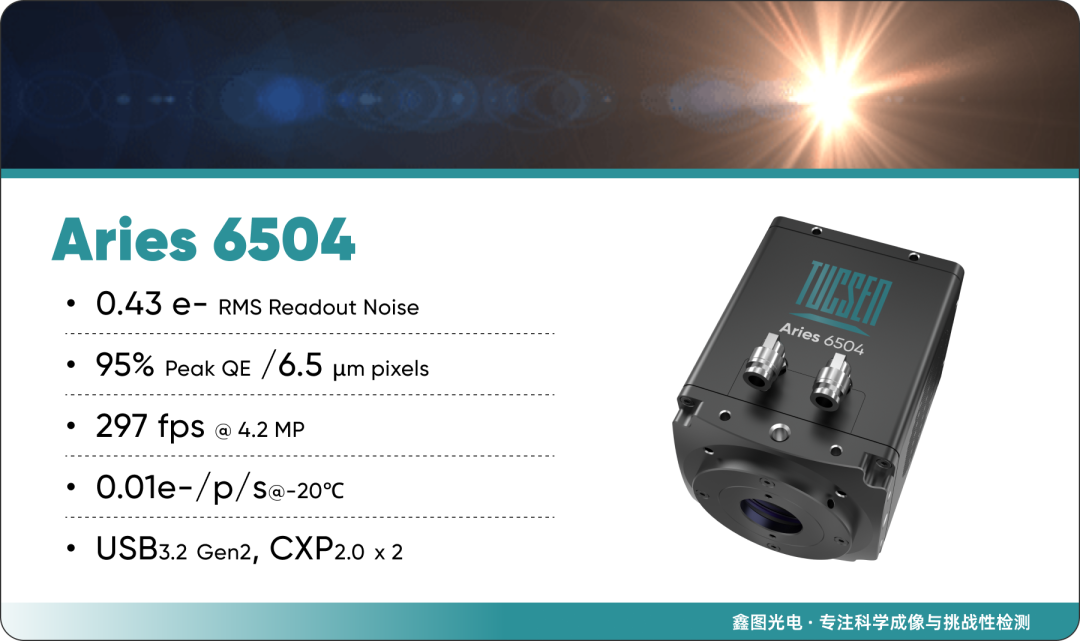

Figure 2 Aries 6504 Single-Phonton Imaging
As camera read noise approaches the single-photon level, the dominant source of uncertainty gradually shifts from the camera electronics to the statistical nature of light itself. At this point, measurement accuracy is no longer limited by the detector, but by shot noise, which represents the fundamental fluctuation of photon arrival.
This transition is what makes single-photon imaging possible. Rather than artificially amplifying weak signals, modern low-noise scientific cameras are designed to preserve the original photon information with minimal additional uncertainty.
So, researchers can recover photon distributions more reliably and perform quantitative measurements with greater confidence.
Evolution of Single-Photon Detection Technology
Single-photon detection has evolved from simple event detection to high-speed spatial and temporal imaging.
Stage 1: Single-Point Photon Detection
Representative technologies include:
• Photomultiplier Tubes (PMTs)
• Single-Photon Avalanche Diodes (SPADs)
These devices answer a fundamental question:
Was a photon detected?
Their picosecond-scale timing resolution makes them indispensable for:
• Fluorescence lifetime measurements
• Photon counting experiments
• Fundamental quantum physics research

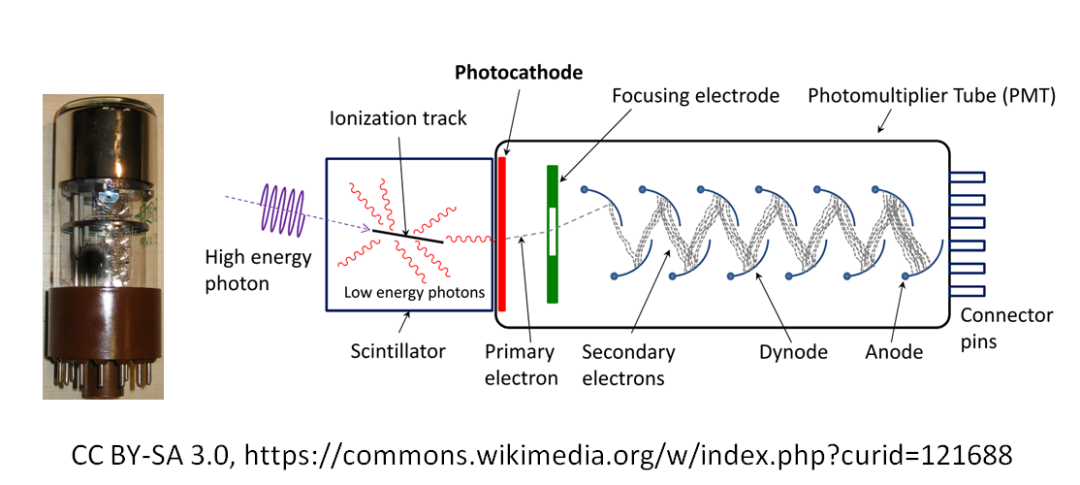

Figure 3 PMT technology architecture
Limitation: Neither PMTs nor SPADs inherently provide spatial information. Reconstructing images requires mechanical scanning systems, limiting their ability to capture dynamic processes.
Stage 2: Single-Photon Area-Scan Imaging
As research shifted from isolated photon events to dynamic imaging, two major technological routes emerged.
First Generation: Signal Amplification Technologies
ICCD and EMCCD cameras amplify weak signals before readout, enabling two-dimensional imaging under extremely low-light conditions.
Limitations
Although highly sensitive, amplification-based technologies suffer from:
• Excess statistical noise
• Reduced linearity
• Limited frame rates
• Lower quantitative accuracy
Consequently, they are better suited to static imaging rather than high-speed quantitative measurements.
Second Generation: Direct Photon Resolution with Ultra-Low-Noise CMOS
Advances in CMOS technology introduced a new approach based on back-illuminated scientific CMOS (BSI sCMOS) sensors.

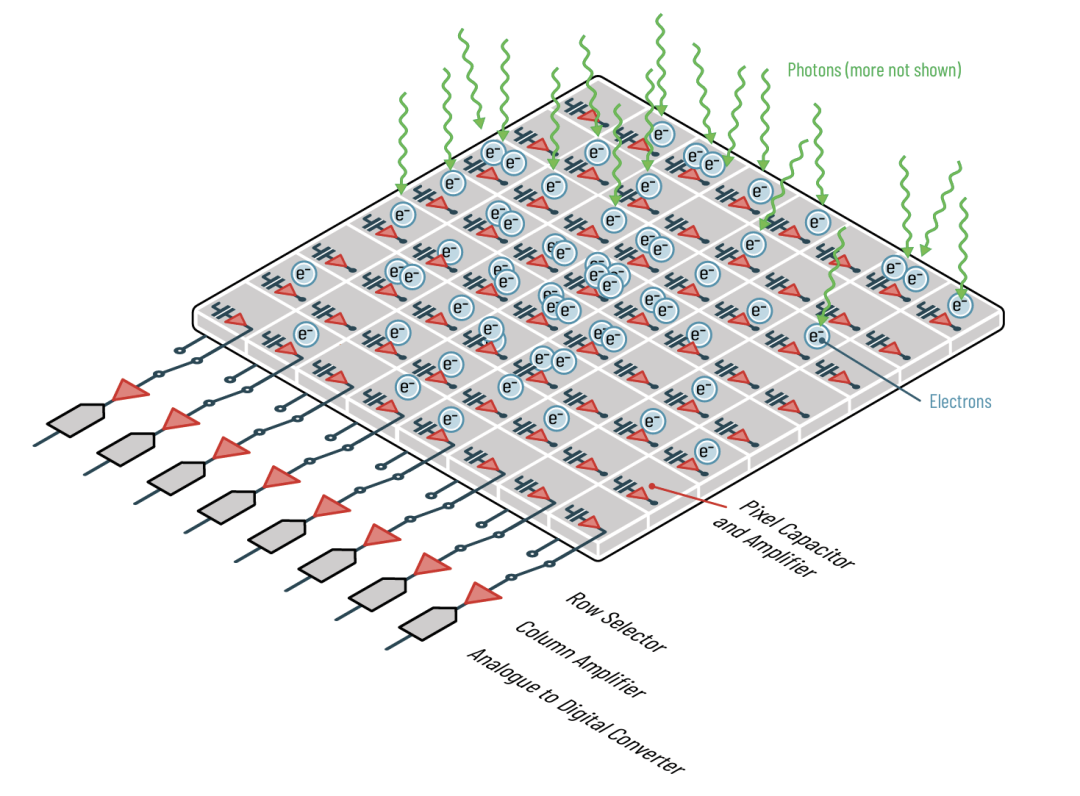

Figure 4 CMOS technology architecture
What should consider when choosing a single-photon camera？
Many users misunderstand what "single-photon sensitivity" actually means because single-photon cameras remain specialized instruments.

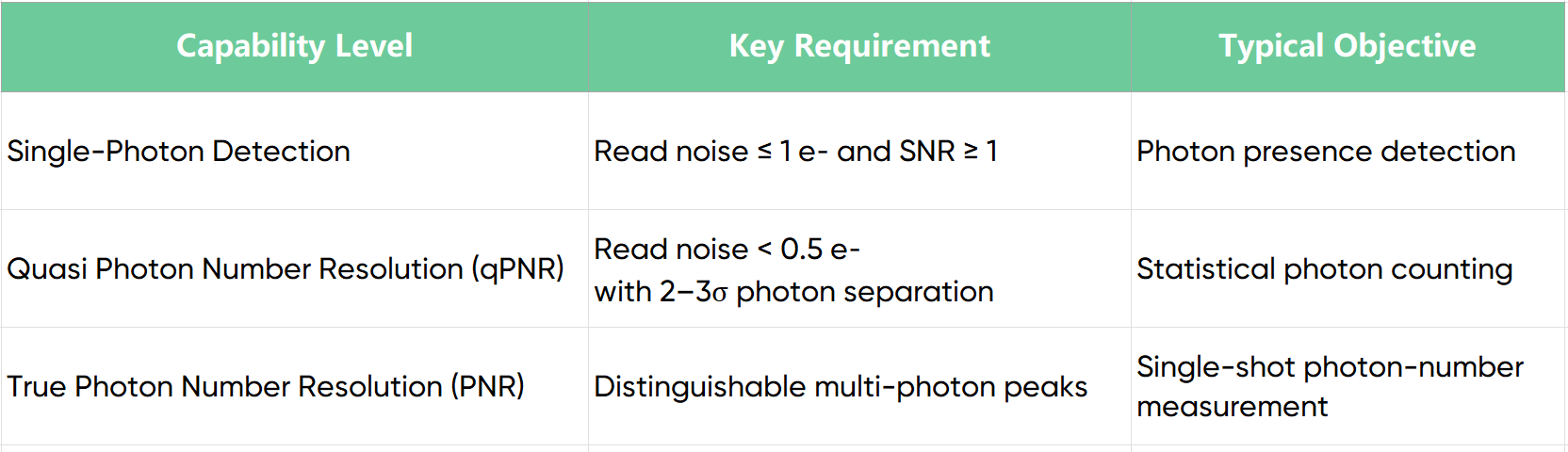

What defines single-photon sensitivity in scientific cameras?
What defines single-photon sensitivity in scientific cameras?
Performance differences are not determined solely by a noise number.

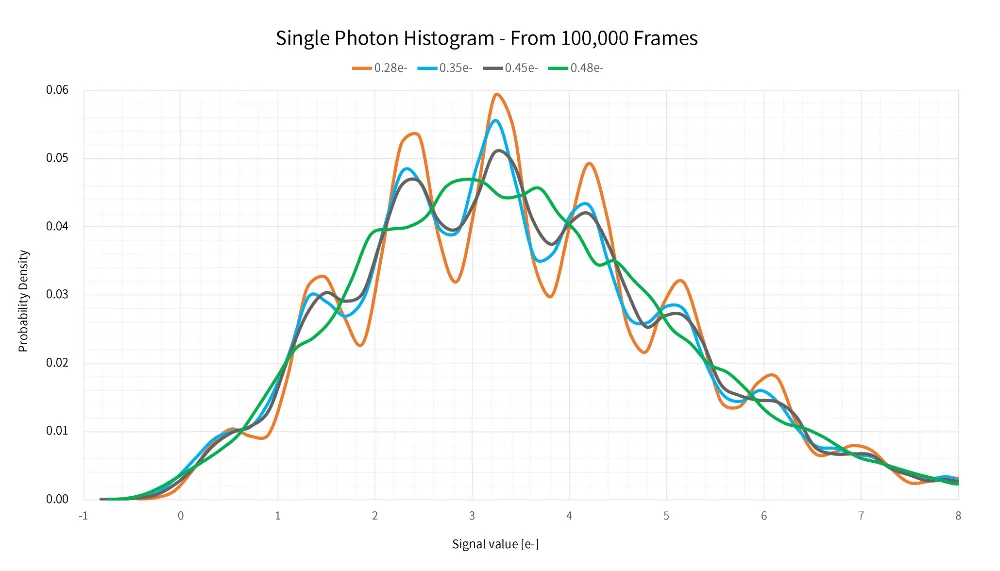

Figure 5 Tucsen Aries 6504 Pro Single Photon Statistical Histogram
The key question is whether the system can statistically distinguish photon distributions.
Most low-noise EMCCD and sCMOS cameras currently operate within the single-photon detection and qPNR regimes.
True photon-number-resolving capability generally requires specialized technologies such as superconducting nanowire single-photon detectors (SNSPDs), which are still largely confined to laboratory environments.
Does lower read noise always improve quantitative performance in scientific cameras?
Not necessarily.
Read noise determines whether photon signals can be detected, but it does not define overall imaging quality.
Once imaging enters the photon-limited regime, multiple factors become equally important:
1. Quantum efficiency (QE)
2. Pixel architecture
3. Frame rate and temporal resolution
4. System linearity
5. Photon collection efficiency
For dynamic imaging applications, the number of photons collected within a given time interval directly determines signal-to-noise ratio and information completeness.
Can sensor specifications fully represent scientific camera performance?
No.
The sensor establishes the theoretical performance ceiling, but actual image quality depends on the entire imaging chain:
1. Photon detection
2. Analog signal processing
3. Data transmission
4. Thermal control
5. Image reconstruction
Under photon-limited conditions, even small errors can become amplified.
Therefore, cameras built around the same sensor can exhibit significantly different real-world performance.

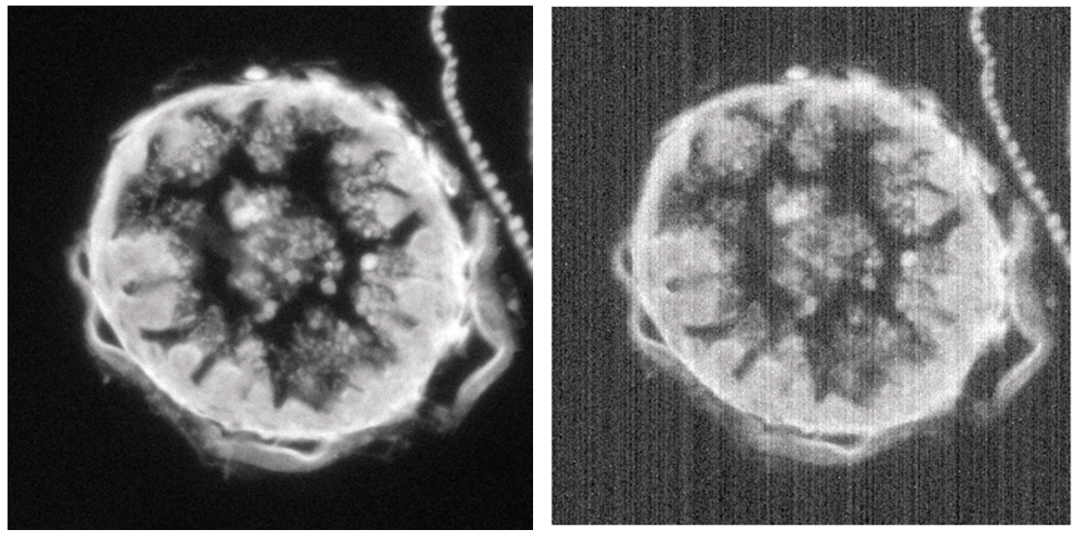

Figure 6 Comparison of actual images from scientific cameras using the same sensor
Tucsen Aries 6504 Series-From Extreme Sensitivity to Quantitative Imaging
The Tucsen Aries 6504 Series is designed not merely as a high-sensitivity camera, but as an engineering platform for reliable Single-Photon Imaging.
Its architecture enables imaging systems to evolve from simple detection toward:
1. Quantitative analysis
2. Image reconstruction
3. High-speed measurements
4. Long-term stability
Engineering Levels of Single-Photon Performance
Aries 6504 Pro optimized for:
• Ultra-high sensitivity
• High frame rates
• Wide dynamic range
• Frontier scientific research
Typical applications include:
• Quantum optics
• Single-molecule localization microscopy
• Photon-level quantitative imaging
Aries 6504 designed for:
• Dynamic imaging systems
• High-throughput instruments
• Industrial scientific applications

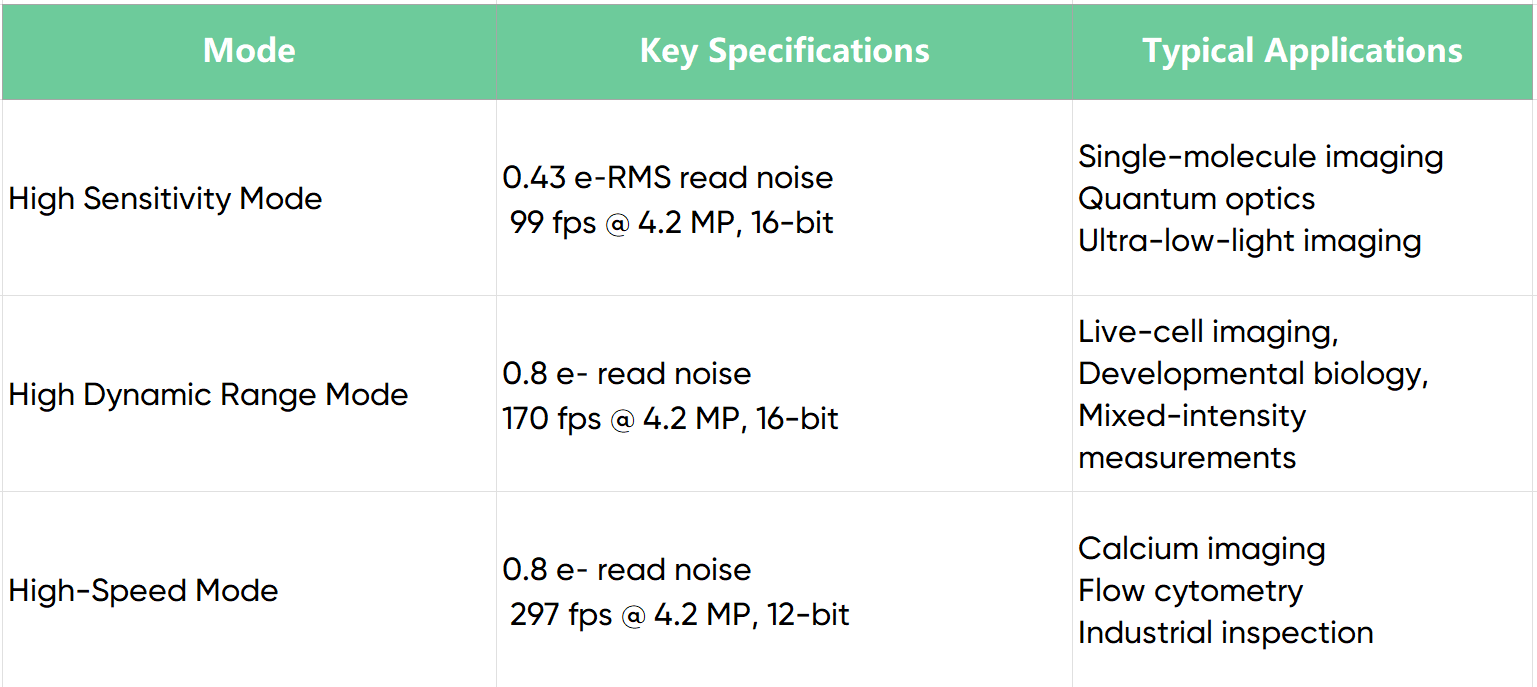

Three Optimized Readout Modes
Figure 6 Comparison of actual images from scientific cameras using the same sensor
System-Level Linearity Ensures Quantitative Imaging Accuracy
Accurate photon measurement requires more than sensitivity.
Tucsen implements a full imaging chain architecture—from signal acquisition to image output—combined with precision thermal management and high-reliability cooling syst

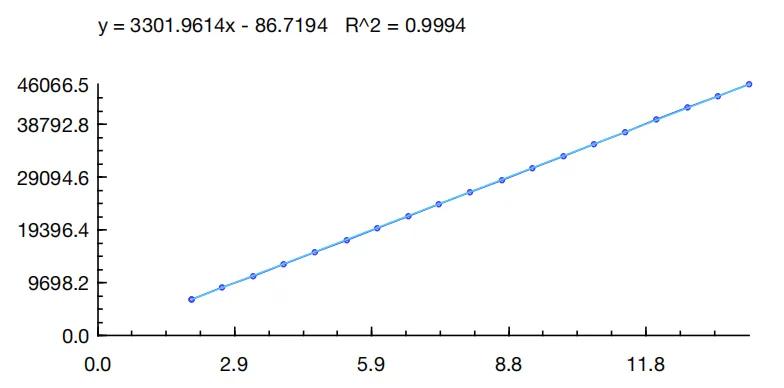

Figure 7 The photoresponse curve of Aries 6504 measured by Tucsen Optoelectronics Laboratory (99.94% linearity)
This ensures:
• Long-term stability
• Minimal drift
• Consistent photon-to-signal mapping
• Reliable quantitative analysis
Measured linearity of the Aries 6504 reaches 99.94%, supporting demanding scientific experiments and reproducible results.
Long-Term Reliability for OEM and Industrial Use
Long-term reliability is equally critical beyond specifications.
Tucsen validates every camera through dedicated reliability laboratories and rigorous factory calibration procedures.
Key advantages include:
• Individual performance calibration and test reports for every camera
• Mean Time Between Failures (MTBF) exceeding five years
• Standard two-year warranty coverage
• Custom reliability verification services for specialized projects
Conclusion
As scientific imaging moves toward the photon limit, the challenge shifts from collecting more light to extracting more truth from fewer photons.
Modern single-photon cameras, particularly ultra-low-noise BSI sCMOS cameras, are enabling researchers to move beyond simple detection and toward accurate, high-speed, and fully quantitative imaging.
The Tucsen Aries 6504 Series represents this transition, combining single-photon sensitivity with the stability, linearity, and engineering robustness required for next-generation scientific discoveries.
FAQ
1. What is a single-photon camera?
A single-photon camera is a scientific imaging device designed to detect extremely weak light signals where only a few photons are available per pixel. It operates in photon-limited conditions and focuses on minimizing read noise to enable reliable photon detection and quantitative imaging.
2. How does a single-photon camera work?
A single-photon camera works by reducing electronic read noise to a level comparable to or below photon-generated signal levels. This allows the system to distinguish real photon events from background noise and perform quantitative analysis of weak optical signals.
3. What is the difference between single-photon imaging and low-light imaging?
Low-light imaging refers to general weak illumination conditions, while single-photon imaging operates at the physical limit where individual photon events can be resolved and statistically analyzed.
4. Does lower read noise always mean better imaging performance?
Not necessarily. While low read noise improves photon detection, overall imaging performance also depends on quantum efficiency, dynamic range, frame rate, and system-level linearity. Learn more about the True Limits of Signal-to-Noise Ratio
5. What is shot noise in scientific imaging?
Shot noise is the fundamental statistical fluctuation of photon arrival. In single-photon imaging, it becomes the dominant noise source once electronic noise is sufficiently reduced.
6. What is the difference between EMCCD and sCMOS in single-photon imaging?
EMCCD cameras use electron multiplication to amplify weak signals, while modern low-noise sCMOS cameras rely on direct detection with improved read noise, higher dynamic range, and better linearity for quantitative imaging.
7. Why is system-level linearity important in scientific cameras?
System-level linearity ensures that detected signals maintain a consistent relationship with incoming photon linearity, which is essential for accurate quantitative imaging and reproducible scientific measurements.
